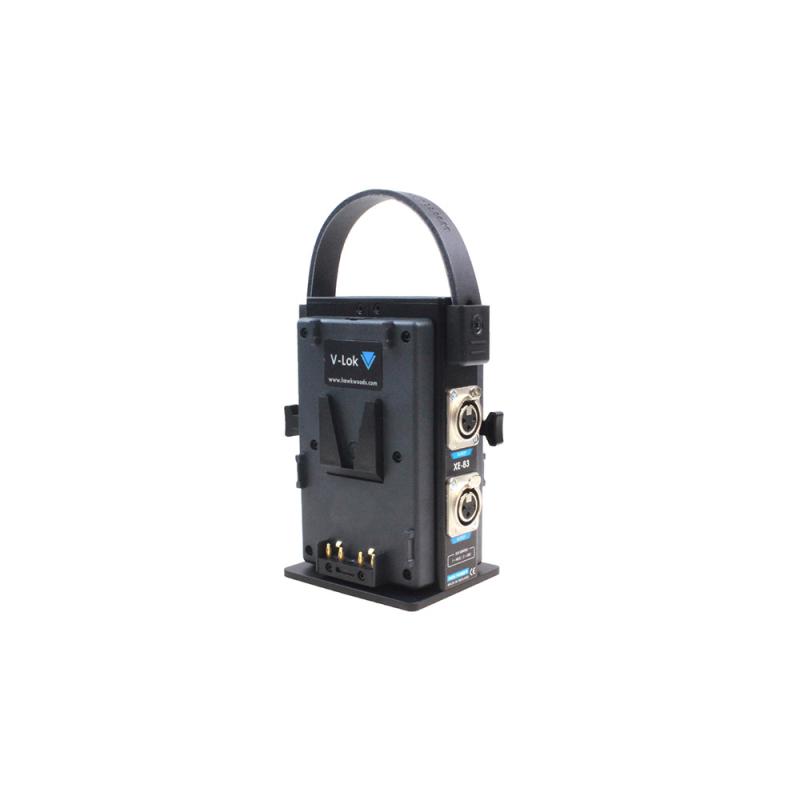

V-Lok Dual Docking Adaptor 2x XLR 3-pin 24V

The XE-83 dual adaptor from Hawk Woods is wired in series and requires two V-Lok batteries combining the voltage which in-turn is stepped down to 24v (200w) via the 2x XLR 3-pin outputs. The adaptor supports the high performance contacts which are only benefitted from when used in conjunction with the High Performance V-Lok range VL-90H, VL-150H, VL-175H which allows the user to draw a continuous 15A.

The XE-83 is ideal for users who wish to run high-powered equipment/lighting up to 200w.
The adaptor is finished with a soft leather carry handle, nylon hanging cord and a 1/4" BSW for mounting to clamps/stands.

Note: You will only see the full benefit of the adaptor when all four contacts are married up with the four High performance battery contacts.

Technical specifications

Quantity: 1

Compatibility: Hawk-Woods VL-90H Battery / VL-150H Battery / VL-175H Battery

Power Source: Battery (Not Included)

Power I/O: 2x XLR 3-Pin Output

Operating Current: 12 A

Maximum Power Output: 200 W (24 VDC)

Mounting: 1x 1/4"-20 Thread

Color: Black

Material of Construction: Plastic, Leather (Strap)

Dimensions: 6.1 x 4.5 x 3.1" / 15.5 x 11.5 x 8 cm

Weight: 1.6 lb / 716 g

Package Weight: 0.78 kg

Box Dimensions (LxWxH): 23.6 x 12.4 x 8.6 cm

Limited 1-Year Manufacturer Warranty

Included Items

Hawk-Woods XE-83 V-Mount Dual Docking Power Adapter
