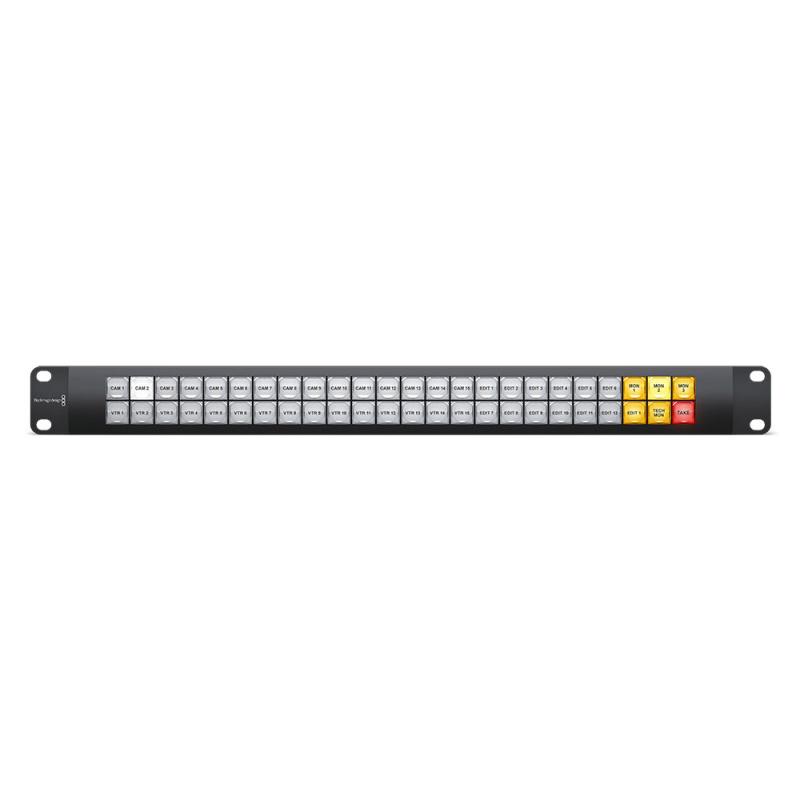

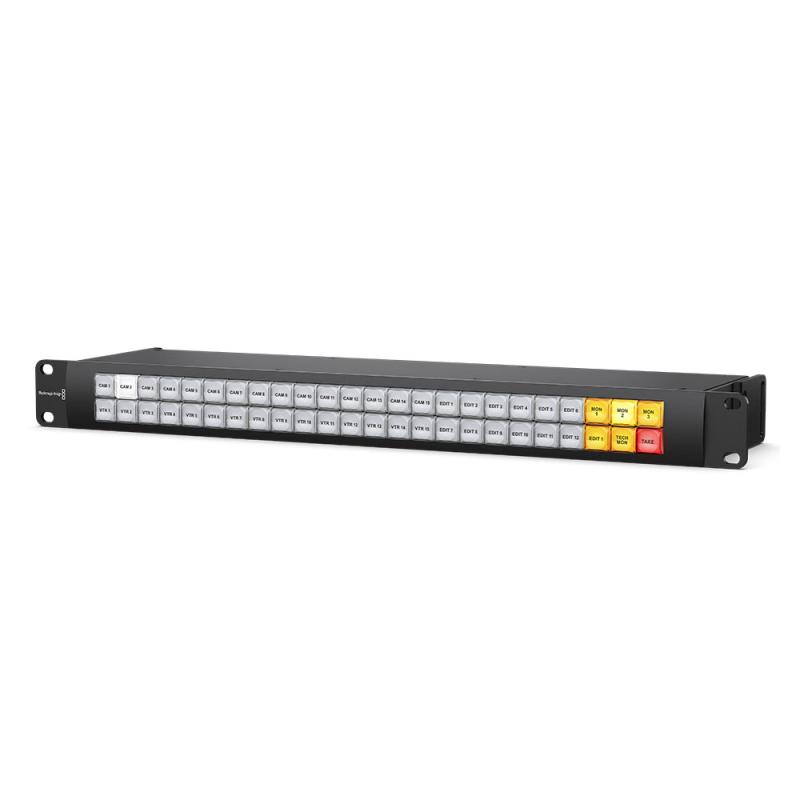

When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Plus Videohub Smart Control Pro can be configured to be a Videohub or 2110 NMOS controller. Powers via DC or the Ethernet connection!

Technical specifications

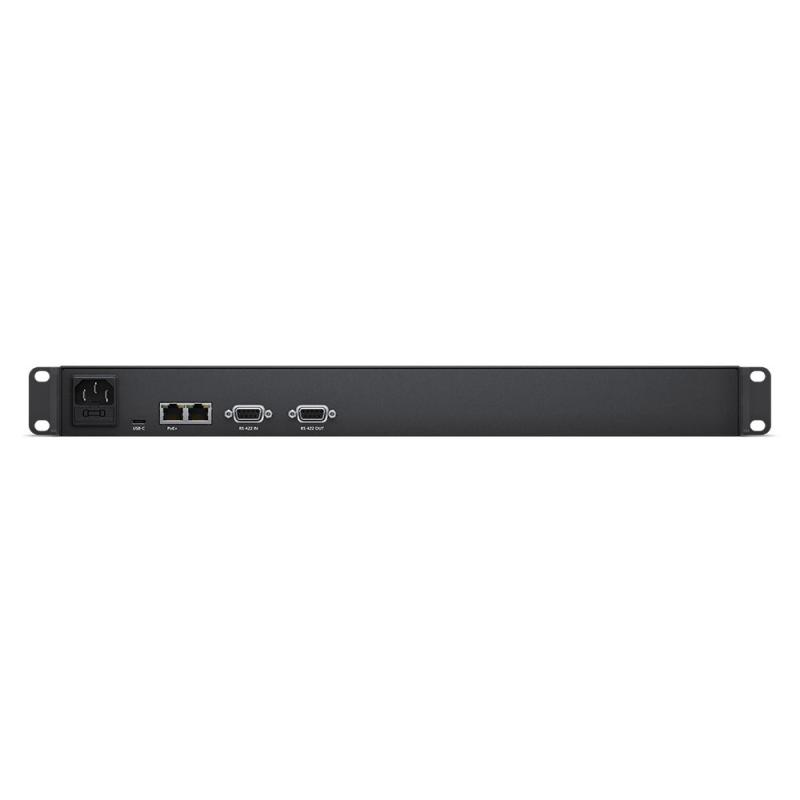

Connections

• Ethernet: RJ45 Ethernet In and Out. Power over Ethernet (PoE) supported on Ethernet In only.
• RS-422: In and Out (future implementation).
• Computer Interface: USB-C for configuration and software updates.

Control & Configuration

• Macro Capability: Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.
• Hardware Control: 48 programmable buttons and RJ45 Ethernet for remote router control over IP networks.
• Button Configuration: Free configuration software for Windows and Mac via USB 2.0 High Speed (480 Mb/s).

IP Video Compliance

• IEEE 1588-2008 (PTP v2)
• ST 2059-1
• ST 2059-2
• NMOS IS-04 Discovery and Registration v1.3.2
• Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver Capabilities

Software & Operating Systems

• Software Updates: Internal software upgrades via the included firmware updater over USB.
• macOS: Ventura 13.0, Sonoma 14.0 or later.
• Windows: Windows 10 (64-bit) and Windows 11.

Power

• Power Supply: Internal 100–240 V AC.
• Power Fail Protection: Button configurations and router communication are preserved and restored instantly after power loss. Configurations can also be saved for later recall.

Physical Specifications

• Installation: 1 RU rack mount.
• Depth: Less than 3 inches.
• Storage Temperature: -20°C to 45°C (-4°F to 113°F).
• Relative Humidity: 0% to 90% non-condensing.

Included

• Videohub Smart Control Pro

Warranty

• 1-Year Limited Manufacturer's Warranty.
