Aputure INFINIBAR PB3 (EU Version)

Aputure INFINIBAR PB3 (EU Version)

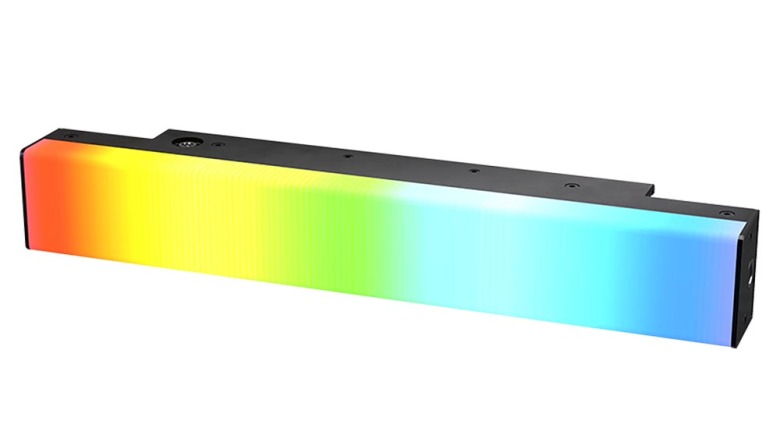

The INFINIBAR Pixel Bar is Aputures first RGBWW full-color LED pixel bar. Featuring 24 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB3 is a 1-foot (30cm) pixel bar that excels in building and creating unique, colorful designs that bring scenes to life in new and exciting ways.


The INFINIBARs most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors1 to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility. The pixel bars infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB3s 24 RGB pixels.

Key Features

- 1-Foot (30cm) 6.5W RGBWW Full Color LED Pixel Bar
- 24 Individual Pixels (Lighting Zones)
- Infinite Blending Design to Reduce Visible Gaps When Connecting Multiple Lights
- 10 Splicing Connectors: Straight, Triangle Flat, Triangle 3D, Hexagon
- Flat, Hexagon 3D, 3-Way Flat, 4-Way Flat, 6-Way Flat, Square Flat, Square 3D

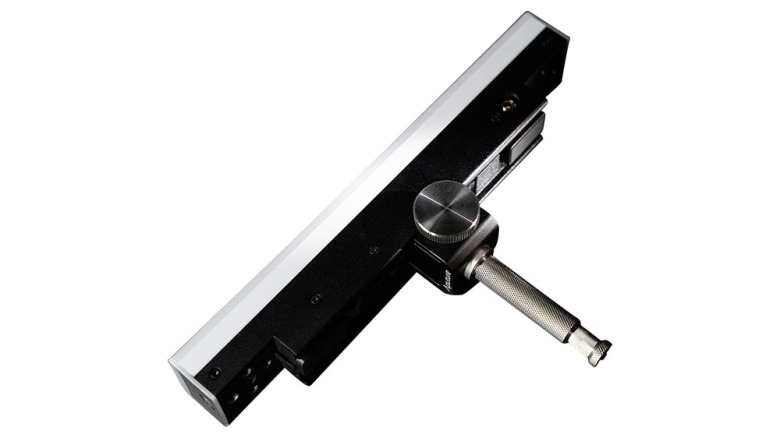

- Share AC Power Over Multiple INFINIBARs w/ Splicing Connectors Mounting: INFINIBAR Clamp (Baby Pin) & Neodymium Magnets, 1/4-20in Screw Mount
- Frosted Diffusion Layer for Smoother Light and Reduced Glare
- Approx. 120 Min Battery Life With Built-In Battery (14.8Wh)
- Smart Battery Life Mode: Preset Timer at 2/4/6/8 Hour Increments 0-100% Brightness Control at 0.1% Increments
- Fully Tunable CCT from 2,000K-10,000K + G/M Adjustment
- CRI: +96, TLCI: +98, TM-30 Rf (Avg.) = 94, TM-30 Rg (Avg.) = 103, SSI(D56) +74, SSI(Tungsten) +85
- +90% of Colors within Rec.2020 Color Space
- Advanced HSI with White Point CCT Control
- Industry-standard xy (CIE 1931), RGB, 300+ Gel Presets
- Multiple Control Methods: Sidus LinkŠ App, DMX/RDM via USB-C, LumenRadio CRMX
- 23 Built-In DMX Profiles: Supports DMX Loss Behavior
- 9 Built-in System FX: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
- 7 Built-In Pixel FX: Color Fade, Color Cycle, One Pixel Chase, Two Pixel Chase, Three Pixel Chase, Rainbow, Pixel Fire
- Supports SidusProŠ FX: Including Manual FX, System FX, Picker FX, Magic Program, and Music FX
- Save up to 10 Custom FX and 10 Music FX
- Frequency Selection to Reduce Flicker

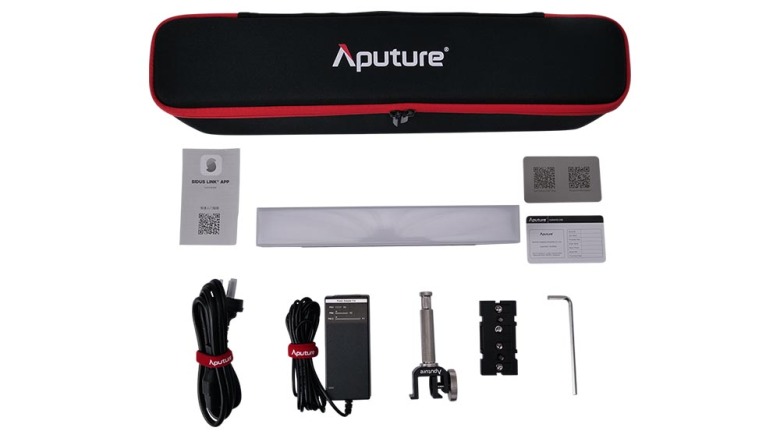

- Included Carrying Case
- Optional Light Control Accessories: 1) Softbox. 2) 45degr. Slip-On Light Control Grid
* INFINIBAR Includes 1 Straight Connector. Remaining 9 Connectors Sold Separately

** Aputure Active USB-C to 5-Pin DMX In & Out Adapter Sold Separately
