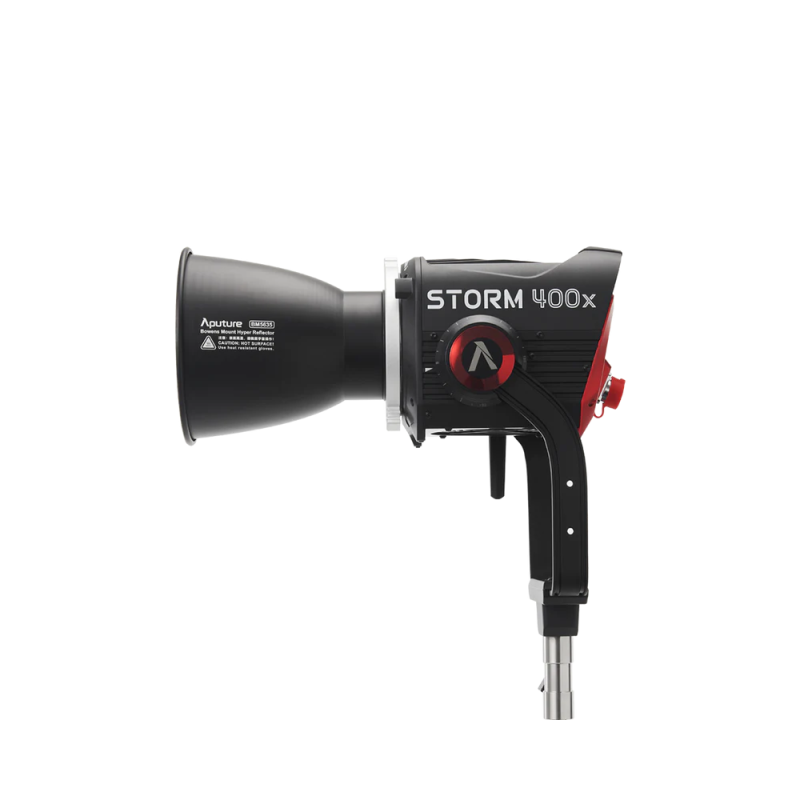

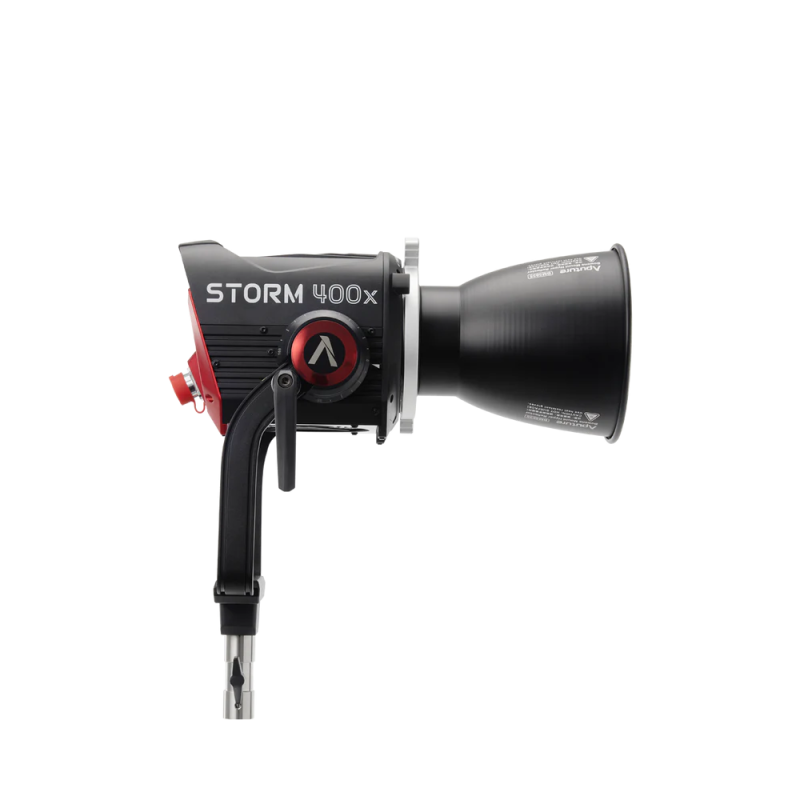

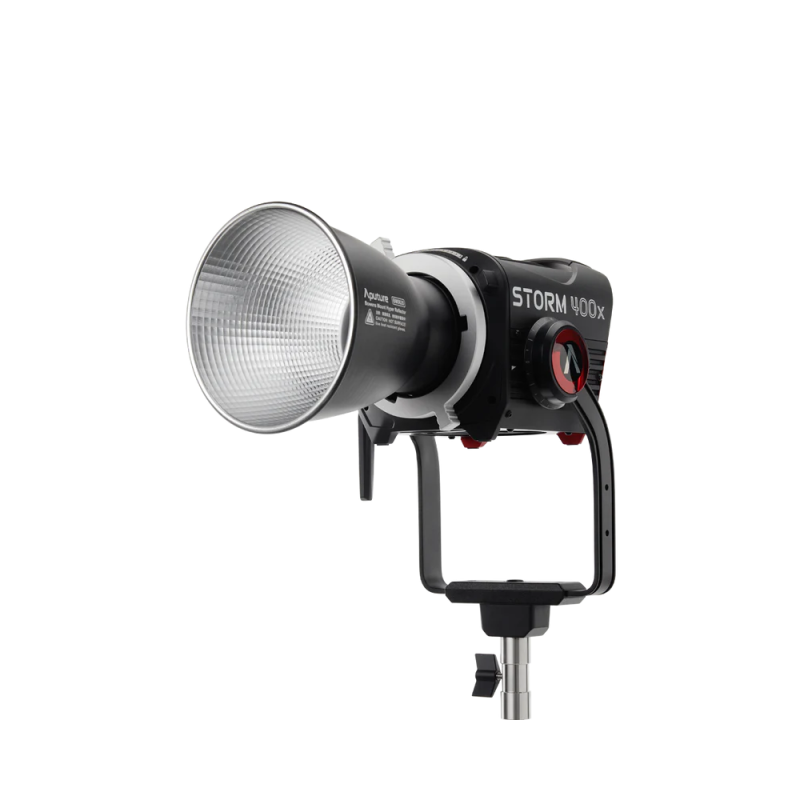

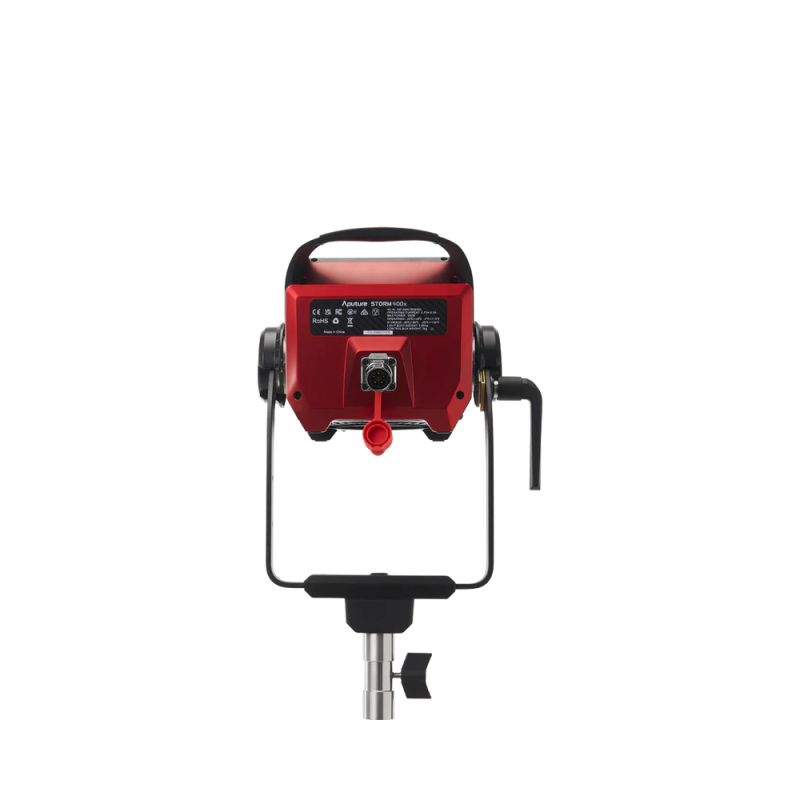

Aputure Storm 400x

The Aputure STORM 400x utilizes the BLAIR (Blue/Lime/Amber/Indigo/Red) light engine, delivering the highest quality white light and greatest +/- green adjustability of any LED technology. The BLAIR light engine's indigo emitters enhance fluorescing materials like natural daylight and tungsten sources.

The brightness of the STORM 400x matches or exceeds that of many higher wattage LED lights.

Color Tuning Control.
The revolutionary BLAIR light engine can also output saturated colors across more than 87% of Rec. 709 color gamut using Limited HSIC+ and x,y control modes. Achieve deep crimson sunsets, rich sodium vapor ambers, and subtle color effects without gels.

ProLock Locking Bowens Mount.
The ProLock Locking Bowens mount holds modifiers and optics rigidly in place. On STORM lamps, even the heaviest modifiers stay secure and properly aligned.

Technical specifications

LED lighting specifications:

     LED Chipset: BLAIR-CG

     CCT: 1,800K – 20,000K

     CRI: ≥95

     TLCI: ≥95

     SSI (Tungsten): 90

     SSI (D56): 86

     TM-30 RF (Average): 95

     TM-30 RG (Average): 100

     Pixel Count: 2 pixels

Power:

     Max Power Consumption: 1,250W

     Max Power Output: 1,000W

     AC Operating Voltage: 100V ~ 240V / 50-60 Hz

Optics:

     Native Beam Angle: 35°

     Included Flat Diffuser Beam Angle: 95°

Environmental:

     Weather Resistance Rating: IP65

     Operating Temperature: -20ºC ~ 50°C / -4ºF ~ 122°F

     Storage Temperature: -40°C ~ 80°C / -40°F ~ 176°F

Cooling:

     Cooling Method: Active (onboard fans)

     Lamp Head Fan Noise Levels Smart Mode: Variable

     Lamp Head Fan Noise Levels High Speed Mode: 40 dBa

     Lamp Head Fan Noise Levels Medium Speed Mode: 35 dBa

     Lamp Head Fan Noise Levels Silent Mode: 0 dBa

Control:

     Control Methods: On-board, Sidus Link, Sidus Link Pro, DMX512-A, LumenRadio CRMX, Art-Net/sACN, RDM

     Control Ports: 1x 5-pin DMX in, 1x 5-pin DMX out, 2x locking Ethernet ports

     Firmware Upgradeable: Sidus Link, Sidus Link Pro, USB-A

     Wireless Range (Bluetooth & CRMX): ≤100m / ≤328.1ft

Dimensions:

     Lamp Head (without Yoke): 69.1 × 38.8 × 13.6cm (27.2 × 15.3 × 5.4in)

     Lamp Head (with Yoke): 82.9 × 56.6 × 15.4cm (32.7 × 22.3 × 6.1in)

     Flat Diffuser: 68.4 × 37.5 × 4.0cm (26.9 × 14.8 × 1.6in)

     Rolling Hard Case (Optional): 94.1 × 37.2 × 66.4cm (37.1 × 14.7 × 26.2in)

Weight:

     Lamp Head (without Yoke): 16.25kg / 35.83lbs

     Removable Yoke with Junior Pin: 2.40kg / 5.29lbs

     Flat Diffuser: 2.00kg / 4.45lbs

     AC Power Cable (6m): 0.80kg / 1.76lbs

     Rolling Hard Case (Optional) - Empty: 13.54kg / 29.79lbs

     Rolling Hard Case (Optional) - Fully Loaded: 34.96kg / 76.92lbs

Included items

STORM 400x Lamp Head

STORM 400x Control Box

Lightning Clamp

35° Angle Hyper Reflector

STORM 400x Head Cable (3m)

AC Power Cable (6m)

Bowens Mount Protection Cover

Soft Carrying Case
