Base Kit for Canon C80

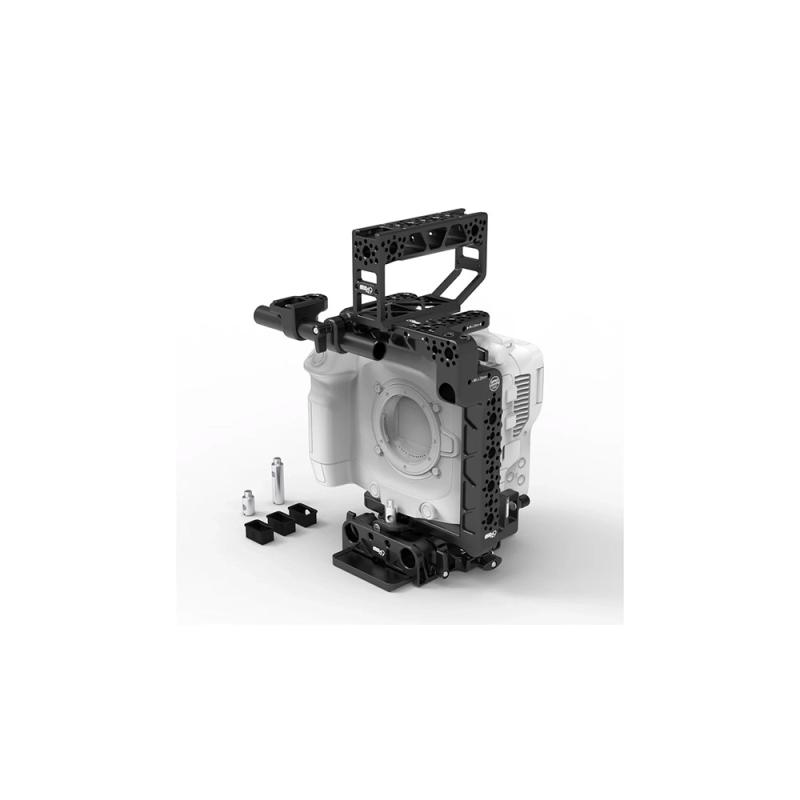

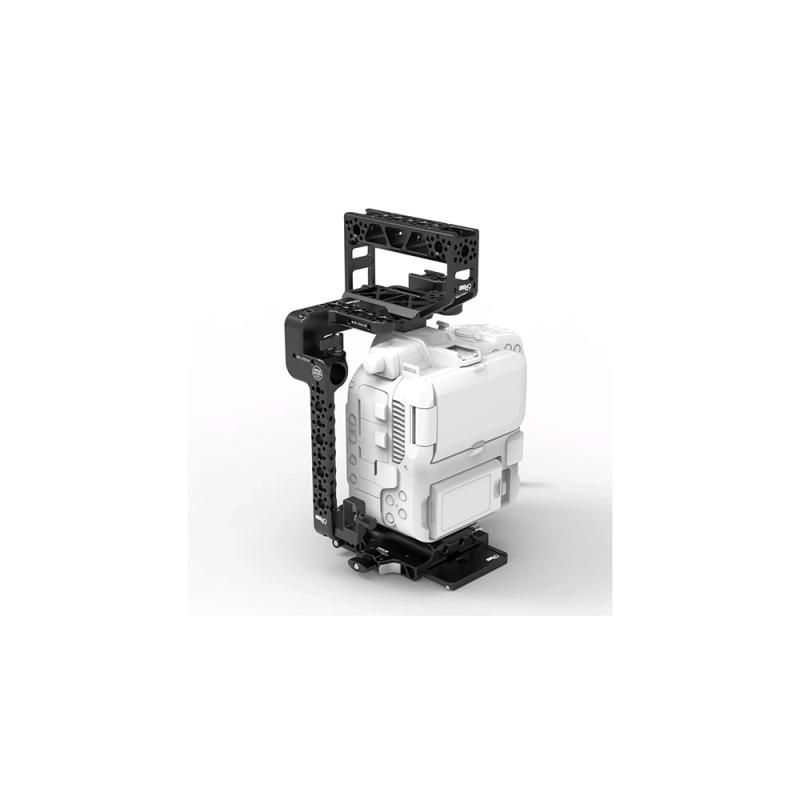

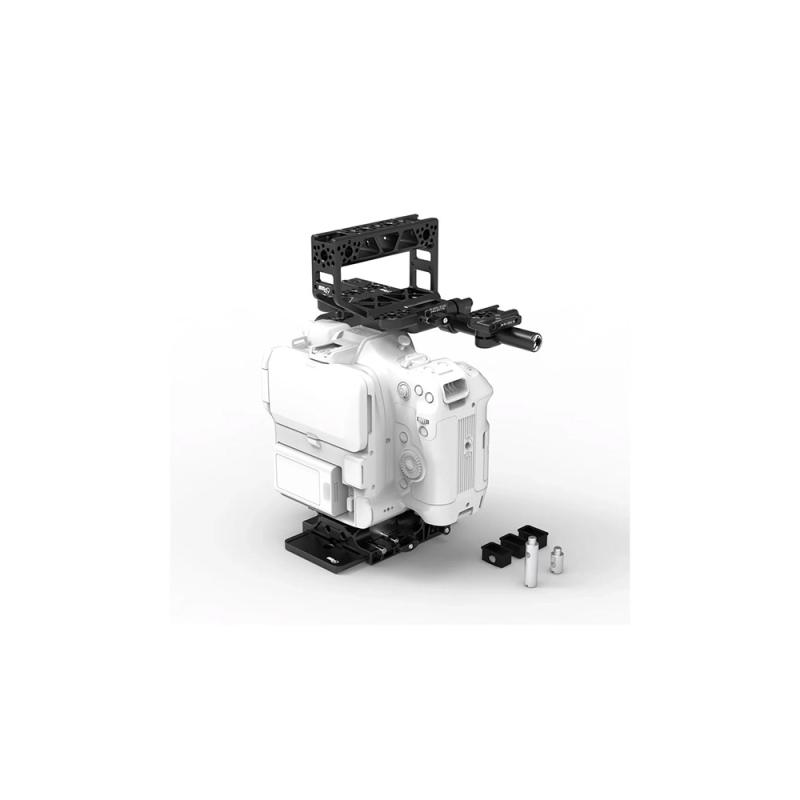

Base Kit for Canon C80 is an accessory kit that includes:

Upper Cage for Canon C80
Form fitting cage with 1/4-20, 3/8-16, and M4x20mm threaded holes in several places along with a shoe mount and 15mm rod clamps. ARCA Swiss dovetail slot on top accepts included ARCA Top Handle and Top Plate. The 15mm accessory rod provides additional mounting for optional AB-4 XLR adapter. Lower ARCA Swiss dovetail attaches to included baseplate and lens support adapter attaches to 3rd party lens adapters like Metabones, etc.

Baseline 15mm LW (Core)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.

Baseline ARRI Dovetail
Baseline ARRI Dovetail is the lower ARRI mounting plate that interfaces with the Baseline Core.

ARCA Top Handle
Sliding camera handle that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus two hot shoe mounts.


Add on the optional Audio Breakout AB-4 (Canon C70/C80) which adapts the camera's two mini XLRs to standard, full-size XLRs.

Technical specifications

Support Type: Cage

Grip Type: No

Camera Compatibility: Canon EOS C80

Included Rods: Yes

Battery Plate Type: No

Accessory Mounting: Top

3x Anti-Twist 1/4"-20 Female Thread

5x Anti-Twist 3/8"-16 Female Thread

Side

4x Anti-Twist 1/4"-20 Female Thread

4x Anti-Twist 3/8"-16 Female Thread

5x M4 Female Thread

Front

1x Anti-Twist 1/4"-20 Female Thread

1x Anti-Twist 3/8"-16 Female Thread

2x M4 Female Thread

Camera Mounting: 3/8"-16 Male Screw

Tripod Mounting: Built-In Arca-Type Plate

Rod Ports: Front

3x 15 mm Rod Port

Shoe Mounting: 1x Cold Shoe

Cable Clamp: 1x HDMI Clamp

Package Weight: 0.574 kg

Box Dimensions (LxWxH): 20.32 x 18.92 x 5.97 cm

Included items

MID49 Upper Cage for Canon C80

Top Accessory Rod

Hot Shoe/Accessory Thread/Rosette Adapter

2 x Lens Adapter Support

3 x Rubber Cap

Limited 1-Year Manufacturer Warranty

MID49 Baseline Core 15mm LWS Baseplate (0" Platform Height)

MID49 Baseline ARRI-Compatible Dovetail Mounting Plate

MID49 Arca Top Handle
