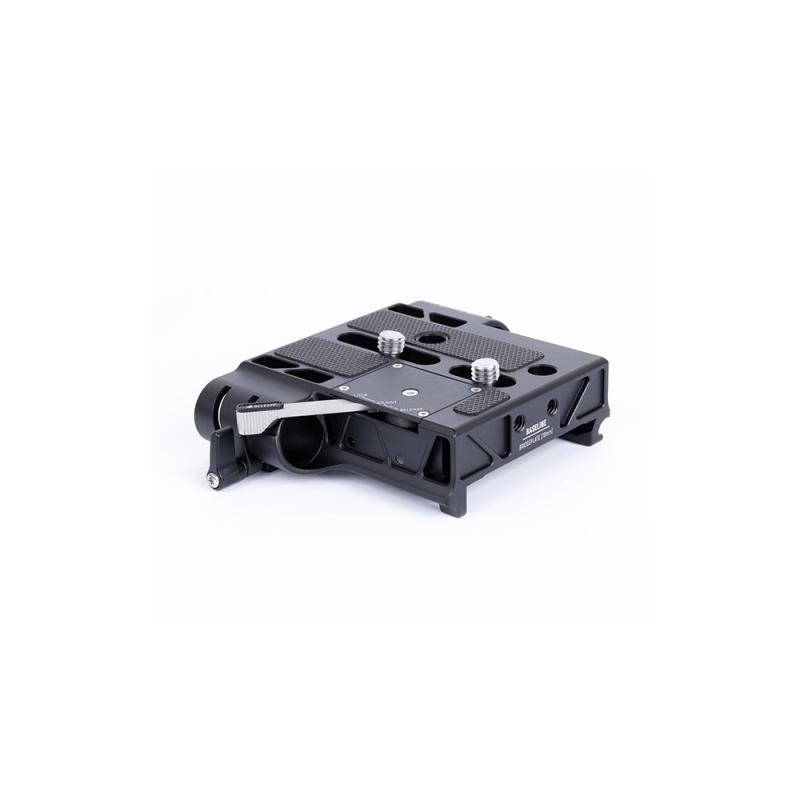

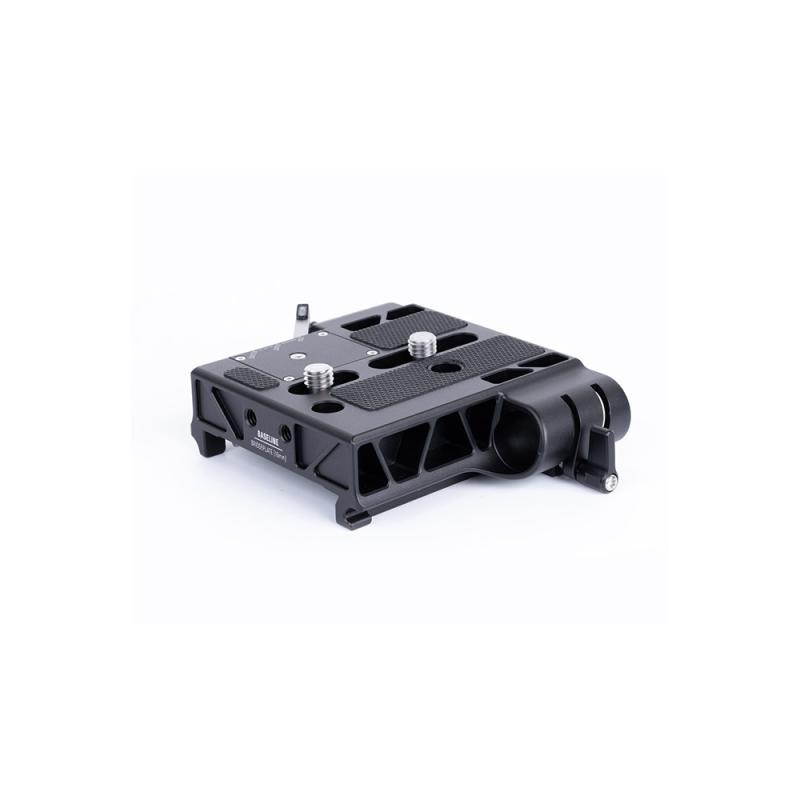

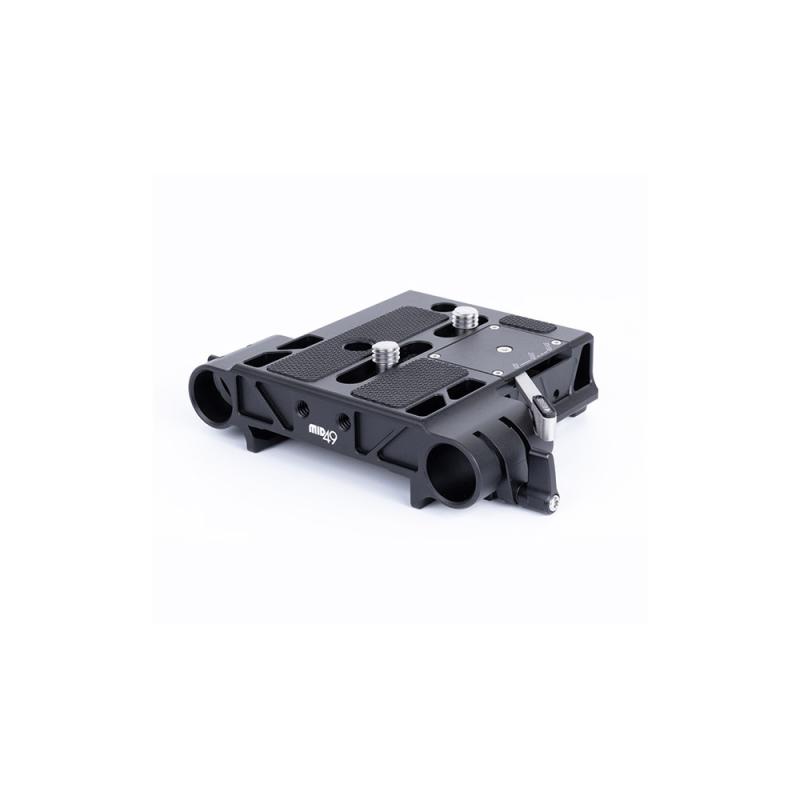

Baseline Bridgeplate 19mm

Baseline Bridgeplate (19mm) is a quick-release, ARRI standard bridge plate that, when combined with Baseline 15mm LW baseplates, provides 19mm rods at the correct distance from the center of the lens.

ARRI dovetail slot on the bottom attaches to ARRI standard dovetails using a top-load locking mechanism. Unlock the lever like a traditional bridge plate, pull the safety release, then further move the lever, which allows the camera to be released vertically from the dovetail. To reattach, drop down and listen for the pop to know it has engaged. Adjust the position on the ARRI dovetail, then lock the lever.

Baseline Bridgeplates can also be installed and removed from the back of most ARRI standard dovetails.

Included (2) 3/8-16 and (2) 1/4-20 screws can be installed using the center screw channel or by two offset holes when using some ARRI brand products.

Technical specifications

Support Type: Baseplate

Grip Type: No

Rod Standard: 19 mm Studio / 104 mm Spacing

Battery Plate Type: No

Accessory Mounting: Not Specified by Manufacturer

Camera Mounting: 1/4"-20 Male Screw, 3/8"-16 Male Screw

Tripod Mounting: ARRI Dovetail Clamp

Rod Ports: 2x 19 mm Rod Port

Shoe Mounting: No

Rosettes: No

Dimensions: 6 x 3.9 x 1.3" / 153 x 100 x 32 mm

Weight: 10.4 oz / 294 g

Package Weight: 0.30 kg

Box Dimensions (LxWxH): 17.7 x 13.7 x 4.6 cm

Included items

MID49 Baseline Bridgeplate (19mm)
