Brick Bi-Color 1pc Kit

A compact and powerful variable color LED light that can withstand the elements

The Litepanels Brick builds on the legacy of the original MiniPlus which revolutionized the lighting industry. Now more robust, Bi-Color and IP-65 rated, the Brick is a perfect on-camera solution for ENG camera operators on the go or who need full spectrum lighting during wet conditions.

Key Features
Provides an all in one solution with the Brick One Light Kit.
Output is up to four times brighter than the original MiniPlus.
Incorporates new surface mount LED technology with custom optics.
IP65 rated so it can be used during harsh weather conditions.
Greater output and better color with premium selected high TLCI/CRI LEDs.

Technical specifications

Light Fixture

Item Type: 1x LED Light Panel

Included Filters: Diffusion

Included Storage Case: No

Photometrics

36° at 5600K:

                   222 fc / 2385 Lux at 3.3' / 1 m*

                   98 fc / 1060 Lux at 4.9' / 1.5 m

                    24 fc / 255 Lux at 9.8' / 3 m

                    11 fc / 115 Lux at 15.1' / 4.6 m

36° at 3200K:

                   182 fc / 1958 Lux at 3.3' / 1 m*

                   81 fc / 870 Lux at 4.9' / 1.5 m

                   19 fc / 200 Lux at 9.8' / 3 m

                    9 fc / 100 Lux at 15.1' / 4.6 m

*Standardized Measurement Calculated Internally Based on Closest Distance

Color Temperature: 3200 to 5600K

Color Modes: Daylight, Tungsten

Color Accuracy Standard: CRI 95 at 5600K, CRI 98 at 3200K

Dimming: Built-In Dimmer 0 to 100%

Cooling System: Passive

Beam Angle: 36°

Built-In Flash: No

Preprogrammed Effects: No

Umbrella Mount: No

Front Accessory Mount: Proprietary

Power Source: AC to DC Adapter (Not Included): Battery (Not Included)

Inputs/Outputs: 1x Built-In Cable (9.8' / 3 m) with D-Tap Power Input

Battery: 1x D-Tap Rechargeable (Not Included)

Input Power: 12 to 17 VDC

             100 to 240 VAC, 50 / 60 Hz

Inline Switch: No

Power Pass-Thru: No

Power Consumption: 19 W (Maximum)

Fixture Mounting: 2x 1/4"-20 Female Thread

Display: No

Environmental Resistance: Dust/Water-Resistant (IP65)

Dimensions: 7.9 x 2.8 x 2.4" / 20 x 7.1 x 6.1 cm

Weight: 1.5 lb / 680 g

Package Weight: 2.35 lb

Box Dimensions (LxWxH): 10.05 x 5.65 x 4.85"

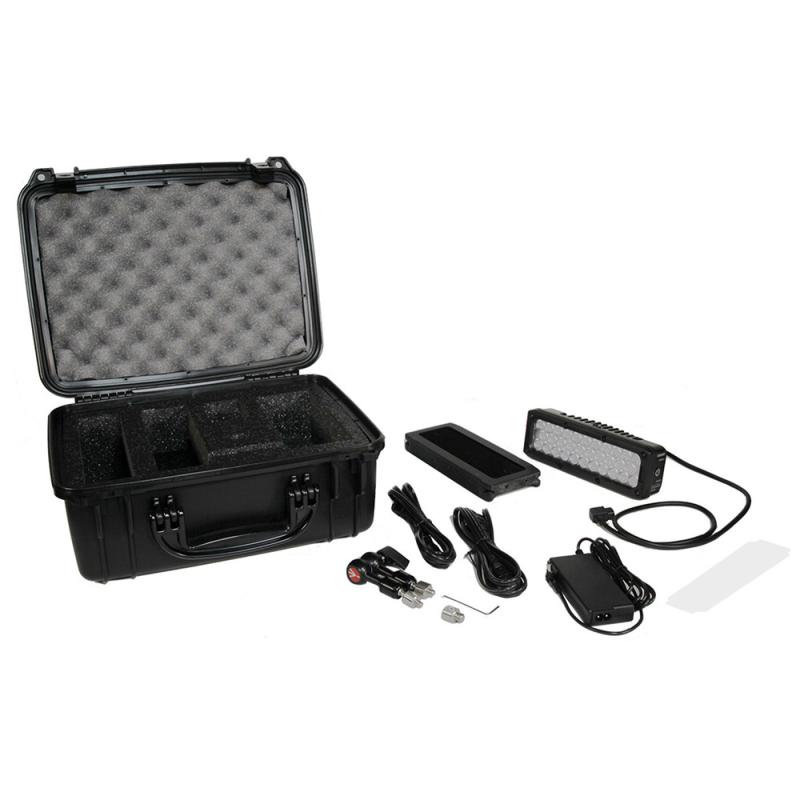

Included items

Litepanels Brick Bi-Color On-Camera LED Light

Half-White Diffusion Gel

Limited 1-Year Manufacturer Warranty

Manfrotto 244 Micro Friction Arm

1/4"-20 Stud

3/8"-16 Stud

Hex key

Limited 5-Year Manufacturer Warranty

Worldwide AC Power Supply

Honeycomb Grid

Soft Diffusion Frame

Seahorse SE520 Custom Foamed Case
