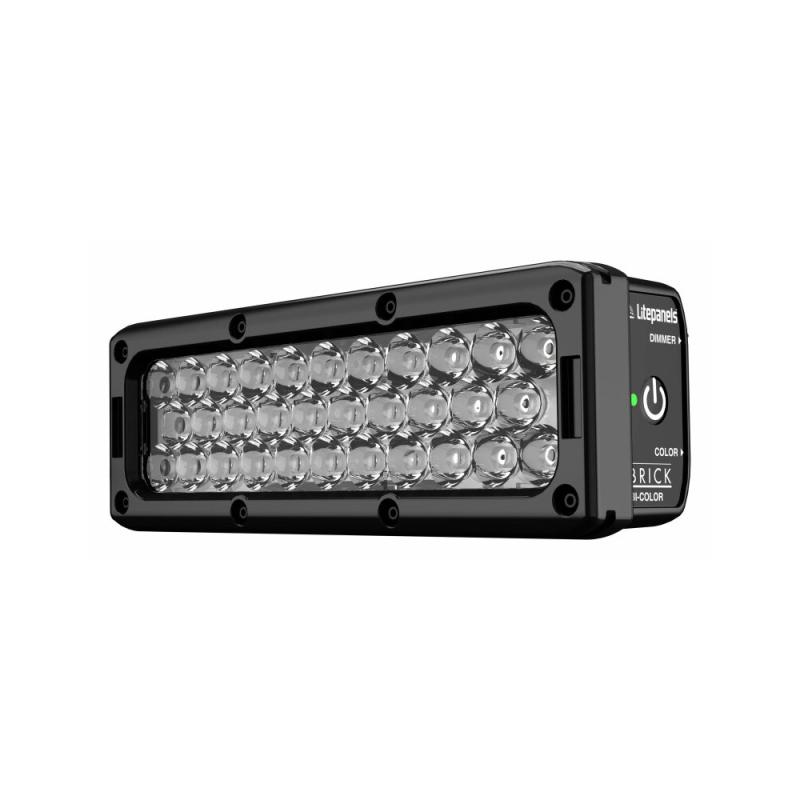

Brick Bi-Color

A compact and powerful variable color LED light that can withstand the elements.

The Litepanels Brick builds on the legacy of the original MiniPlus which revolutionized the lighting industry. Now more robust, Bi-Color and IP-65 rated, the Brick is the perfect on-camera solution for ENG camera operators on the go or needing full spectrum lighting during wet conditions.

Key Features
Output is up to 4X brighter than the original MiniPlus.
Incorporates new surface mount LED technology with custom optics.
IP65 rated so it can be used during harsh weather conditions.
Greater output and better color with premium selected high TLCI/CRI LEDs.

Technical specifications

Item Type: 1x LED Light Panel

Included Filters: Diffusion

Included Storage Case: No

Photometrics

36° at 5600K:

      222 fc / 2385 Lux at 3.3' / 1 m*

      98 fc / 1060 Lux at 4.9' / 1.5 m

      24 fc / 255 Lux at 9.8' / 3 m

      11 fc / 115 Lux at 15.1' / 4.6 m

36° at 3200K:

      182 fc / 1958 Lux at 3.3' / 1 m*

      81 fc / 870 Lux at 4.9' / 1.5 m

      19 fc / 200 Lux at 9.8' / 3 m

      9 fc / 100 Lux at 15.1' / 4.6 m

*Standardized Measurement Calculated Internally Based on Closest Distance

Color Temperature: 3200 to 5600K

Color Modes: Daylight, Tungsten

Color Accuracy Standard: CRI 95 at 5600K, CRI 98 at 3200K

Dimming: Built-In Dimmer 0 to 100%

Cooling System: Passive

Beam Angle: 36°

Built-In Flash: No

Preprogrammed Effects: No

Umbrella Mount: No

Front Accessory Mount: Proprietary

Power Source: AC to DC Adapter (Not Included), Battery (Not Included)

Inputs/Outputs: 1x Built-In Cable (9.8' / 3 m) with D-Tap Power Input

Battery: 1x D-Tap Rechargeable (Not Included)

Input Power: 12 to 17 VDC, 100 to 240 VAC, 50 / 60 Hz

Inline Switch: No

Power Pass-Thru: No

Power Consumption: 19 W (Maximum)

Mounting

Fixture Mounting: 2x 1/4"-20 Female Thread

Display: No

Environmental Resistance: Dust/Water-Resistant (IP65)

Dimensions: 7.9 x 2.8 x 2.4" / 20 x 7.1 x 6.1 cm

Weight: 1.5 lb / 680 g

Package Weight: 2.35 lb

Box Dimensions (LxWxH): 10.05 x 5.65 x 4.85"

Included items

Litepanels Brick Bi-Color On-Camera LED Light

Half-White Diffusion Gel

Limited 1-Year Manufacturer Warranty
