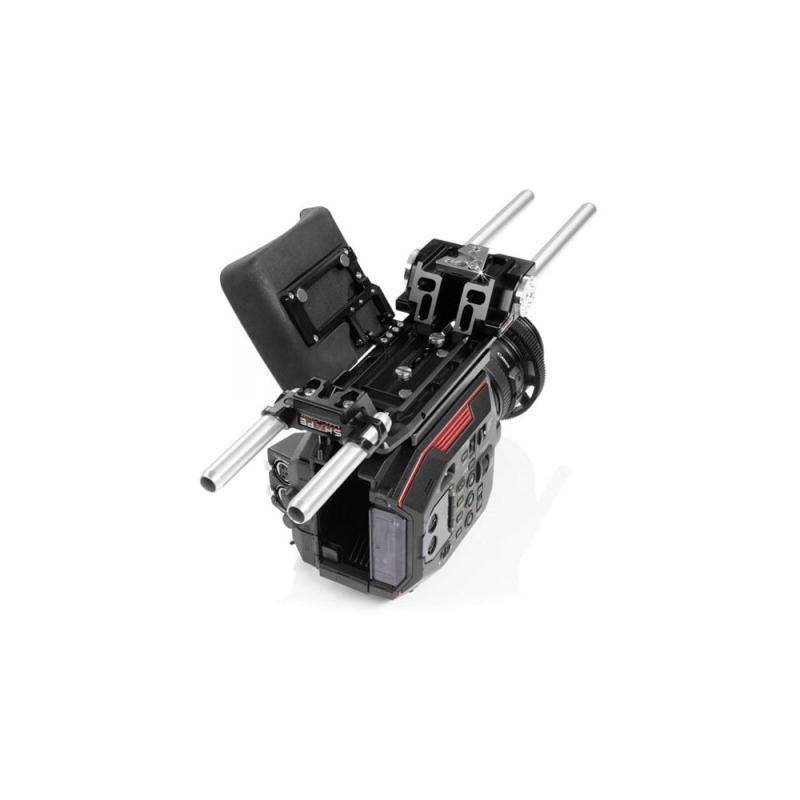

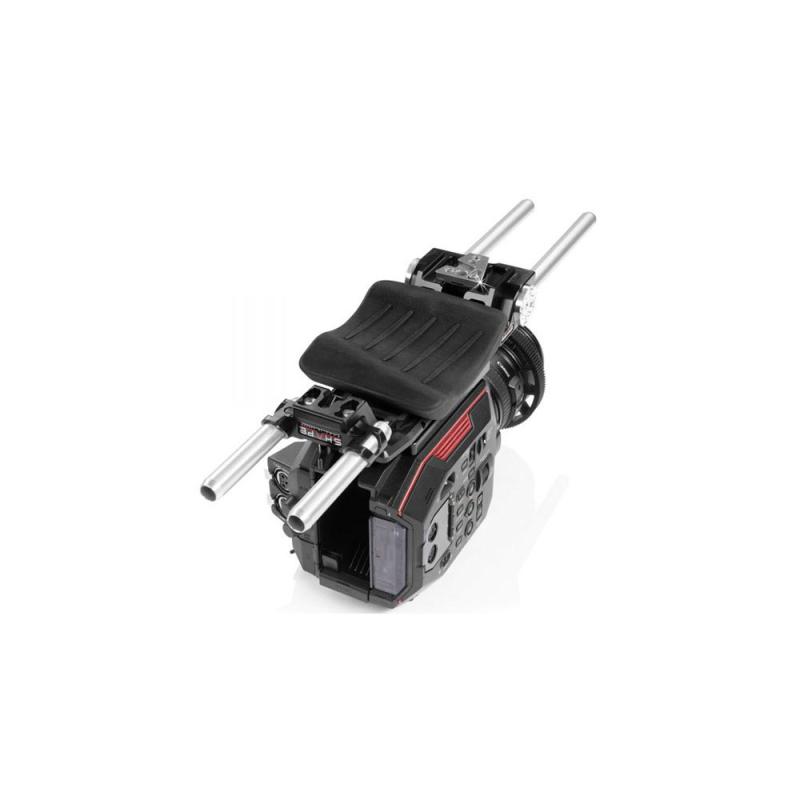

SHAPE Compact Universal Shoulder Baseplate

The compact universal shoulder baseplate (BP20) is a lighter, fixed-plate version of the VCT universal baseplate (BP10) with a magnetic bracket system that swivels the baseplate to the left for easy access to the camera screws. It includes 2 standard ARRI rosettes for handles and a standard quick release adapter compatible with most VCT tripod plates. Rubber pads on the top of the plate protect your camera. Two 15 mm lightweight rod blocks can be fixed to the front and rear of the baseplate, allowing you to install additional camera accessories. The thick gel shoulder pad keeps you comfortable on set all day long, even off the tripod. The baseplate incorporates a tool box to store your extra screws and magnetic retention for a hex key.

Key Features

Made of CNC Machined Aluminum
Bracket system with magnet let you swivel the baseplate
Match your camera’s optical center
Protective rubber pads to protect your camera
Front and rear 15 mm rod bloc system with safety ratchet knob
Come with 2 pairs of 15 mm rods (8 in, 4 in)
Designed with 2 standard Arri rosettes for handles mount
Comfortable shoulder pad made of slip-free material
Sophisticated tool box to store your extra screws and Allen key
Quick release adapter plate for VCT tripod plate mount

Technical specifications

Support Type: Shoulder Support
Grip Type: Grip Required (Not Included)
Camera Compatibility: Universal
Mounting Rod Standard: 15 mm LWS / 60 mm Spacing
Included Rods: 2x 8" / 20.3 cm 15 mm Rod, 2x 4" / 10.2 cm 15 mm Rod
Battery Plate Type: No
Accessory Mounting: 4x 1/4"-20 Female Thread, 2x 3/8"-16 Female Thread
Camera Mounting: 1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting: 1/4"-20 Female Thread, 3/8"-16 Female Thread, VCT-14
Rod Ports: 4x 15 mm Rod Port
Shoe Mounting: No
Rosettes: Sides, 2x ARRI Rosette w/ M6 Female Thread
Materials: Aluminum
Dimensions: 10 x 4.5 x 2" / 25.4 x 11.43 x 5.08 cm
Weight: 2.1 lb / 0.9 kg
Package Weight: 2.815 lb
Box Dimensions (LxWxH): 14.75 x 5.85 x 4.7"

Included items

SHAPE Compact Revolt Shoulder Baseplate
SHAPE Replacement Pad for REVOLT VCT Universal Baseplate
SHAPE 15mm Aluminum Rods (Pair, 8")
SHAPE 15mm Aluminum Rods (Pair, 4")
2 x 1/4"-20 Screw
2 x 3/8"-16 Screw
3mm Allen Wrench
Limited Lifetime Manufacturer Warranty
