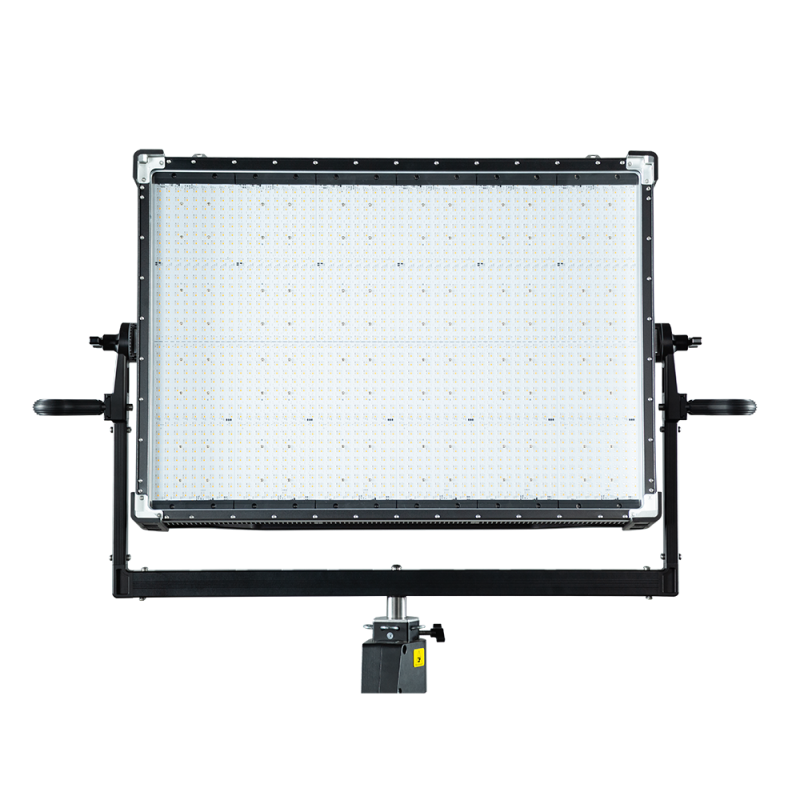

Creamsource Vortex 24 Soft Colour w/ Yoke

Meet the Vortex24S, a dynamic 2x3 lighting system tailored for those seeking expansive coverage and powerful output. Building on the foundation of the Vortex8, the Vortex24S amplifies output threefold, while its larger form factor reduces the need for multiple units and simplifies rigging, especially on Elevated Work Platforms (EWP) or Condors.

Designed with 24 directional pixel zones, the Vortex24S allows for complex lighting effects like replicating the dynamics of fire or motion, with seamless dimming across intensities all while maintaining colour accuracy, free from drift.

The Vortex24S's efficient design draws 1950W, making it compatible with standard circuits and featuring a 'House Power' mode for 15A circuits. The integration of a built-in ballast means easier storage and transport, allowing for streamlined packing in lighting carts and trucks, optimising your workflow on the go.

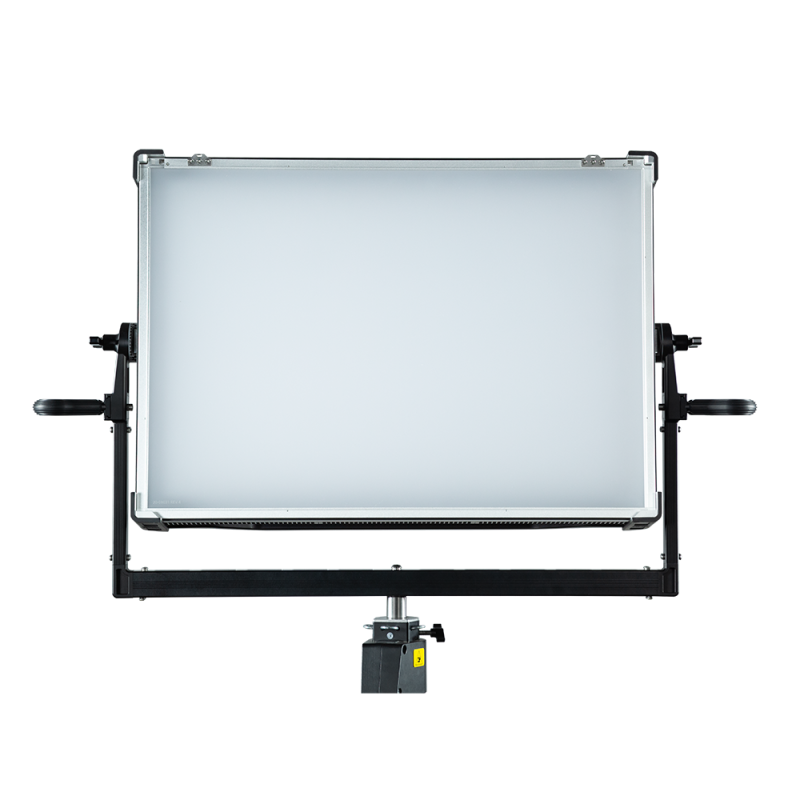

Network setup is a breeze with dual Ethernet ports and a Gigabit switch, supporting single-cable runs and efficient daisy-chaining of units. Featuring a front latch filter system for fast changes of diffusers and accessories, the Vortex24S also ships with a XWIDE Lens for instant light softening — no extra purchases necessary.

Technical specifications

Item Type: 1x LED Light Panel

Included Light Modifier: 1x Lens

Included Storage Case: No

Photometrics

110° at 3200K:

     6540 fc / 70,395 Lux at 3.3' / 1 m (Unmodified)

     727 fc / 7822 Lux at 9.8' / 3 m (Unmodified)

     262 fc / 2816 Lux at 16.4' / 5 m (Unmodified)

110° at 5600K:

     6193 fc / 66,659 Lux at 3.3' / 1 m (Unmodified)

     688 fc / 7407 Lux at 9.8' / 3 m (Unmodified)

     25 fc / 266 Lux at 16.4' / 5 m (Unmodified)

3200K:

     5101 fc / 54,912 Lux at 3.3' / 1 m (with Lens)

     567 fc / 6101 Lux at 9.8' / 3 m (with Lens)

     204 fc / 2196 Lux at 16.4' / 5 m (with Lens)

5600K:

     4867 fc / 52,386 Lux at 3.3' / 1 m (with Lens)

     541 fc / 5821 Lux at 9.8' / 3 m (with Lens)

     195 fc / 2095 Lux at 16.4' / 5 m (with Lens)

Color Temperature: 2200 to 15,000K

Color Modes: RGB, Daylight, Tungsten

Dimming: Built-In Dimmer / DMX (Continuous) 0 to 100%

Expected Lamp Life: 50,000 Hours

Beam Angle: 110°

Built-In Flash: No

Pixel Zones: 24

Preprogrammed Effects: Yes

Umbrella Mount: No

Front Accessory Mount: Proprietary

Wireless Remote Control Type: Bluetooth, Wireless DMX

Mobile App Compatible: Yes: iOS Only

App Name: Lumiair

Functionality: Remote Control

Power Source: AC Power (Cable Included)

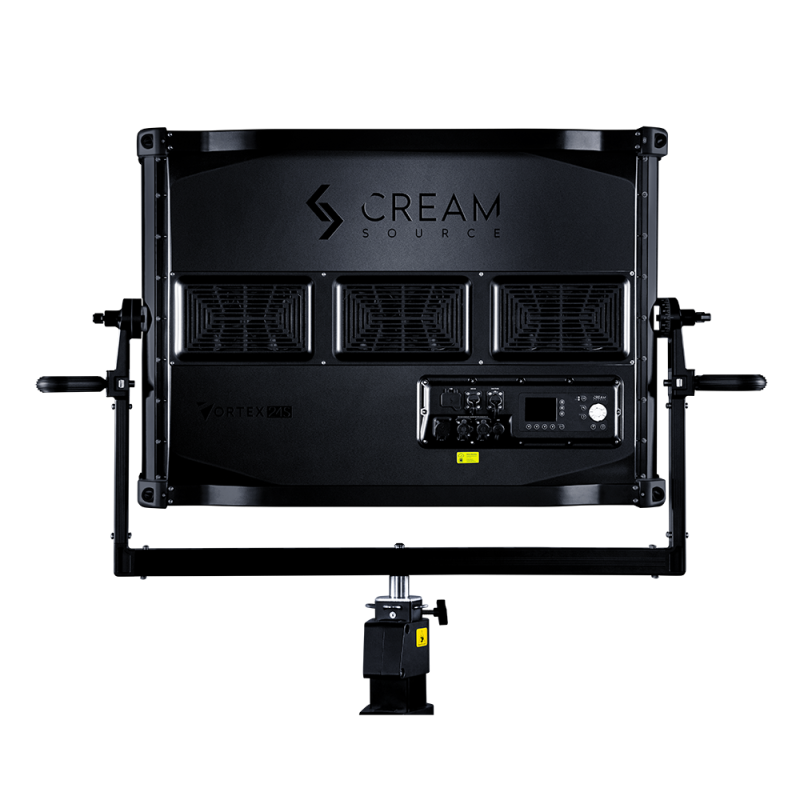

Inputs/Outputs

     1x powerCON TRUE1 AC Power Input (110 to 240 VAC, 50 / 60 Hz)

     1x XLR 5-Pin DMX Input

     1x Unspecified Remote Input

     2x etherCON/RJ45 Network Input/Output

     1x USB-A Service Input/Output

Input Power: 110 to 240 VAC, 50 / 60 Hz at 17.7 A

Included Adapter / Cable: Yes

Inline Switch: No

Power Consumption: 1950 W

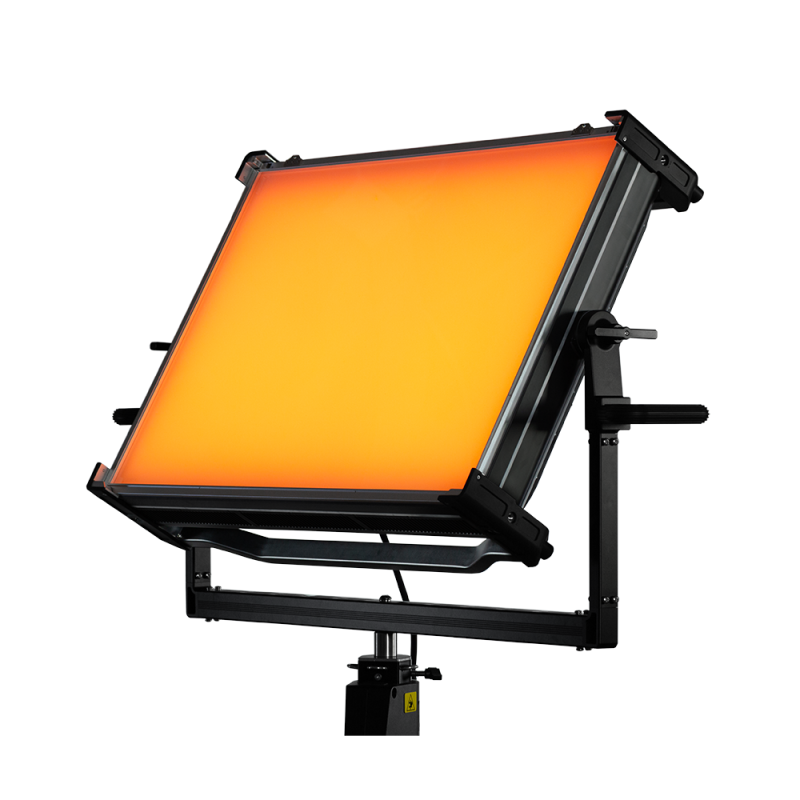

Yoke Type: Manually-Operated Yoke

Fixture Mounting: 8x 3/8"-16 Female Thread, Proprietary

Display: LCD

Environmental Resistance: Dust/Water-Resistant (IP65)

Operating Conditions: Up to 104°F / 40°C

Certifications: CE, CSA, ETL, FCC, RCM, UKCA

Materials: Aluminum, Polymer

Dimensions

     38.2 x 27 x 10.2" / 97 x 68.6 x 25.9 cm (Fixture without Yoke)

     52.5 x 38.2 x 10.2" / 133.3 x 97 x 25.9 cm (Fixture with Yoke)

Weight

     92.4 lb / 41.9 kg (Fixture without Yoke)

     108.8 lb / 49.4 kg (Fixture with Yoke)

Included items

Creamsource Vortex24 Soft RGB LED Light Panel

Yoke

XWIDE Lens

Power Cable

Safety Cable

Limited 3-Year Manufacturer Warranty

Registration Extension: 2-Year
