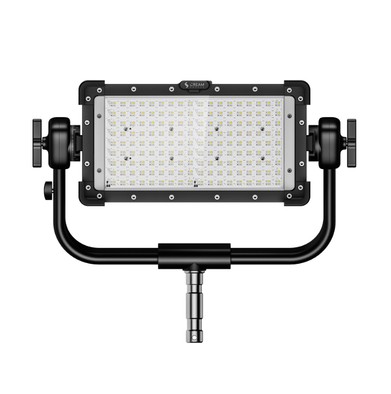

Creamsource Vortex2 Soft 160W Colour Including Yoke

The Vortex2 and Vortex2 Soft bring the Vortex platform into a compact and highly adaptable form factor. Designed to move easily between setups, both fixtures combine the same CreamOS workflow, RRGBBW colour engine, rugged IP65 construction, and colour consistency found across the Vortex family.

The Vortex2 delivers directional punch through a native 20° beam while the Vortex2 Soft provides broad, even coverage through a native 110° spread. Fixtures this size tend to move around more once they arrive on set, and that’s where the V2 Series starts to make a lot of sense.

Multiple rigging options and a wide range of lenses and modifiers allow the V2 Series to take on different roles from one setup to the next.

Technical specifications

Item Type: 1x LED Light Panel

Included Storage Case: No

Photometrics at 3.3' / 1 m:

    110° at 3200K: 543 fc / 5850 Lux (Unmodified)

    3200K: 382 fc / 4110 Lux (with Lens)

    110° at 5600K: 513 fc / 5520 Lux (Unmodified)

    5600K: 365 fc / 3930 Lux (with Lens)

Color Temperature: 2200 to 15,000K

Color Modes: RGB, Daylight, Tungsten

Color Accuracy Standard: TLCI 95, CRI 95

Dimming: Built-In Dimmer / DMX 0 to 100%

Front Accessory Mount: Proprietary

Wireless Remote Control Type: CRMX, Bluetooth

Power Source: AC Power (Cable Included), Battery (Not Included)

Battery: 1x Battery Power Station (Not Included)

Input Power: 48 VDC at 3.3 A, 100 to 240 VAC, 50 / 60 Hz at 1.6 A

Power Consumption: 160 W

Fixture Mounting: 4x 3/8"-16 Female Thread, 1x 1-1/8" Stud (Via Yoke Mount), Proprietary

Item Type: 1x LED Light Panel

Included Filters: Diffusion

Included Storage Case: No

Photometrics:

    110° at 3200K:

    543 fc / 5850 Lux at 3.3' / 1 m (Unmodified)

    65 fc / 700 Lux at 9.8' / 3 m (Unmodified)

    24 fc / 258 Lux at 16.4' / 5 m (Unmodified)

    3200K:

    382 fc / 4110 Lux at 3.3' / 1 m (with Lens)

    98 fc / 1050 Lux at 1565' / 477 m (with Lens)

    16 fc / 175 Lux at 16.4' / 5 m (with Lens)

    110° at 5600K:

    513 fc / 5520 Lux at 3.3' / 1 m (Unmodified)

    61 fc / 662 Lux at 9.8' / 3 m (Unmodified)

    23 fc / 244 Lux at 16.4' / 5 m (Unmodified)

    5600K:

    365 fc / 3930 Lux at 3.3' / 1 m (with Lens)

    42 fc / 457 Lux at 9.8' / 3 m (with Lens)

    16 fc / 167 Lux at 16.4' / 5 m (with Lens)

Color Temperature: 2200 to 15,000K

Color Modes: RGB, Daylight, Tungsten

Color Accuracy Standard: TLCI 95, CRI 95

Dimming: Built-In Dimmer / DMX 0 to 100%

Cooling System: Fan

Expected Lamp Life: 50,000 Hours (L70)

Beam Angle: 110°

Built-In Flash: Yes

Pixel Zones: 2

Preprogrammed Effects: Yes

Umbrella Mount: No

Front Accessory Mount: Proprietary

Wireless Remote Control Type: CRMX, Bluetooth

Mobile App Compatible: Yes: iOS Only, App Name: Luminair 4

Functionality: Remote Control

Power Source: AC Power (Cable Included), Battery (Not Included)

Inputs/Outputs:

    1x powerCON TRUE1 AC Power Input (100 to 240 VAC, 50 / 60 Hz at 1.6 A)

    1x powerCON TRUE1 AC Power Output

    1x XLR 5-Pin Male DMX Input

    1x XLR 5-Pin Female DMX Output

    1x XLR 3-Pin Power Input (48 VDC)

    1x USB-A Service Input

    1x RJ45 Female Network Input

    1x Unspecified Remote Input

Battery: 1x Battery Power Station, 48 VDC (Not Included)

Input Power: 48 VDC at 3.3 A, 100 to 240 VAC, 50 / 60 Hz at 1.6 A

Included Adapter / Cable: 1x USA Type-A/B Plug to powerCON TRUE1 Cable

Inline Switch: No

Power Pass-Thru: Yes

Power Consumption: 160 W

Yoke Type: Manually-Operated Yoke (360° Tilt)

Fixture Mounting: 4x 3/8"-16 Female Thread, 1x 1-1/8" Stud (Via Yoke Mount), Proprietary

Display: LCD

Environmental Resistance: Dust/Water-Resistant (IP65)

Operating Conditions: Up to 104°F / 40°C

Certifications: CE, CSA, ETL, FCC, RCM, UKCA

Materials: Aluminum, Polymer

Dimensions:

    15.35 x 8.17 x 7.23" / 38.99 x 20.75 x 18.36 cm (Fixture)

    21.17 x 17.06 x 6.95" / 53.77 x 43.33 x 17.65 cm (Fixture with Yoke)

Weight:

    12.1 lb / 5.5 kg (Fixture)

    15.37 lb / 6.97 kg (Fixture with Yoke)

Included items

Creamsource Vortex2 Soft RGB LED Light Panel

XWIDE Lens

Yoke

Diffusion Panel

Power Cable

Limited 3-Year Manufacturer Warranty

Registration Extension: 2-Year
