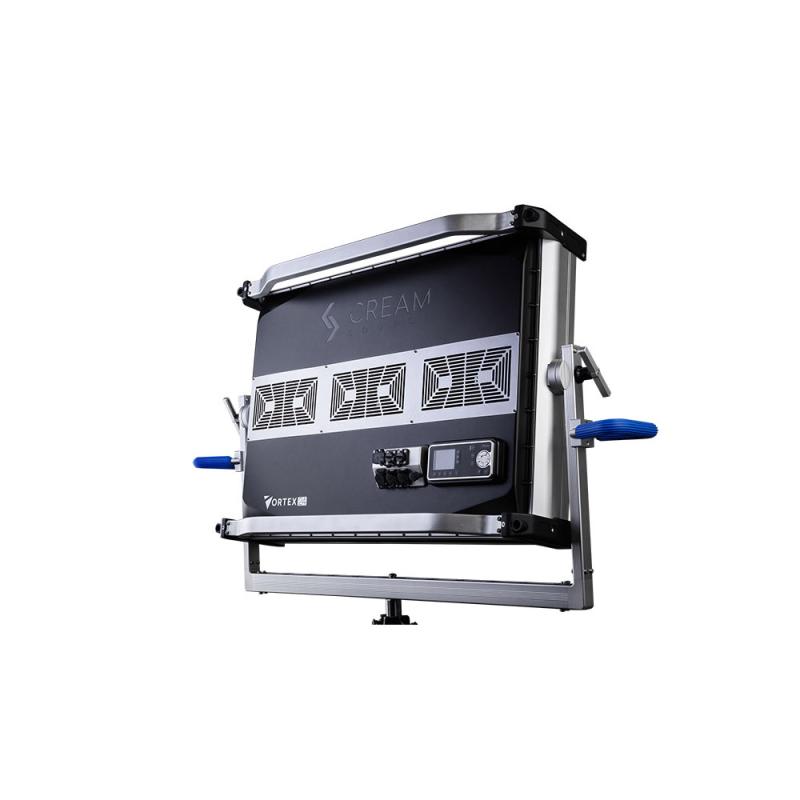

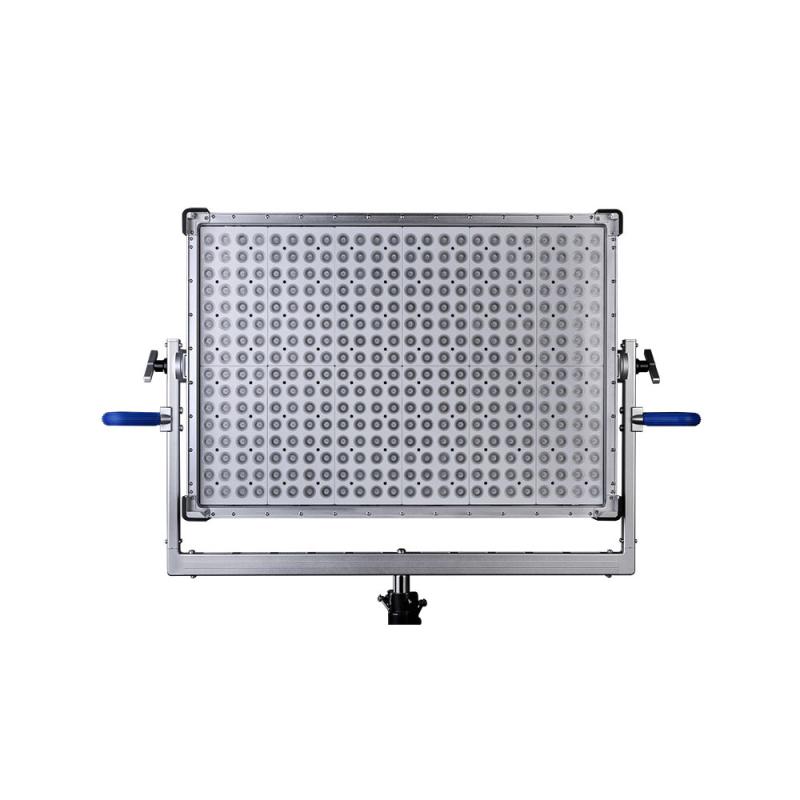

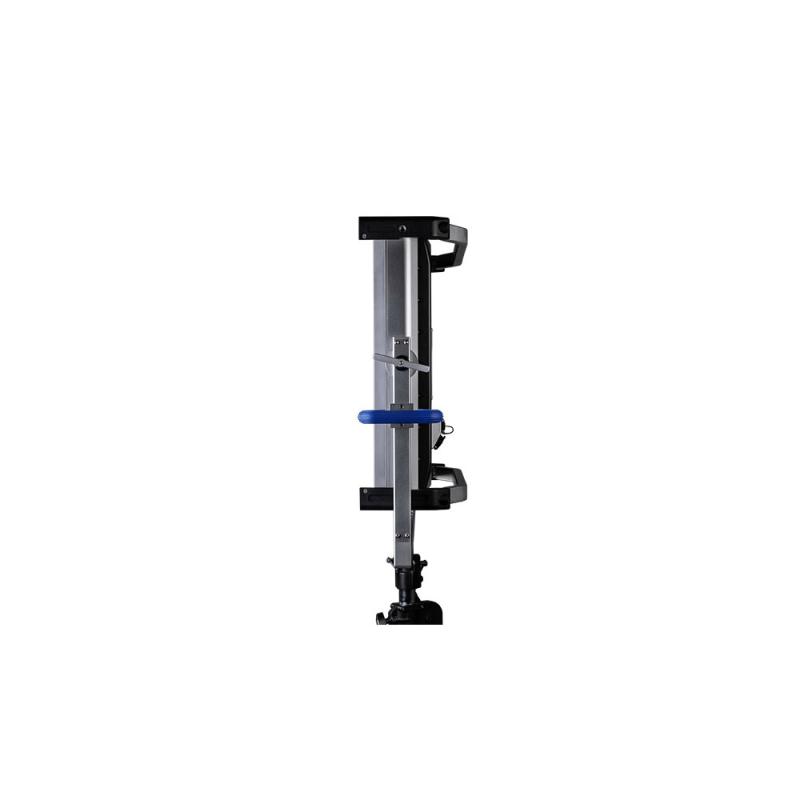

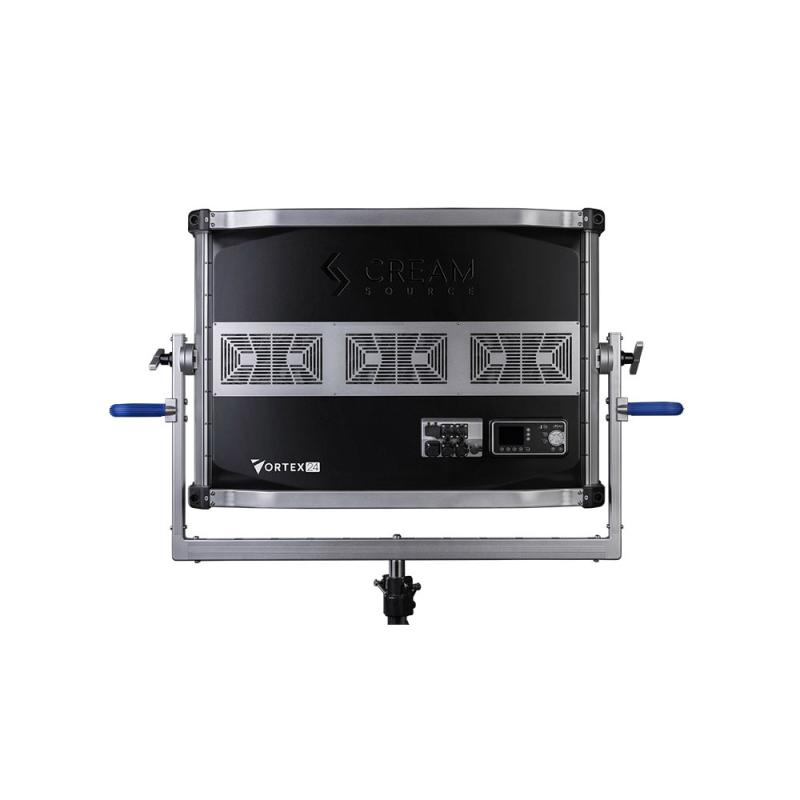

Creamsource Vortex 24 Colour w/ Yoke

Meet the Vortex24, a dynamic 2x3 lighting system tailored for those seeking expansive coverage and powerful output. Building on the foundation of the Vortex8, the Vortex24 amplifies output threefold, while its larger form factor reduces the need for multiple units and simplifies rigging, especially on Elevated Work Platforms (EWP) or Condors. Designed with 24 directional pixel zones, the Vortex24 allows for complex lighting effects like replicating the dynamics of fire or motion, with seamless dimming across intensities all while maintaining colour accuracy, free from drift. The Vortex24's efficient design draws 1950W, making it compatible with standard circuits and featuring a 'House Power' mode for 15A circuits. The integration of a built-in ballast means easier storage and transport, allowing for streamlined packing in lighting carts and trucks, optimising your workflow on the go. Network setup is a breeze with dual Ethernet ports and a Gigabit switch, supporting single-cable runs and efficient daisy-chaining of units. Featuring a front latch filter system for fast changes of diffusers and accessories, the Vortex24 also ships with a medium flat diffuser for instant light softening — no extra purchases necessary.

Technical specifications

Item Type: 1x LED Light Panel

Included Storage Case: No

Included Filters: Diffusion

Photometrics

20° at 3200K:

     2443 fc / 26,300 Lux at 3.3' / 1 m (Unmodified)

     305 fc / 3280 Lux at 9.8' / 3 m (Unmodified)

     111 fc / 1190 Lux at 16.4' / 5 m (Unmodified)

3200K:

     233 fc / 2510 Lux at 3.3' / 1 m (with Lens)

     26 fc / 278 Lux at 9.8' / 3 m (with Lens)

     9 fc / 100 Lux at 16.4' / 5 m (with Lens)

 20° at 5600K:

     2555 fc / 27,500 Lux at 3.3' / 1 m (Unmodified)

     317 fc / 3410 Lux at 9.8' / 3 m (Unmodified)

     115 fc / 1240 Lux at 16.4' / 5 m (Unmodified)

 5600K:

      246 fc / 2650 Lux at 3.3' / 1 m (with Lens)

      27 fc / 293 Lux at 9.8' / 3 m (with Lens)

      10 fc / 106 Lux at 16.4' / 5 m (with Lens)

Color Temperature: 2200 to 15,000K

Color Modes: RGB, Daylight, Tungsten

Color Accuracy Standard: TLCI 95, CRI 95

Dimming: Built-In Dimmer / DMX 0 to 100%

Cooling System: Fan

Expected Lamp Life: 50,000 Hours (L70)

Beam Angle: 20°

Built-In Flash: Yes

Pixel Zones: 2

Preprogrammed Effects: Yes

Umbrella Mount: No

Front Accessory Mount: Proprietary

Wireless Remote Control Type: CRMX, Bluetooth

Mobile App Compatible: Yes: iOS Only

App Name: Luminair 4

Functionality: Remote Control

Power Source: AC Power (Cable Included), Battery (Not Included)

Inputs/Outputs

     1x powerCON TRUE1 AC Power Input (100 to 240 VAC, 50 / 60 Hz at 1.6 A)

     1x powerCON TRUE1 AC Power Output

     1x XLR 5-Pin Male DMX Input

     1x XLR 5-Pin Female DMX Output

     1x XLR 3-Pin Power Input (48 VDC)

     1x USB-A Service Input

     1x RJ45 Female Network Input

     1x Unspecified Remote Input

Battery: 1x Battery Power Station, 48 VDC (Not Included)

Input Power: 48 VDC at 3.3 A

     100 to 240 VAC, 50 / 60 Hz at 1.6 A

Included Adapter / Cable: 1x USA Type-A/B Plug to powerCON TRUE1 Cable

Inline Switch: No

Power Pass-Thru: Yes

Power Consumption: 160 W

Yoke Type: Manually-Operated Yoke (360° Tilt)

Fixture Mounting:

     4x 3/8"-16 Female Thread

    1x 1-1/8" Stud (Via Yoke Mount)

Proprietary

Display: LCD

Environmental Resistance: Dust/Water-Resistant (IP65)

Operating Conditions: Up to 104°F / 40°C

Certifications: CE, CSA, ETL, FCC, RCM, UKCA

Materials: Aluminum, Polymer

Dimensions

     15.35 x 8.17 x 7.23" / 38.99 x 20.75 x 18.36 cm (Fixture)

     21.17 x 17.06 x 6.95" / 53.77 x 43.33 x 17.65 cm (Fixture with Yoke)

Weight

     13.18 lb / 5.98 kg (Fixture)

     16.42 lb / 7.45 kg (Fixture with Yoke)

Included items

Creamsource Vortex24 RGB LED Light Panel

Yoke

Flat Diffuser

Power Cable

Limited 3-Year Manufacturer Warranty
