Creamsource Vortex4 325W Colour Including Yoke

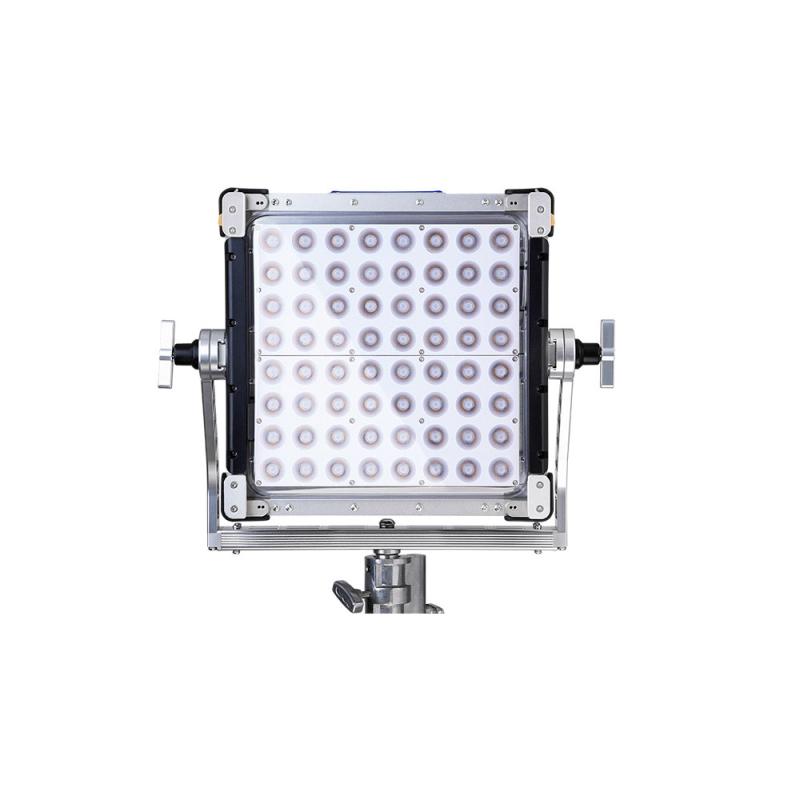

The Vortex4 is a 1x1 RGBW all-in-one lighting system with integrated power supply and antennas. A punchy 20° beam gives a reading of 7,300lux @3m. This fixture has a CCT range from 2200K to 15000K and four independently controllable zones. Vortex can be used as a hard light or soft light with the Creamsource Diffuser or Dome.

Effects, colour gels and our latest ‘FrameSync’ technology are built into the latest CreamOS architecture. Like it’s big brother, Vortex4 has no problem with bad weather, messy effects machines or extreme dust. The Vortex4 is IP65 water resistant and sealed for the ultimate security and efficiency.

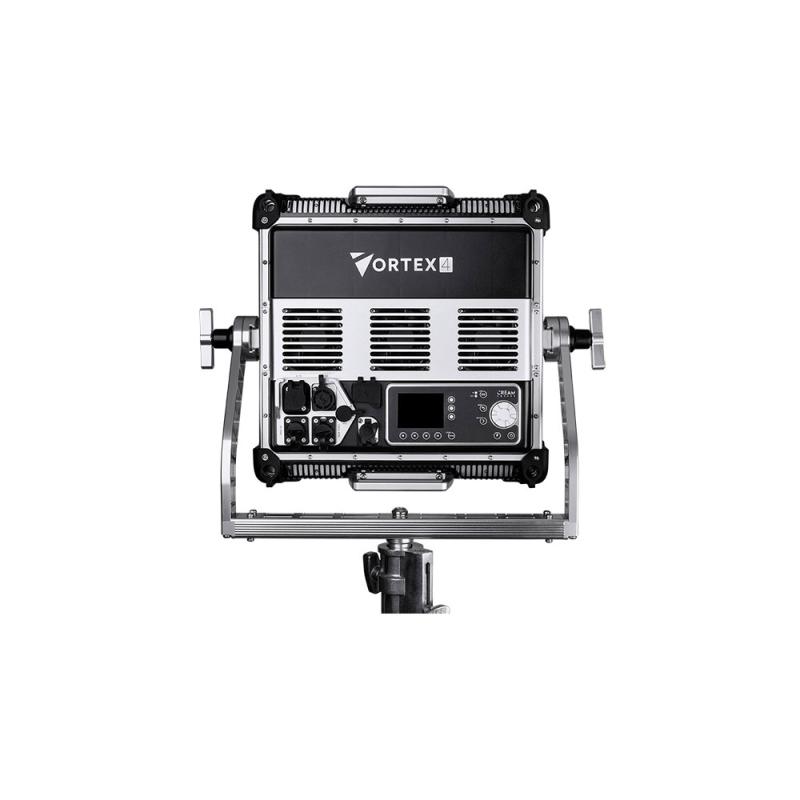

Vortex4 adopts ‘Vortex Connect’ including LumenRadio TimoTwo built in, Ethernet with sACN, Bluetooth, Wifi, 5pin DMX, USB type A and Creamsource Accessory port, enabling a  plethora of control possibilities and future protocol support. New rigging points have been built into Vortex4 to accommodate rapid rigging of large arrays of units. Battery powered operation is also supported with a dedicated 48V DC input.

The Vortex4 is built and designed to withstand all weather conditions and is rated IP65. The Vortex4 is an ultraquiet fan-based system with optimum thermal efficiency. The fan system and heatsink placement allows for core electronics to be sealed and isolated. This ensures the ultimate safety and piece of mid when operating in volatile conditions or heavy effects environments.

Only premium waterproof connectors have been used in this series allowing all functions to be used in all weather conditions.

The Vortex4 is a 325W hard light with a beam angle of 20°. This 1x1 fixture gives the meter a workout, reading 7,300 lux at 3m / 9.8ft.

Similar to the output of a 575W HMI equivalent.

The versatility of a narrow beam source is obvious. Both the artistic and technical needs to diffuse or shape the beam, create the flexibility needed to perform a range of tasks and provide a number of different lighting aesthetics.

The Vortex Series has been built with new software architecture at its base, supporting a myriad of new features, protocols and connectivity mediums making the future evolution of CreamOS very exciting.

Such evolution has come to fruition with a number of recent innovations in the space including the all-new FrameSync and like the Vortex 8, multizone control is also available with 4 zones on the Vortex4.

All of these evolving functions are wrapped into a new user interface, enhancing the user experience.

Interfacing with 3rd party equipment, apps and the internet is possible across the Vortex series.

LumenRadio TimoTwo, Ethernet, Bluetooth, 5pin DMX, Wifi, USB typeA and Creamsource Accessory port are all available on the antennaless Vortex4 offering endless potential communication and remote control.

Go to www.creamsource.com for full specs and more information.

Technical specifications

Item Type: 1x LED Light Panel

Included Storage Case: No

Included Filters: Diffusion

Lumens: 7300 (in RGB Mode)

Photometrics:

    20° at 3200K:

    4506 fc / 48,500 Lux at 3.3' / 1 m

    622 fc / 6700 Lux at 9.8' / 3 m

    232 fc / 2500 Lux at 16.4' / 5 m

    20° at 5600K:

    4933 fc / 53,100 Lux at 3.3' / 1 m

    6782 fc / 73,000 Lux at 9.8' / 3 m

    251 fc / 2700 Lux at 16.4' / 5 m

Color Temperature: 2200 to 15,000K

Color Modes: RGB, Daylight, Tungsten

Color Accuracy Standard: TLCI 95, CRI 95

Dimming: Built-In Dimmer (Continuous)

    0 to 100%

Cooling System: Fan

Expected Lamp Life: 50,000 Hours (L70)

Beam Angle: 20°

Built-In Flash: Yes

Preprogrammed Effects: Yes

Front Accessory Mount: Proprietary

Wireless Remote Control Type: Bluetooth, Wi-Fi, CRMX

Mobile App Compatible: Yes: iOS Only, App Name: Luminair

Functionality: Remote Control

Power Source: AC Power (Cable Included)

Inputs/Outputs:

    1x powerCON TRUE1 AC Power Input

    1x XLR 5-Pin DMX Input

    1x XLR 5-Pin DMX Output

    1x USB-A Service Input

    1x Proprietary Power Input

Input Power: 48 VDC at 6.9 A, 100 to 240 VAC, 50 / 60 Hz at 3.3 A

Included Adapter / Cable: 1x USA Type-A/B to powerCON TRUE1 Cable

Inline Switch: No

Power Pass-Thru: No

Power Consumption: 325 W

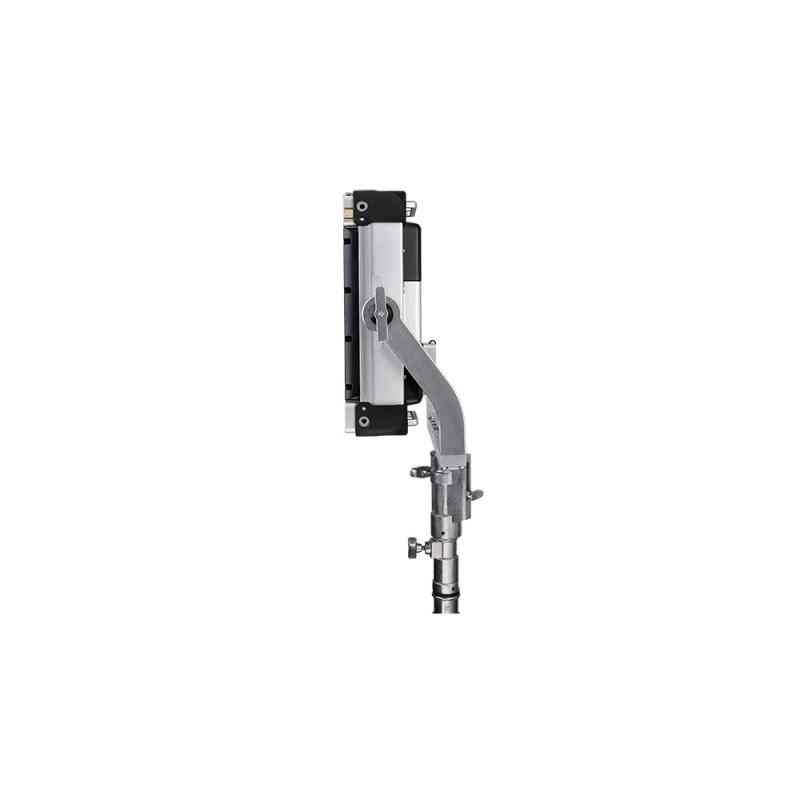

Yoke Type: Manually-Operated Yoke (180° Tilt)

Fixture Mounting: 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

Display: LCD

Environmental Resistance: Dust/Water-Resistant (IP65)

Operating Conditions: Up to 104°F / 40°C

Certifications: CE, ETL, FCC

Materials: Aluminum, Polymer (Housing)

Dimensions:

    1 x 1' / 30.5 x 30.5 cm (Fixture Panel)

    15 x 15 x 4.8" / 38 x 38 x 12.1 cm (Fixture)

    22.4 x 22.4 x 7" / 57 x 57 x 17.9 cm (Fixture with Yoke)

Weight:

    21.6 lb / 9.8 kg

    25.1 lb / 11.4 kg (Fixture with Yoke)

Package Weight: 34.63 lb

Box Dimensions (LxWxH): 24.8 x 23 x 8.8"

Included items

Creamsource Vortex4 RGB LED Light Panel

Yoke

Flat Diffuser Panel

PowerCON Cable

Limited 3-Year Manufacturer Warranty

Registration Extension: 2-Year
