Creamsource Vortex4 Soft 325W Colour Including Yoke, Softbag, Dome

Discover the Vortex4 Soft (V4S), the 1x1 LED lighting system for professionals seeking versatility and quality. As the softer sibling to the Vortex4 hard panel, it's designed with the same build-quality and user-friendly interface, integrating an RRGBBW colour engine,
power supply, and antennas into a sleek, robust design. A 110degr. beam produces 29,100lumens and 1,180lux @ 3m (5600K, Open Face).
This fixture has a CCT range from 2200k to 15000k and four independently controllable zones.
The Vortex4S is a dedicated soft source that blends efficiency and performance with its 325W output, enveloping your space in beautiful full-spectrum soft light. Whether it's for a space-constrained studio setup or the demanding conditions of outdoor broadcasts, the Vortex4 Soft is your go-to lighting solution. Its 48V DC input ensures easy transition to battery power when the action moves off-grid.
Built to endure the rigours of any shooting environment, the Vortex4 Soft is resilient with an IP65 rating that assures dependability even when weather conditions are far from ideal. Powered by CreamOS, it integrates smoothly with other Vortex products, allowing for consistent control and effortless incorporation into existing setups.

Technical specifications

Item Type: 1x LED Light Panel

Included Storage Case: No

Color Temperature: 2200 to 15,000K

Color Modes: RGB, Daylight, Tungsten

Color Accuracy Standard: CRI 95, TLCI 95

Dimming: App-Controlled / Built-In Dimmer / DMX

Front Accessory Mount: Proprietary

Wireless Remote Control Type: Bluetooth, Wireless DMX

Power Source: AC Power (Cable Included), Battery (Not Included)

Battery: 1x Battery Power Station (Not Included)

Input Power: 48 VDC, 100 to 240 VAC, 50 / 60 Hz

Power Consumption: 325 W

Fixture Mounting: 8x 3/8"-16 Female Thread, Proprietary

Included Filters: Diffusion

Photometrics:

    3200K:

    925 fc / 9960 Lux at 3.3' / 1 m (Unmodified)

    112 fc / 1210 Lux at 9.8' / 3 m (Unmodified)

    43 fc / 460 Lux at 16.4' / 5 m (Unmodified)

    5600K:

    908 fc / 9770 Lux at 3.3' / 1 m (Unmodified)

    110 fc / 1180 Lux at 9.8' / 3 m (Unmodified)

    30 fc / 320 Lux at 16.4' / 5 m (Unmodified)

Cooling System: Fan

Expected Lamp Life: 50,000 Hours

Beam Angle: 110°

Built-In Flash: No

Pixel Zones: 4

Preprogrammed Effects: Yes

Umbrella Mount: No

Mobile App Compatible: Yes: iOS Only, App Name: Luminair

Functionality: Remote Control

Inputs/Outputs:

    1x powerCON TRUE1 AC Power Input

    1x Unspecified Power Input (48 VDC at 6.9 A)

Battery: 1x Battery Power Station, 48 VDC (Not Included)

Included Adapter / Cable: 1x USA Type-A/B to powerCON TRUE1 Cable

Inline Switch: No

Yoke Type: Manually-Operated Yoke (360° Tilt)

Display: LCD

Environmental Resistance: Dust/Water-Resistant (IP65)

Operating Conditions: Up to 104°F / 40°C

Certifications: CE, CSA, ETL, FCC, RCM, UKCA

Materials: Aluminum, Polymer

Dimensions:

    15 x 15 x 4.8" / 38.1 x 38.1 x 12.2 cm (Fixture without Yoke)

    22.4 x 20.7 x 7.1" / 56.9 x 52.6 x 18 cm (Fixture with Yoke)

Weight:

    19.6 lb / 8.9 kg (Fixture without Yoke)

    23.6 lb / 10.7 kg (Fixture with Yoke)

Package Weight: 33.515 lb

Box Dimensions (LxWxH): 24.9 x 23 x 8.9"

Included items

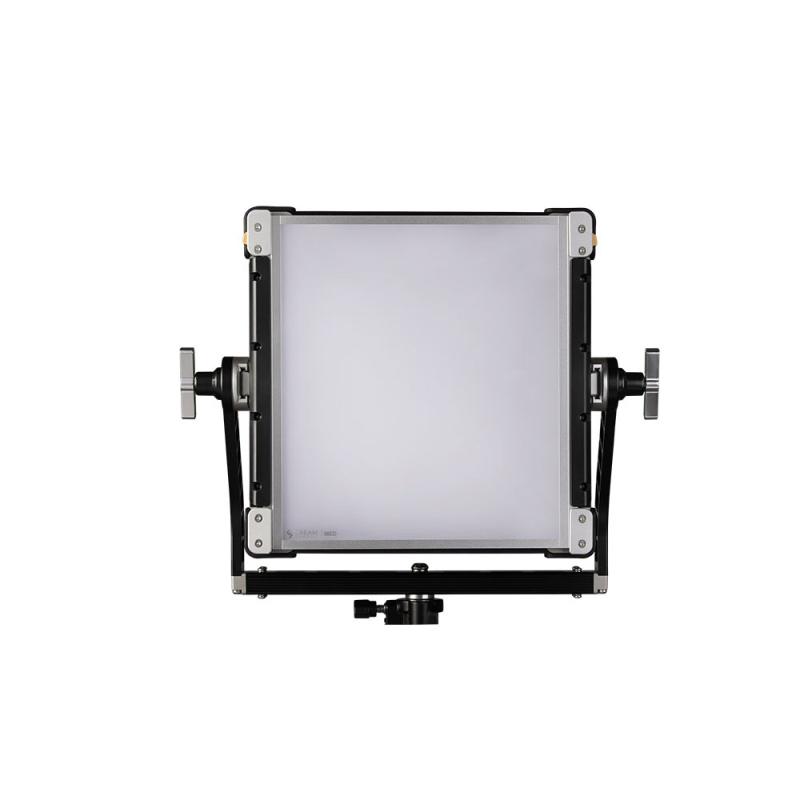

Creamsource Vortex4 Soft RGB LED Light Panel

Yoke

Flat Diffuser

Power Cable

Limited 3-Year Manufacturer Warranty

Registration Extension: 2-Year

Creamsource Vortex4 Dome

Limited 1-Year Manufacturer Warranty

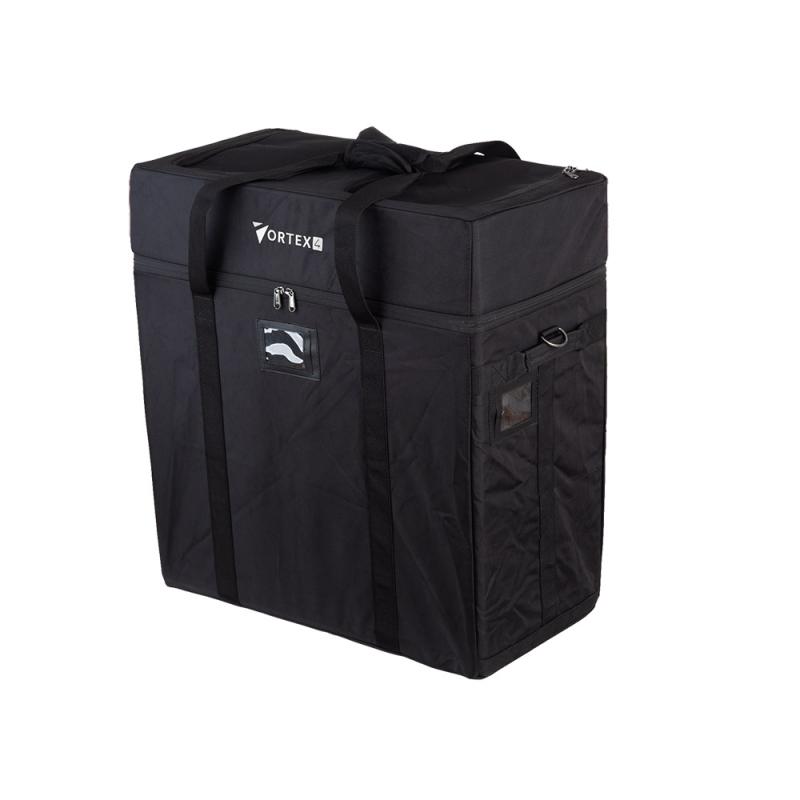

Creamsource Soft Bag for Vortex4

Limited 1-Year Manufacturer Warranty
