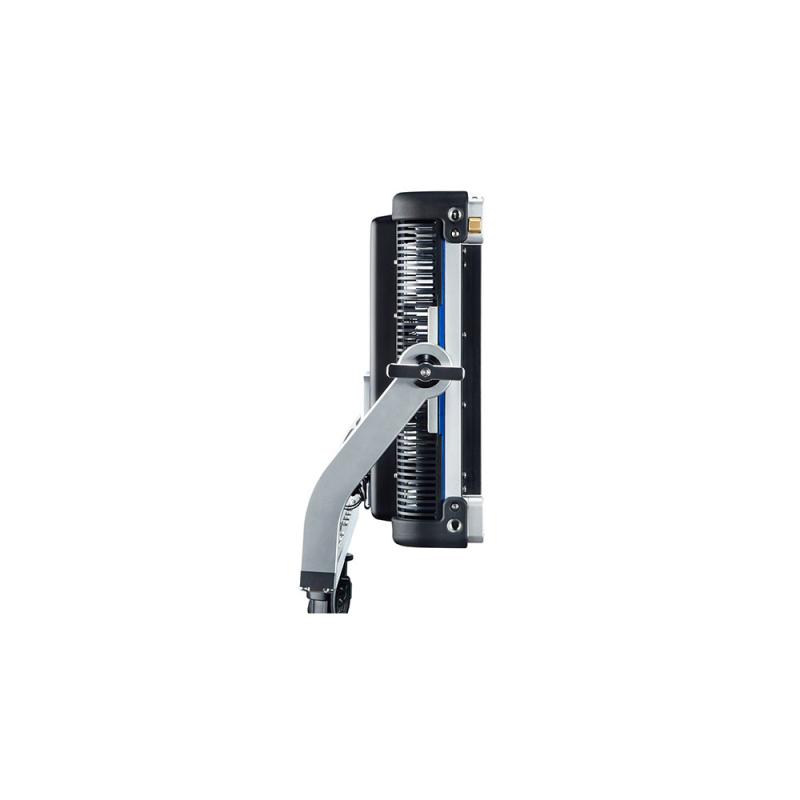

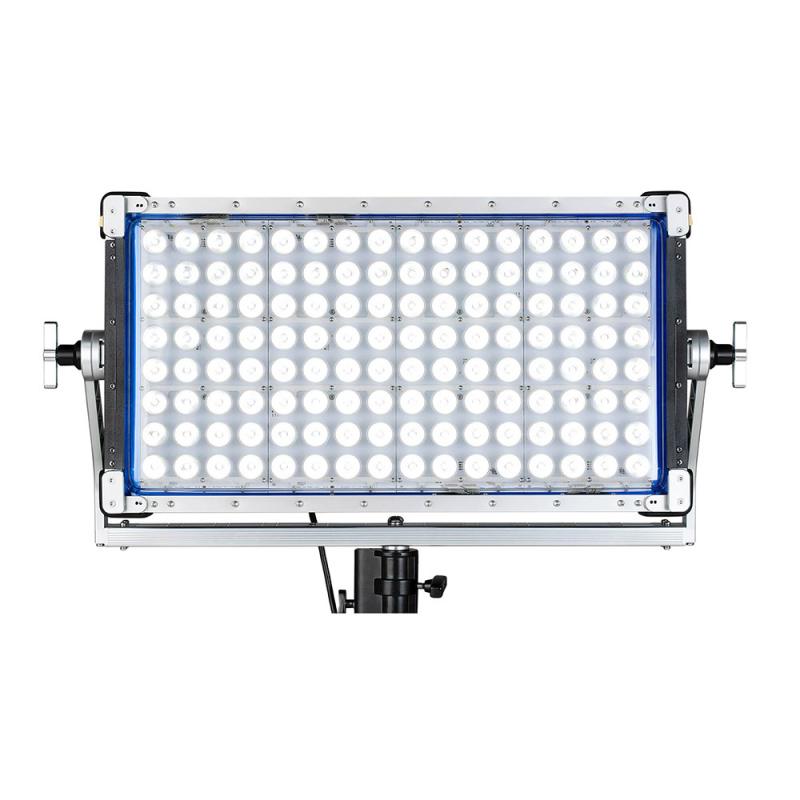

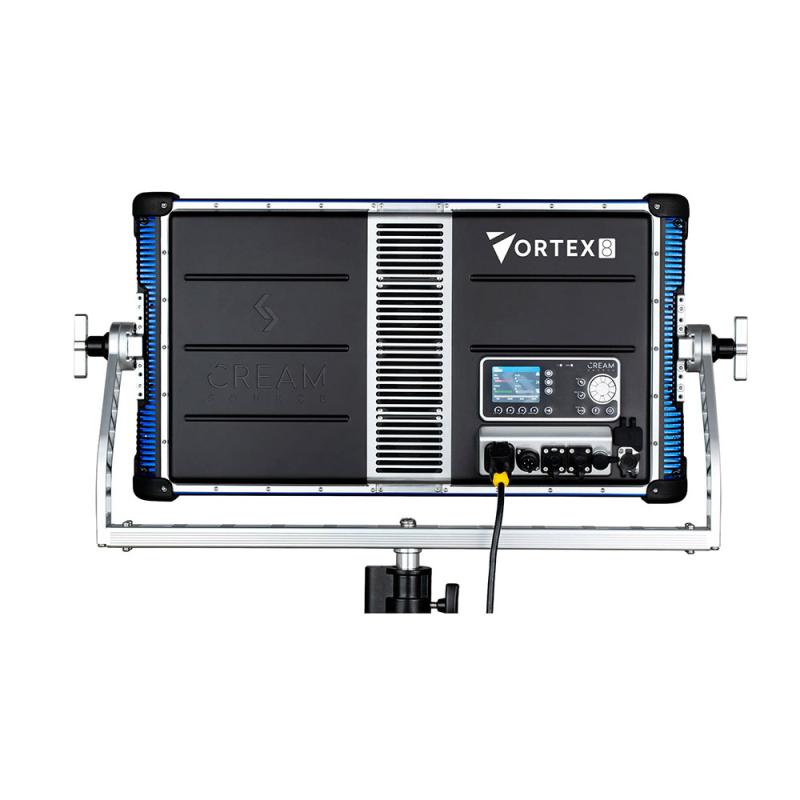

Creamsource Vortex8 650W Colour Including Yoke

The Vortex8 is a versatile 2x1 RGBW system with a CCT range from 2200K to 15000K that can be used as a hard punch light to bounce
or push through diffusion, or as a creamy soft light with the Creamsource Dome or DoPchoice Snapbag. Effects and colour gels are
built into the latest CreamOS architecture in addition to a range of new features wrapped into an intuitive user interface. Unpredictable
weather and messy effects machines are no longer a worry for the lighting department where the Vortex is in place. The Vortex8 is IP65
water resistant and sealed for the ultimate security and efficiency. Rain, snow and dust wont hold the Vortex8 back.
Connectivity to the Vortex8 is well up to date with LumenRadio TimoTwo built in, Ethernet, Bluetooth, 5pin DMX, Wifi, USB type A and
Creamsource Accessory port. Interaction between Vortex8 and various third party instruments and protocols are endless opening
various wired and wireless control options. We are geeks for high quality and precision engineering, and loads of our geekiness has
spilled into the Vortex Series. Built with elegance and durability in mind the aluminium machining and technopolymer infusion has
allowed us to achieve our goals. Containment and simplicity is also achieved in this design, with the PSU as well as the antennas
integrated into the head.

For more information please visit the Creamsource product page.

Technical specifications

Item Type: 1x LED Array LED Light Panel

Included Storage Case: No

Color Temperature: 2200 to 15,000K

Color Modes: RGB

Color Accuracy Standard: TLCI 95, CRI 95

Dimming: Built-In Dimmer (Continuous)

    0 to 100%

Front Accessory Mount: Proprietary

Wireless Remote Control Type: Bluetooth, CRMX

Power Source: AC Power (Cable Included)

Input Power: 100 to 240 VAC, 50 / 60 Hz at 8 A

Power Consumption: 660 W

Fixture Mounting: 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

Lumens: 14,000 (in RGB Mode)

Photometrics:

    20° at 3200K:

    6336 fc / 68,200 Lux at 3.3' / 1 m

    20° at 5600K:

    6828 fc / 73,500 Lux at 3.3' / 1 m

Cooling System: Fan

Expected Lamp Life: 50,000 Hours (L70)

Beam Angle: 20°

Built-In Flash: No

Preprogrammed Effects: No

Inputs/Outputs:

    1x XLR 5-Pin DMX Input

    1x XLR 5-Pin DMX Output

    1x USB-A Service Input

    1x powerCON TRUE1 AC Power Input

    1x Proprietary Power Input

    1x etherCON/RJ45 DMX Input

Included Adapter / Cable: 1x USA Type-A/B to powerCON TRUE1 Cable

Inline Switch: No

Power Pass-Thru: No

Yoke Type: Manually-Operated Yoke (180° Tilt)

Display: LCD

Environmental Resistance: Dust/Water-Resistant (IP65)

Operating Conditions: Up to 104°F / 40°C

Certifications: CE, ETL, FCC

Materials: Aluminum, Polymer (Housing)

Dimensions:

    2 x 1' / 60.96 x 30.48 cm (Fixture Panel)

    27.2 x 15 x 4.8" / 69 x 38 x 12.1 cm (Fixture)

    32.7 x 21.7 x 6.5" / 83.1 x 55.1 x 16.4 cm (Fixture with Yoke)

Weight:

    30.2 lb / 13.7 kg

    34.57 lb / 15.68 kg (Fixture with Yoke)

Package Weight: 52.35 lb

Box Dimensions (LxWxH): 30 x 22.5 x 7.75"

Included items

Creamsource Vortex8 RGB LED Light Panel

Yoke

Flat Diffuser Panel

PowerCON AC Cable

Limited 5-Year Manufacturer Warranty
