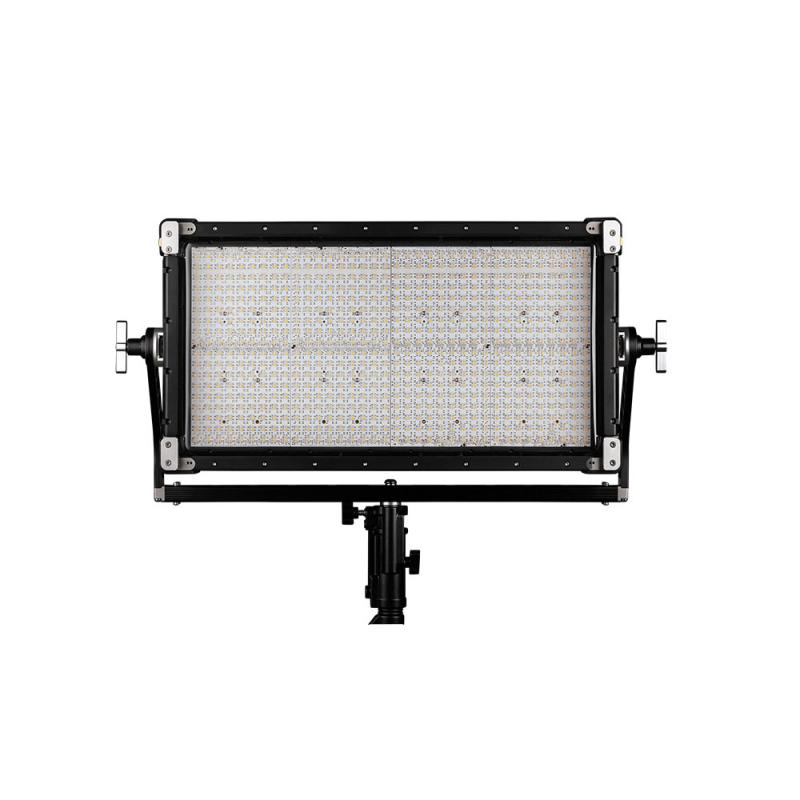

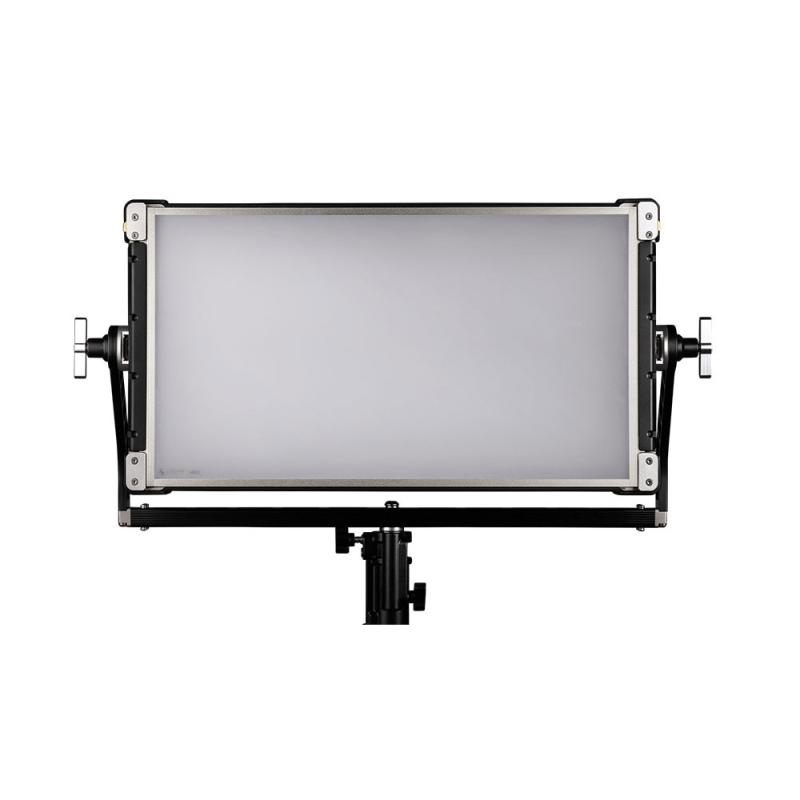

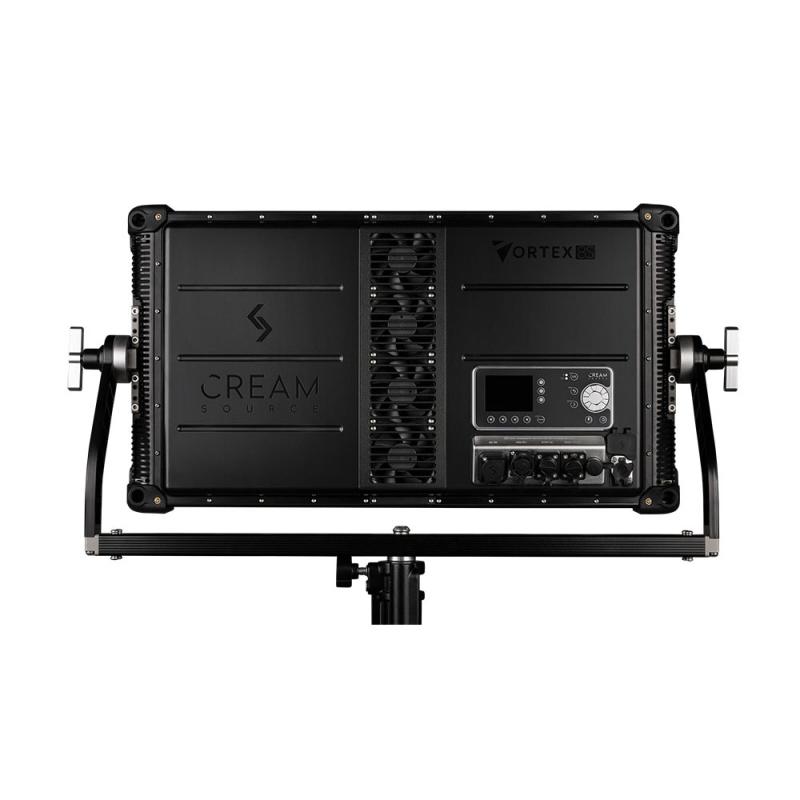

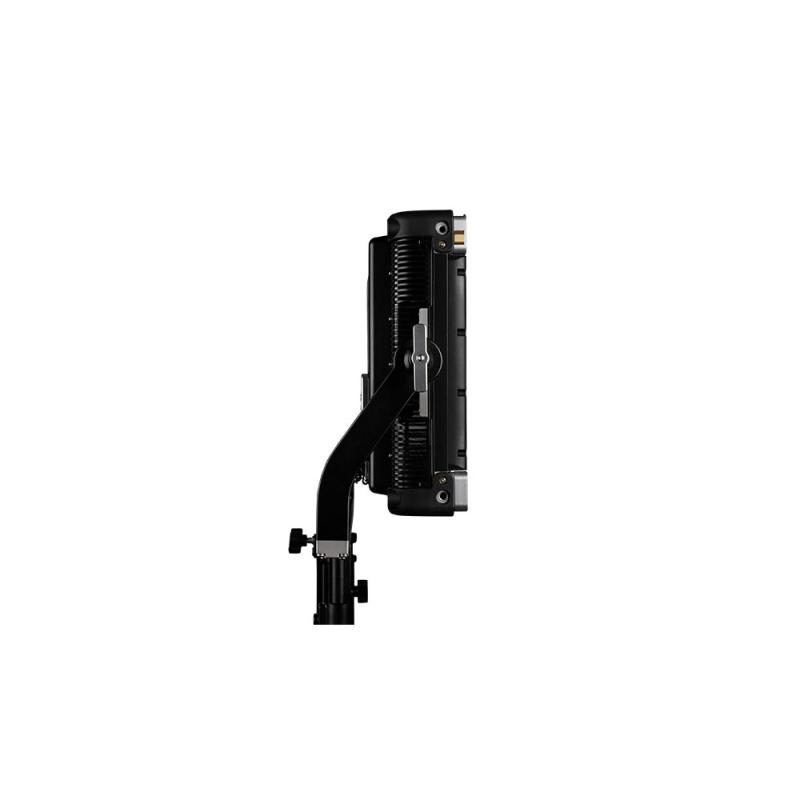

Creamsource Vortex8 Soft 650W Colour Including Yoke, Softbag, Dome

Discover the Vortex8 Soft (V8S), the 2x1 LED lighting system for professionals seeking versatility and quality. As the softer sibling to the Vortex8 hard panel, it's designed with the same build-quality and user-friendly interface, integrating an RRGBBW colour engine,
power supply, and antennas into a sleek, robust design. A 110degr. beam produces 58,200lumens and 2,340lux @3m (5600K, Open Face).
This fixture has a CCT range from 2200k to 15000k and eight independently controllable zones.
The Vortex8S is a dedicated soft source that blends efficiency and performance with its 650W output, enveloping your space in beautiful full-spectrum soft light. Whether it's for a space-constrained studio setup or the demanding conditions of outdoor broadcasts, the Vortex8 Soft is your go-to lighting solution. Its 48V DC input ensures easy transition to battery power when the action moves off-grid.
Built to endure the rigours of any shooting environment, the Vortex8 Soft is resilient with an IP65 rating that assures dependability even when weather conditions are far from ideal. Powered by CreamOS, it integrates smoothly with other Vortex products, allowing for consistent control and effortless incorporation into existing setups.

Technical specifications

Item Type: 1x LED Light Panel

Included Filters: Diffusion

Included Storage Case: No

Photometrics:

    3200K:

    1812 fc / 19,500 Lux at 3.3' / 1 m (Unmodified)

    223 fc / 2400 Lux at 9.8' / 3 m (Unmodified)

    85 fc / 920 Lux at 16.4' / 5 m (Unmodified)

    5600K:

    1774 fc / 19,100 Lux at 3.3' / 1 m (Unmodified)

    217 fc / 2340 Lux at 9.8' / 3 m (Unmodified)

    84 fc / 900 Lux at 16.4' / 5 m (Unmodified)

Color Temperature: 2200 to 15,000K

Color Modes: RGB, Daylight, Tungsten

Color Accuracy Standard: TLCI 95, CRI 95

Dimming: App-Controlled / Built-In Dimmer / DMX (Continuous)

    0 to 100%

Cooling System: Fan

Expected Lamp Life: 50,000 Hours (L70)

Beam Angle: 110°

Built-In Flash: No

Pixel Zones: 8

Preprogrammed Effects: Yes

Front Accessory Mount: Proprietary

Connectivity:

Wireless Remote Control Type: Bluetooth

Wireless DMX: Yes

Mobile App Compatible: Yes: iOS Only

App Name: Luminair

Power & I/O:

Power Source: AC Power (Cable Included), Battery (Not Included)

Inputs/Outputs:

    1x powerCON TRUE1 AC Power Input

    1x Unspecified Power Input (48 VDC at 13.75 A)

    1x XLR 5-Pin DMX Input

    1x XLR 5-Pin DMX Output

    1x etherCON/RJ45 Network Input

    1x USB-A Service Input

    1x Unspecified Remote Input

Battery: 1x Battery Power Station, 48 VDC (Not Included)

Input Power: 48 VDC at 13.75 A, 100 to 240 VAC, 50 / 60 Hz at 6.6 A

Included Adapter / Cable: 1x USA Type-A/B to powerCON TRUE1 Cable

Inline Switch: No

Power Consumption: 650 W

Mounting:

Yoke Type: Manually-Operated Yoke (180° Tilt)

Fixture Mounting:

    1x 1-1/8" Stud (Via Yoke Mount)

    8x 3/8"-16 Female Thread

    Proprietary

General:

Display: LCD

Environmental Resistance: Dust/Water-Resistant (IP65)

Operating Conditions: Up to 104°F / 40°C

Certifications: CE, CSA, ETL, FCC, RCM, UKCA

Materials: Aluminum, Polymer (Housing)

Dimensions:

    27.2 x 15 x 4.8" / 69 x 38 x 12.1 cm (Fixture)

    32.7 x 21.7 x 6.4" / 83.1 x 55.1 x 16.3 cm (Fixture with Yoke)

Weight:

    30.9 lb / 14 kg (Fixture)

    35.3 lb / 16 kg (Fixture with Yoke)

Packaging Info:

Package Weight: 47.59 lb

Box Dimensions (LxWxH): 30.5 x 23.3 x 8.5"

Included items

Creamsource Vortex8 Soft RGB LED Light Panel

Yoke

Flat Diffuser

Power Cable

Limited 3-Year Manufacturer Warranty

Registration Extension: 2-Year

Creamsource Dome Diffuser for Vortex8 LED Panel

Limited 5-Year Manufacturer Warranty

Creamsource Wheeled Hard Road Case for Vortex8 LED Light

Limited 3-Year Manufacturer Warranty
