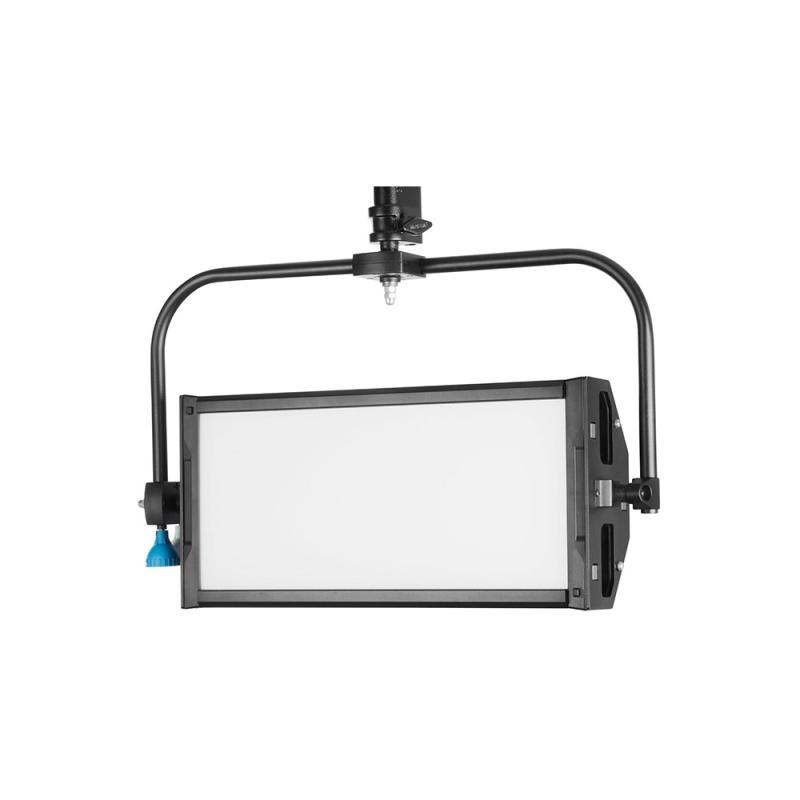

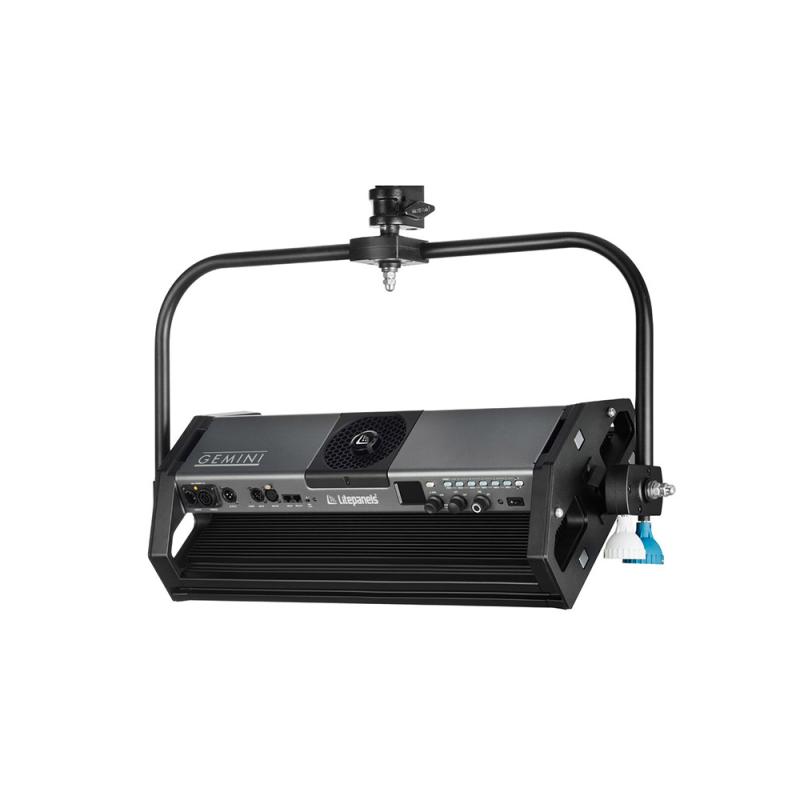

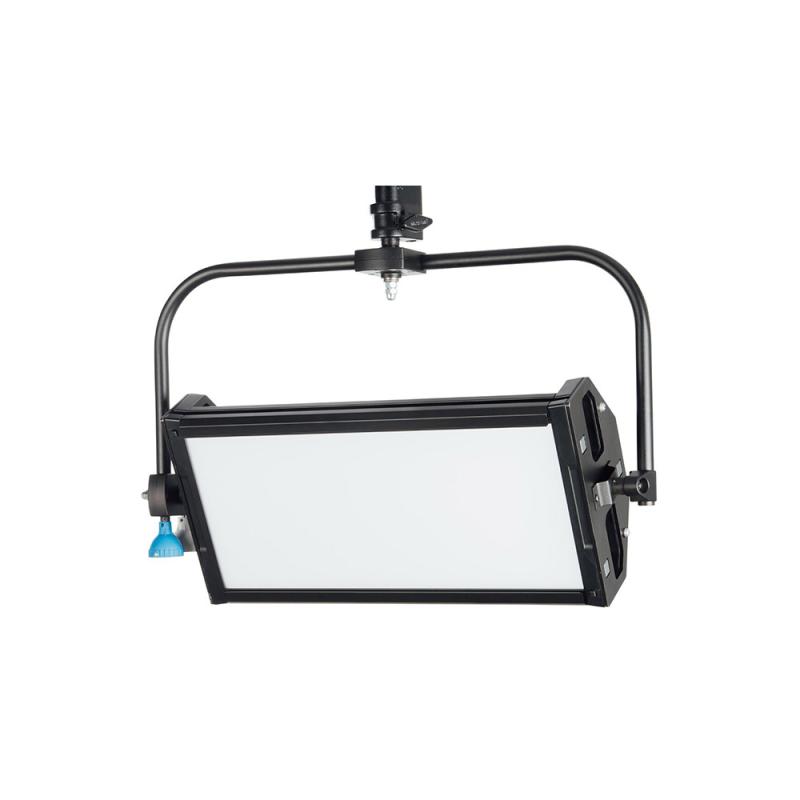

Gemini 2x1 Soft Panel - With POLE Operated Yoke

Life in True Color - The industrys most accurate and agile 2x1 softlight.

The Litepanels Gemini is a 2x1 LED panel that provides a soft source of color-accurate illumination. With its lightweight design, the Gemini allows for additional versatility with mobile power operation via 3pin XLR, making it a perfect location light. Staying true to the Litepanels legacy, the Gemini has accurate full spectrum Daylight and Tungsten lighting. The Gemini also allows for additional quick and easy adjustment by offering full featured three lighting modes full color with hue and saturation control all which allow for the intensity to be controlled anywhere from 100% to 0% at all times. With both manual and remote control via standard DMX 512 protocol or wirelessly with the option of DMX or Bluetooth, the Gemini is versatile and can adapt to many lighting situations.

Key Features
Built-in power supply and battery options mean lighter, more agile transportation and rapid rigging with fewer cables and no external ballast.
Intuitive onboard controls plus remote options including; Integrated DMX (5-pin XLR or RJ45), Optional Wireless DMX Module, or Bluetooth & the Litepanels Smartlite App.

Three lighting modes:
CCT (Correlated Color Temperature) Mode allows for Bi-color (Daylight to Tungsten) operation and for versatility, Gemini allows users to match ambient color with +/- green offset.
HSI (Hue, Saturation, Intensity) Color Mode allows selection of any color from the full 360 color wheel with saturation and intensity adjustment.
Gel Mode allows a variety of industry-popular gels to be selected with either daylight or tungsten source.

Technical specifications

Item Type: 1x LED Light PanelBuilt-In Lights

Included Filters: Soft Diffusion

Photometrics

   110° at 2700K:

   758 fc at 3.3' / 1 m*

   337 fc at 4.92'

   84 fc at 9.84'

   36 fc at 15.09'

110° at 6000K:

   902 fc at 3.3' / 1 m*

   401 fc at 4.92'

   100 fc at 9.84'

   43 fc at 15.09'

*Standardized Measurement Calculated Internally Based on Closest Distance

Color Modes: RGB

Color Accuracy Standard:

   CRI 99 at 2700K

   CRI 99 at 6000K

   TLCI 99 at 2700K

   TLCI 99 at 6000K

Dimming: Built-In Dimmer (Continuous) 0 to 100%

Cooling System: Fan

Beam Angle: 110°

Front Accessory Mount: Proprietary

Wireless Remote Control Type: Bluetooth

Power Source: AC Power (Cable Included)

Inputs/Outputs:

   1x powerCON Power Input

   1x powerCON Power Output

   1x XLR 3-Pin Power Input (28 VDC)

   1x XLR 5-Pin DMX Input

   1x XLR 5-Pin DMX Output

   1x RJ45 DMX Input

   1x RJ45 DMX Output

AC Input Power: 110 to 240 VAC, 50 / 60 Hz

DC Input Power: 23 to 34 VDC

Included Adapter / Cable: 1x Euro Type-F to powerCON Cable

Inline Switch: No

Power Pass-Thru: Yes

Power Consumption: 325 W

Yoke Type: Pole-Operated Yoke

Fixture Mounting: 1x 1-1/8" Stud (Via Yoke Mount)

Certifications: CE, FCC, IC, cETL

Materials: Aluminum

Dimensions: 23.75 x 11" / 60.33 x 27.94 cm (Fixture Panel)

25 x 6.5 x 12.5" / 63.5 x 31.8 x 16.5 cm (Fixture)

Weight: 22.27 lb / 10.1 kg

Included items

Litepanels Gemini 2x1 RGBWW LED Soft Panel (Pole-Operated Yoke)

Litepanels Pole Operated Yoke for Gemini LED Soft Panel

Litepanels Power Cable for Gemini LED Light (EU)
