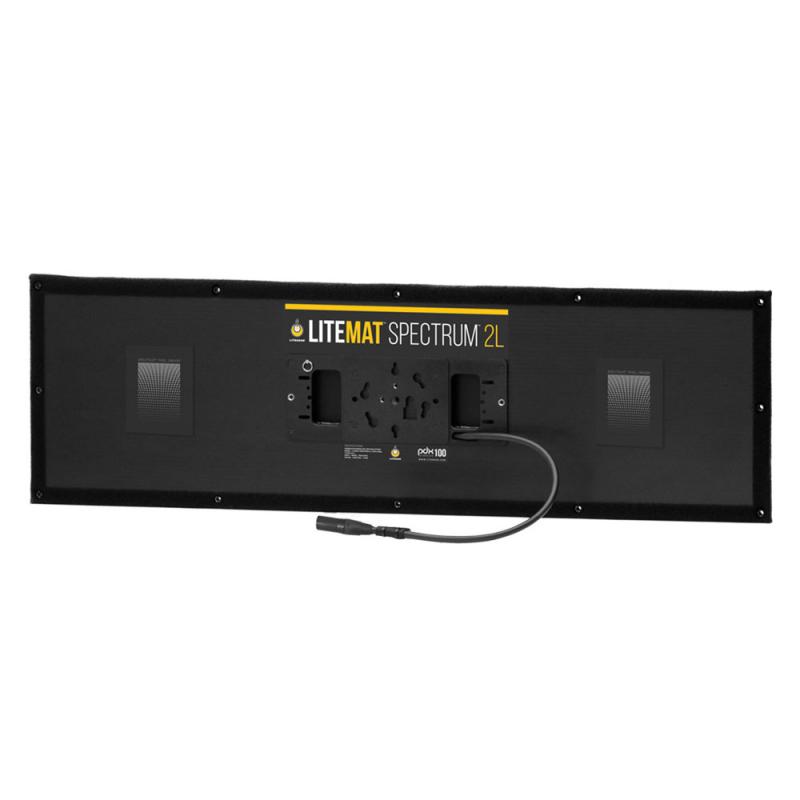

LiteMat Spectrum Two Long Kit

Full Color Capabilities
LiteMat Spectrum can augment its white-light output with color accents. Saturated color can be delicately added with 100 shades of depth. LiteMat Spectrum offers 360 pure accent colors that can be added with 100 shades of saturation.

Kelvin Temperature Adjustment
LiteMat Spectrum is built upon the solid foundation of the Cinema Series color-space found in thousands of existing LiteMat and LiteTile fixtures. LiteGear added red, green, blue, and amber to augment the cinema chips and extend the systems CCT abilities from 2000K to 11,000K. The key here is the amber chip. It is simply not possible to achieve the best white-balanced color without it.

Plus/minus Green
LiteMat Spectrum offers adjustable color correction being of green or magenta hue. Being opposing colors, green is applied to a light when an unwanted magenta cast is present. The opposite is also true, applying magenta when a light produces and undesirable green cast.

Full Spectrum Desaturation
Building from the most accurate white point possible, LiteGear developed a method that uses that white-point as the method of desaturating color. What is the best method of de-saturating a beautiful red, green, or blue chip? The very best full spectrum, color correct, and white-balanced white light color of your choosing.

Technical specifications

Product Name: LiteMat Spectrum 2L

Item Number: LM-SPECTRUM-TWO-L-G2

Model: 253-1

Beam Angle: 55º HPA

Input Voltage: 48V DC

Input Current: 2.08A

Total Power: 100W Nominal

Color Temperature Range: 2,000K to 11,000K

Tint Control: Full plus and minus green adjustment

Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer)

Colored Light: 6-color, wide gamut hue and saturation control

Estimated LED Lifetime: 50,000 hrs

Power & Data Connector: PDX

Pixels: 2 large format pixels

IP Rating: IP20

Max Operating Temp: 122°F (50°C)

Weight: 7.53 lbs (3.4 kg)

Color Rendition: CRI Average: >= 95

TLCI Average: >= 95

Total LED Quantity: 2,592

Dimensions: Height: 11.6 in. (295.4 mm)

Width: 40 in. (1016 mm)

Depth: 1 in. (25.4 mm)

Mounting: kMount

Certifications: ETL, CE, UKCA, FCC (certification pending)

Included items

LiteMat Spectrum 2L Head (2023)

LiteDimmer Spectrum AC/DC 200

LiteMat 2L Full Diffuser

LiteMat 2L Half Diffuser

LiteMat 2L Quarter Diffuser

LiteMat 2L PolySkirt

PDX Cable, 25 ft.

kMount

LiteMat 2L KitBag
