Micro Colour Essential Kit

The Creamsource Micro Colour features calibrated red, green, blue and white LEDs (RGBW) – so as well as producing beautiful white light in any CCT from 2,200K to 15,000K, it also has green/magenta adjustment and can produce vivid, saturated colours.

The Micro Colour has a 20 degree beam angle for maximum punch, fan-free cooling for silent operation, and is water resistant so it can be used in all weather (IP65 rated). It is lightweight yet rugged, quick to rig and its compact form factor means it can squeeze into small spaces on set.

The LED engine has been specially crafted to provide exceptional white light colour quality, with typical CRI and TLCI values above 95.

There are three main different rigging options: Quick release Yoke, Kino Flo Style Twist-on Mount, or single 3/8th Thread.

Numerous accessories are available, including a choice of V-Lock or Gold Mount style quick release battery plates for easy portability, a Snap-Bag light-bank from DOP Choice, Outsight’s high efficiency holographic lens system, and a hardwearing soft travel case.

Technical specifications

Item Type: 1x LED Light Panel

Included Storage Case: Yes

Photometrics at 3.3' / 1 m: 3200K: 1198 fc / 12,900 Lux, 5600K: 1146 fc / 12,340 Lux

Color Temperature: 2200 to 15,000K

Color Modes: RGB, Daylight, Tungsten

Color Accuracy Standard: CRI 95, TLCI 95

Dimming: Built-In Dimmer / DMX (Continuous) 0 to 100%

Front Accessory Mount: Proprietary

Power Source: AC to DC Adapter (Included)

Input Power: 10 to 32 VDC at 8 A, 100 to 240 VAC, 50 / 60 Hz at 1.3 A

Power Consumption: 80 W

Fixture Mounting: 1x 5/8" Receiver (Via Yoke Mount)

Item Type: 1x LED Light Panel

Included Filters: Diffusion

Included Storage Case: Yes

Photometrics:
                        3200K:

                        1198 fc / 12,900 Lux at 3.3' / 1 m

                        130 fc / 1400 Lux at 9.8' / 3 m

                        5600K:

                        1146 fc / 12,340 Lux at 3.3' / 1 m

                        124 fc / 1340 Lux at 9.8' / 3 m

Color Temperature: 2200 to 15,000K

Color Modes: RGB, Daylight, Tungsten

Color Accuracy Standard: CRI 95, TLCI 95

Dimming: Built-In Dimmer / DMX (Continuous) 0 to 100%

Cooling System: Passive

Expected Lamp Life: 50,000 Hours

Beam Angle: 20°

Built-In Flash: Yes

Preprogrammed Effects: Yes

Umbrella Mount: No

Front Accessory Mount: Proprietary

Power Source: AC to DC Adapter (Included)

Inputs/Outputs: 1x Unspecified Power Input, 1x Unspecified DMX/Remote Input/Output *Adapter Required (Not Included)

Input Power: 10 to 32 VDC at 8 A, 100 to 240 VAC, 50 / 60 Hz at 1.3 A

Included Adapter / Cable: 1x USA Type-A/B to Unspecified AC to DC Adapter

Inline Switch: No

Power Pass-Thru: No

Power Consumption: 80 W

Yoke Type: Manually-Operated Yoke

Fixture Mounting: 1x 5/8" Receiver (Via Yoke Mount)

Display: LCD

Environmental Resistance: Dust/Water-Resistant (IP65)

Operating Conditions: Up to 104°F / 40°C

Certifications: C-Tick, CE, FCC

Materials: Aluminum (Housing)

Dimensions: 13 x 11.8" / 33 x 30 x 10.9 cm (Fixture with Yoke)

Weight: 9.3 lb / 4.2 kg (Fixture with Yoke)

Package Weight: 14.14 lb

Box Dimensions (LxWxH): 11.7 x 11.4 x 9.1"

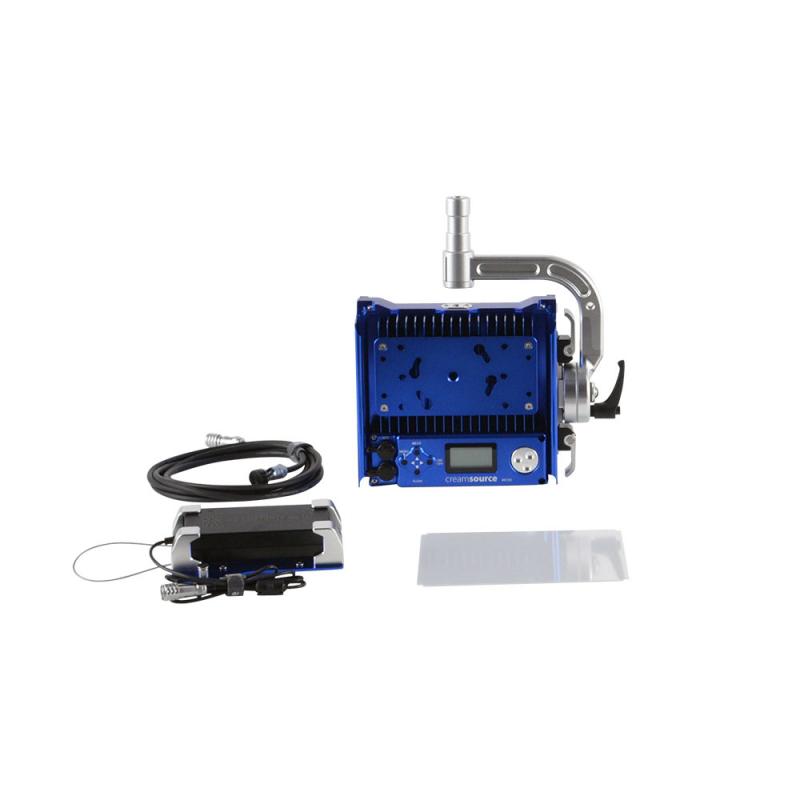

Included items

Creamsource Micro Colour Essential Kit

Micro Colour Fixture

Creamsource Power Supply for Creamsource Micro

Creamsource 5/8" Baby Socket Receiver for Creamsource Micro

Creamsource Yoke for Creamsource Micro

Creamsource 60-Degree Medium-Wide Angle Holographic Lens for Creamsource Micro

Creamsource Power Supply Cable for Creamsource Micro LED Panel (9')

Creamsource Mounting Plate for Creamsource Micro Power Supply

Limited 3-Year Warranty on Fixture

Limited 1-Year Warranty on Accessories
