Panel Lantern PRO Kit

Joint venture Bi-Color LED Light from Chimera and LiteGear, based on LiteMat S2 LED panels and 24x24 Panel Frame.

Based on Chimeras innovative and proven Panel Frame System the Panel Lantern is more than just a lantern; it gives users a portable, compact, reliable, and multipurpose light fixture. The Panel Lantern can be used in studio for simple fill light, yet is easily transportable for on location and run-and-gun applications.

The LiteGear LED engines feature high CRI and TLCI (>95) and are CCT adjustable from 2600K to 6000K and uses LiteGears field proven, reliable flicker free dimming control.

This Panel Lantern kit includes the LED head unit, a 24x24 collapsible Chimera Panel Frame, Lantern Fabric, dimmer, 12 ft. head power cable and power supply. The kit fits into a compact 406×711×76 mm ballistic bag and weighs less than 2,7 kg, which equals ultimate portability. Use the included Skirt Kit to allow masking or downlighting.

Technical specifications

Item Type: LED Foldable Light

Included Light Modifier: Lantern Softbox

Included Storage Case: Yes

Photometrics at 3.3' / 1 m: Not Specified by Manufacturer

Color Temperature: 2600 to 6000K

Color Modes: Daylight, Tungsten

Color Accuracy Standard: CRI 95

Dimming: Controller Included (Continuous) 0 to 100%

Front Accessory Mount: Proprietary

Power Source: AC to DC Adapter (Included)

Input Power: 12 VDC, 100 to 240 VAC, 50 / 60 Hz

Power Consumption: 100 W

Item Type: LED Foldable Light

Included Light Modifier: Lantern Softbox

Included Storage Case: Yes

Photometrics: Not Specified by Manufacturer

Color Temperature: 2600 to 6000K

Color Modes: Daylight, Tungsten

Color Accuracy Standard: CRI 95

Dimming: Controller Included (Continuous) 0 to 100%

Cooling System: No

Built-In Flash: No

Preprogrammed Effects: No

Umbrella Mount: No

Front Accessory Mount: Proprietary

Power Source: AC to DC Adapter (Included)

Inputs/Outputs:

                 Light Fixture: Built-In Cable with Proprietary Power Input

Power Supply/Controller:

                   Built-In Cable with Barrel / Coax Power Input

                   Proprietary Power Output

Input Power: 12 VDC, 100 to 240 VAC, 50 / 60 Hz

Included Adapter / Cable: 1x Euro Type-F to Barrel / Coax AC to DC Adapter

Inline Switch: No

Power Pass-Thru: No

Power Consumption: 100 W

Display: No

Environmental Resistance: No

Dimensions: 24 x 24" / 61 x 61 cm (Fixture)

Weight: 5.95 lb / 2.7 kg (Overall Kit)

Package Weight: 9.4 lb

Box Dimensions (LxWxH): 28.25 x 16.25 x 4"

Included items

Chimera Panel Lantern Powered by LiteGear 24 x 24" Lighting Kit (EU Plug)

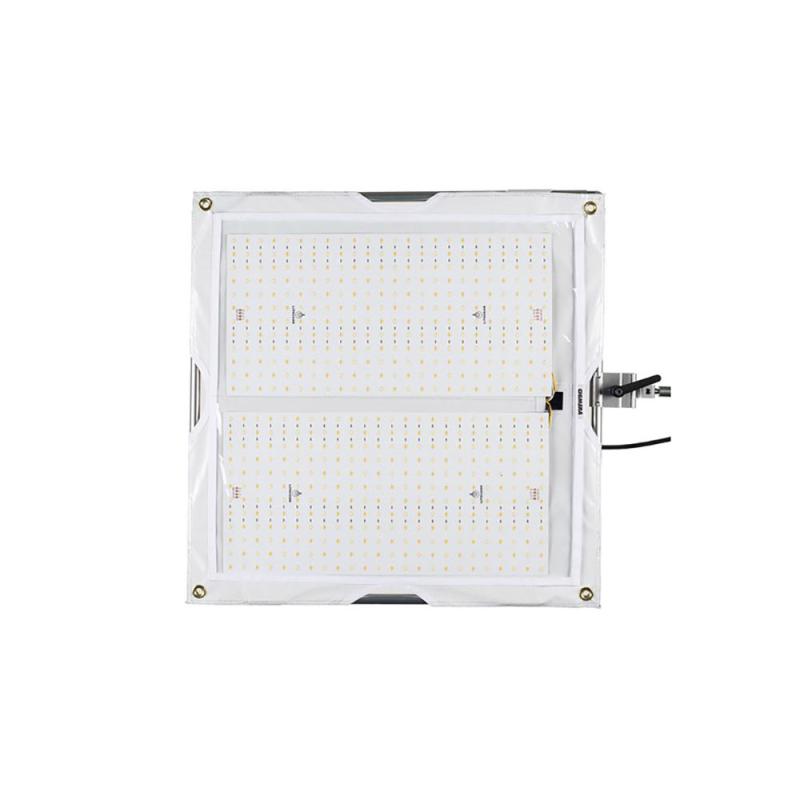

PL100 LED Light Engine

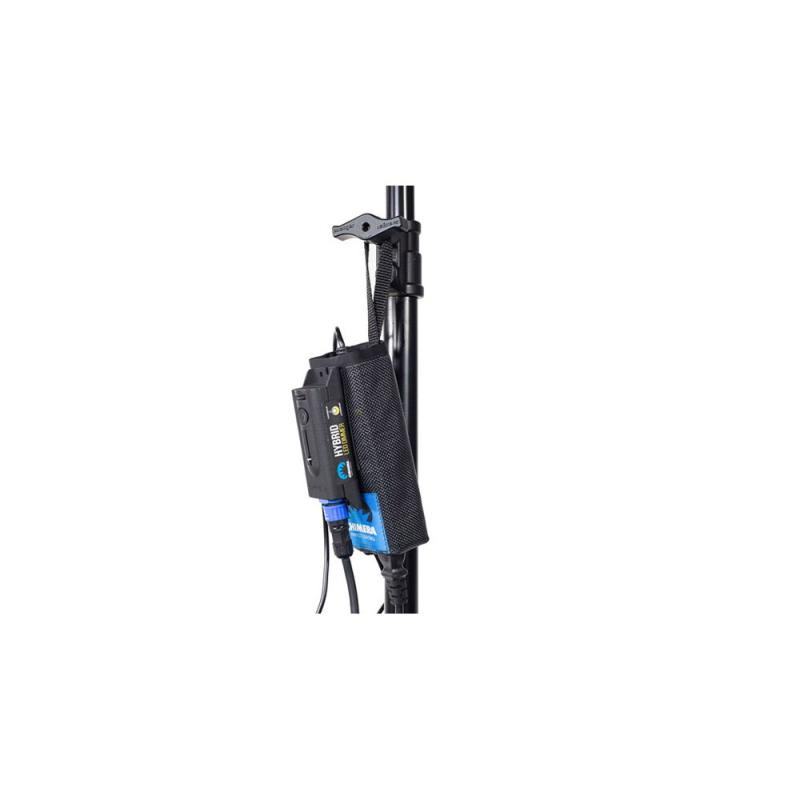

Controller for PL100

Power Supply for PL100

12' Head Cable (EU Plug)

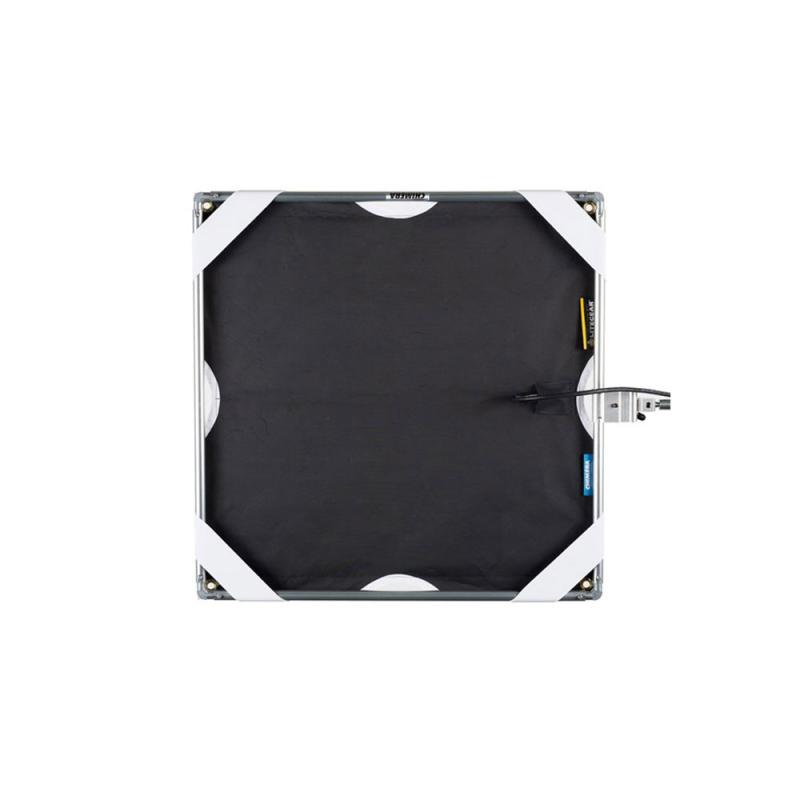

Chimera 24x24 Inch Panel Frame

Kit Bag

Limited 5-Year Manufacturer Warranty

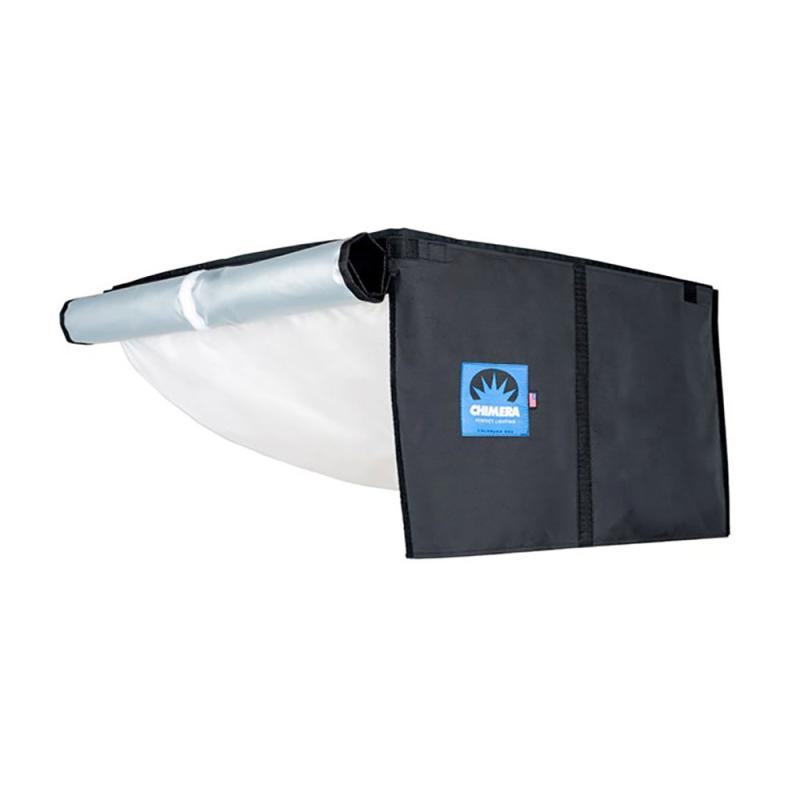

Chimera Skirt Kit for Panel Lantern

Limited 5-Year Manufacturer Warranty

Chimera Clamp for Panel Lantern

Limited 5-Year Manufacturer Warranty

Chimera Single Axis Stand Adapter

5/8" Baby Stud

Limited 1-Year Manufacturer Warranty
