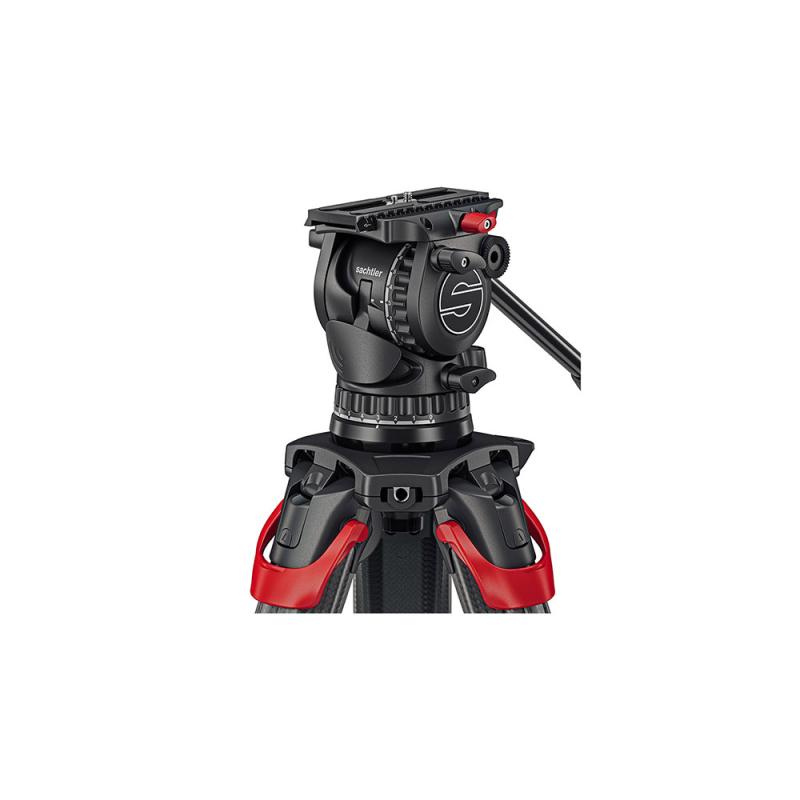

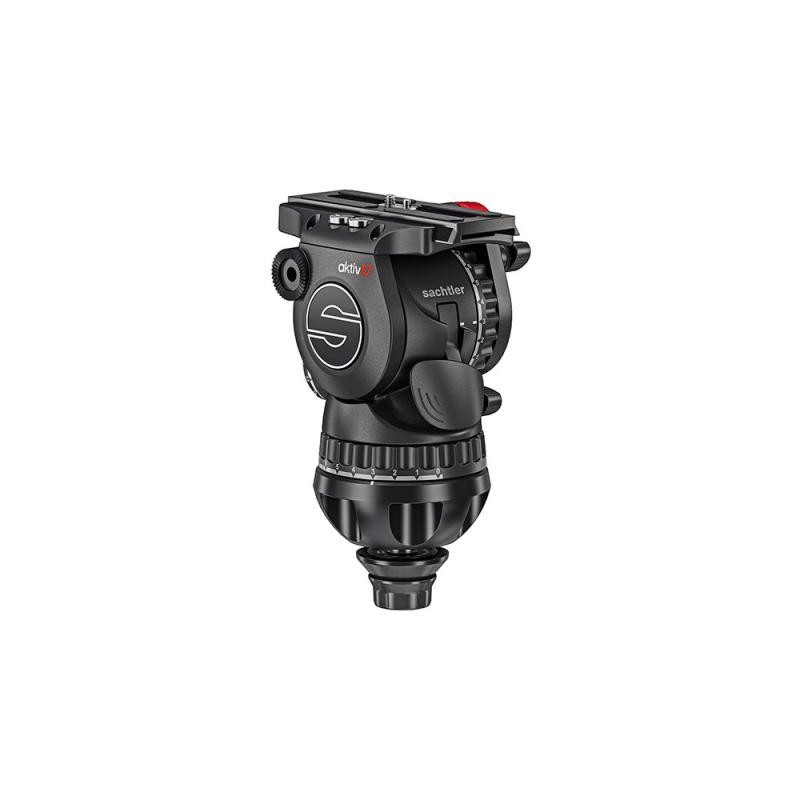

Sachtler Fluid Head Aktiv10 - 100mm

This Sachtler aktiv™ 100 mm fluid head for payloads of up to 12 kg (26.5 lbs.), with unique SpeedLevel™ technology, can be levelled in seconds giving you time to get the perfect shot in documentary, corporate or news applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.

Key Features

Level and lock your head in an instant without missing a second of action - Unique SpeedLevel technology.

Visible from any height or angle - day or night. - Innovative PrismBubble.

Capture extreme low angle shots right down to the ground. - Innovative streamlined mounting system.

Switch between tripod and slider in seconds. - Revolutionary SpeedSwap system.

Create moving stories, whatever the weather. - Performance tested to the extreme.

Technical specifications

Range: aktiv

Payload @ 100mm cog: 0 kg to 12 kg / 0 lb to 26.46 lb

Drag: 7 + 0 drag settings

Counterbalance: 15 + 0 steps

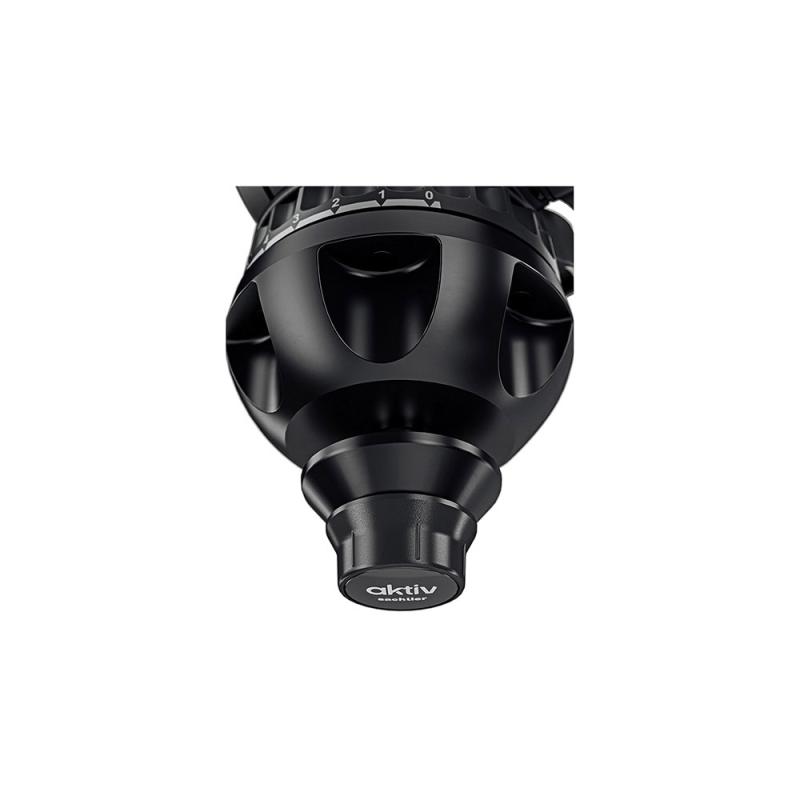

Bowl Size: 100 mm

Camera Plate: Sideload plate S

Sliding Range: 12 cm / 4.72 in

Weight: 2.9 kg / 6.39 lb

Tilt Range: 90° to -70°

Pan Bar Type: Pan bar DV 75

Pan Bar Count: 1

Pan Bar Length: 43 cm / 16.93 in

Pan Bar Attachment: ⌀ 16/-/28 mm

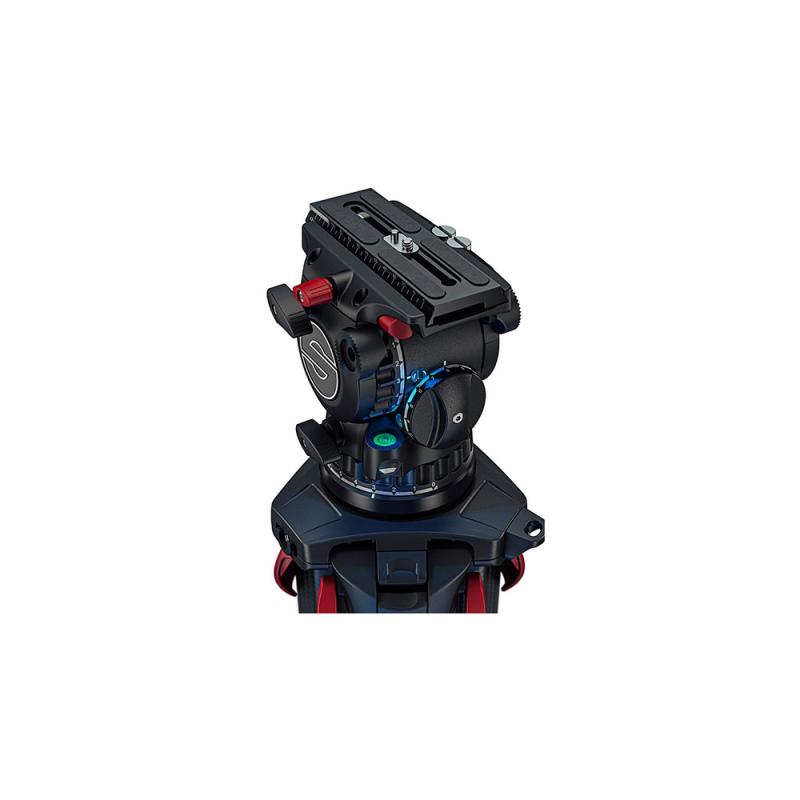

Level Bubble: Yes, illuminated PrismBubble

Battery Type: CR2032

Temperature Range: -40°C to 60°C / -40 °F to 140 °F

Included items

aktiv10 fluid head with one pan bar DV 75 and one camera plate Sideload plate S

Sideload plate S / Ace plate (0164)

Pan bar DV 75 (0992SP)

aktiv bowl connector 100 mm V2 (S2080-0013)
