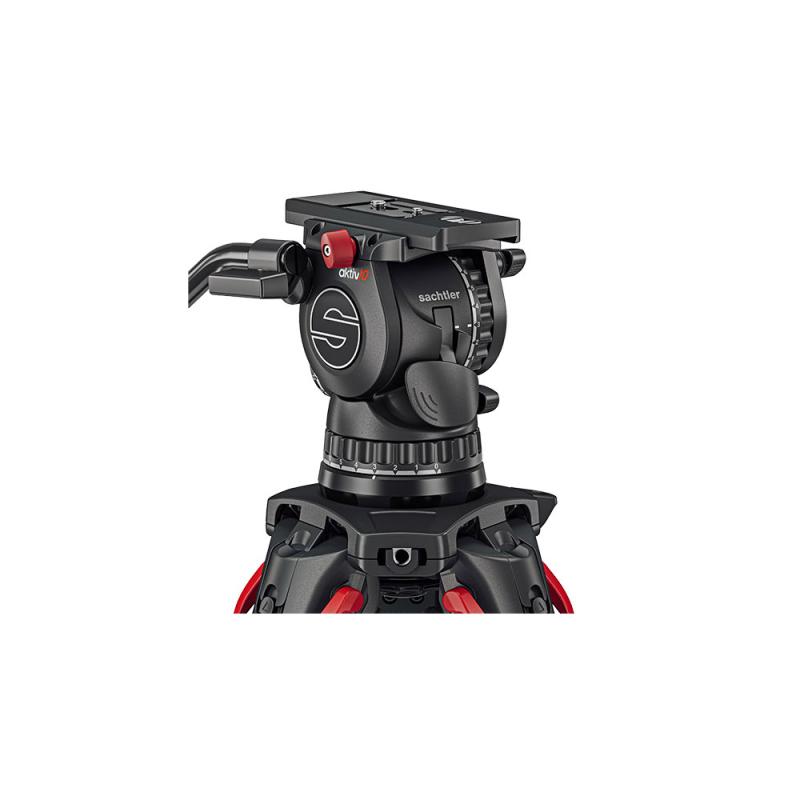

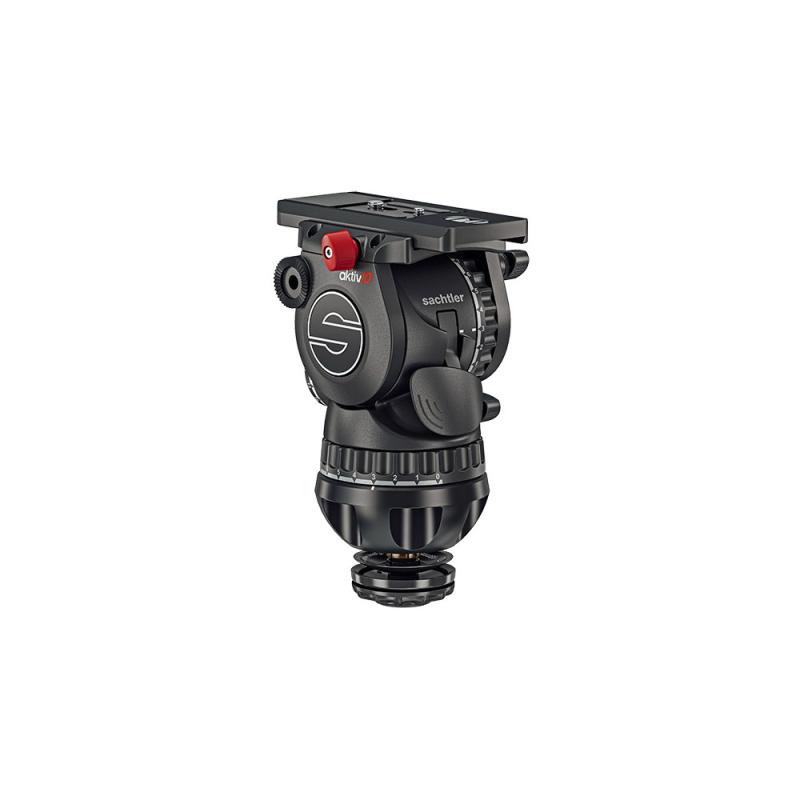

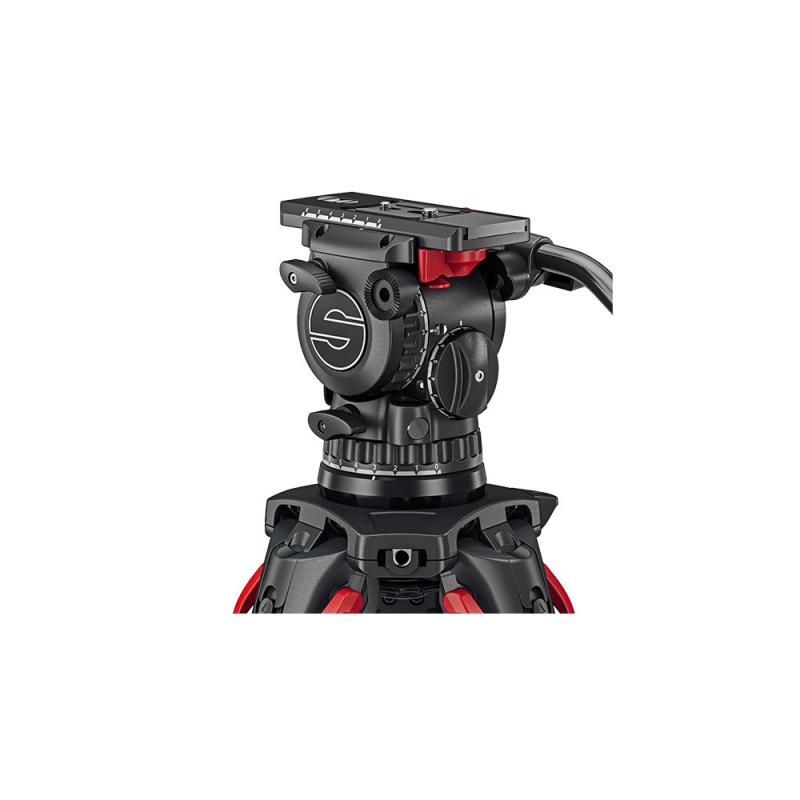

Sachtler Fluid Head aktiv10T

Level up with aktiv, the fluid head built for speed.

When you have just one chance to capture the perfect shot, mount, level and lock the revolutionary aktiv fluid head in seconds.
Sachtler‘s unique SpeedLevel and SpeedSwap technologies deliver the fastest way to place and position your camera; adjust the level in an instant without ever taking your eye off the action; get closer to the ground than ever before for extreme low-angle shots or swap between a tripod, slider, or hand held without missing a beat.
Capture the widest range of shots in the shortest time with aktiv.

Level and lock your head in an instant without missing a second of action. Unique SpeedLevel technology.

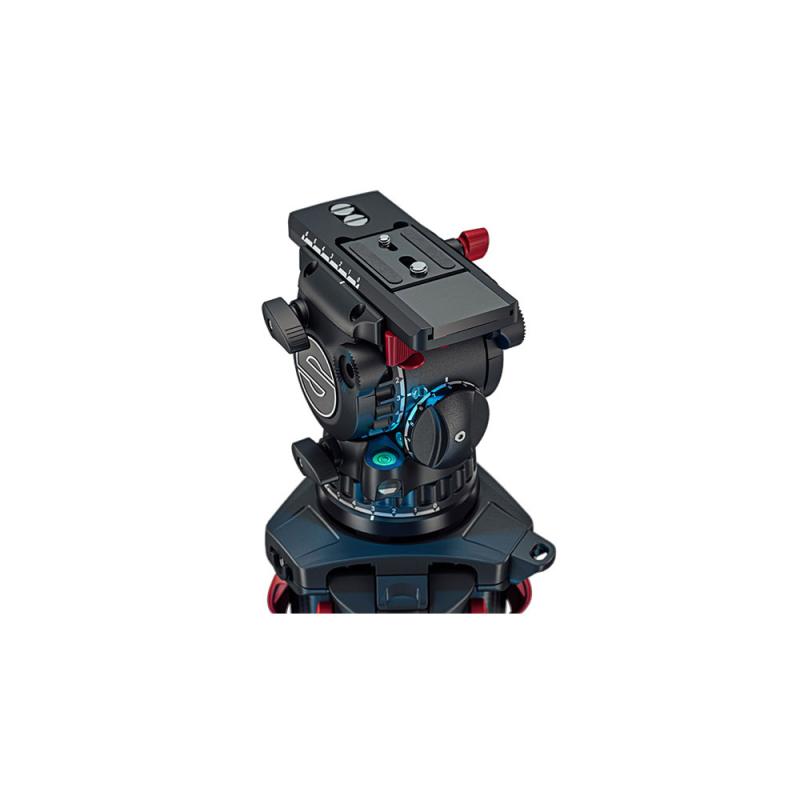

Visible from any height or angle - day or night. Innovative PrismBubble.
Capture extreme low angle shots right down to the ground. Innovative streamlined mounting system.
Switch between tripod and slider in seconds. Revolutionary SpeedSwap system.
Create moving stories, whatever the weather. Performance tested to the extreme.
Touch & Go quick release system. Simply drop the camera plate into the base - the Touch & Go mechanism locks automatically. Pull the lever to remove your camera in an instant.

Technical specifications

Range: aktiv

Payload @ 100mm cog: 0 kg to 12 kg / 0 lb to 26.46 lb

Drag: 7 + 0 drag settings

Counterbalance: 15 + 0 steps

Bowl Size: 100 mm

Camera Plate: Touch & Go plate S

Sliding Range: 60 mm / 2.36 in

Weight: 3 kg / 6.61 lb

Tilt Range: 90° to -70°

Pan Bar Type: Pan bar DV 75

Pan Bar Count: 1

Pan Bar Length: 43 cm / 16.93 in

Pan Bar Attachment: ⌀ 16/-/28 mm

Level Bubble: Yes, illuminated PrismBubble

Battery Type: CR2032

Temperature Range: -40°C to 60°C / -40 °F to 140 °F

Included items

aktiv™10T fluid head with one pan bar DV and Touch & Go plate S

Pan bar DV 75 (0992SP)

Touch & Go plate S (0364)

aktiv bowl connector 100 mm V2 (S2080-0013)
