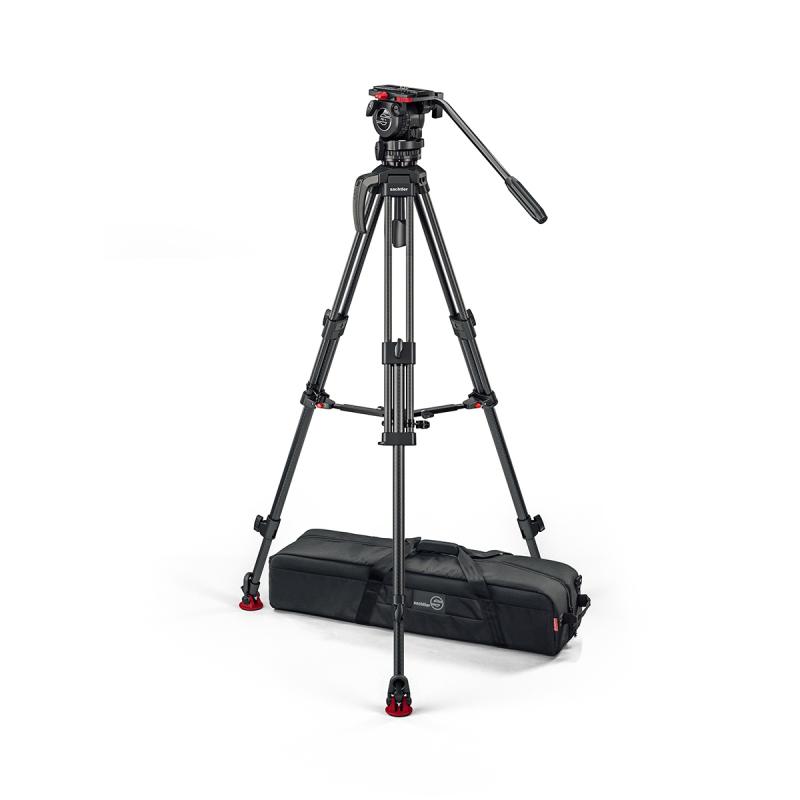

Sachtler System FSB 4 / 2 MS CF

With its 8.8 lb capacity and compact size, the Sachtler FSB 4 Fluid Head is ideal for supporting small handheld camcorders and video-enabled DSLRs. As the only head in its class to feature Sachtler's Sideload mechanism, the FSB 4 boasts an exceptionally large sliding range of 4.7". Along with a 5-step counterbalance, this ensures extremely quick and precise balancing. At the same time, no-compromise vibration damping allows for extremely subtle and finely graded movement.

Long sliding range of camera plate

Robust metal housing

Tested Speedbalance technology

Compatible with SOOM and the Sachtler FSB Cell

Technical specifications

Camera Mounting: 1/4"-20 Screw with Locating Pin (Sideload Quick Release w/ Sliding Balance Plate: Sideload Plate S)

Head Type: Fluid Head

Base Mount: 75 mm Half Ball

Counter Balance: Incremental 3-Step

Drag Control: Yes

Independent Pan Lock: Yes

Independent Tilt Lock: Yes

Vertical Tilt: +90° to -70°

Load Capacity: 8.8 lb / 4 kg

Bubble Level: Yes

Weight: 5.3 lb / 2.4 kg

Included items

Sachtler FSB 4 Fluid Head

Sachtler Pan Handle DV 75

Sachtler Sideload Plate S/Ace Tripod QR Plate

Registration Extension: 2-Year (US Only)

Sachtler DV 75 S Padded Bag

Shoulder strap

Registration Extension: 2-Year (US Only)

Carbon Fiber Tripod Legs

Mid-Level Spreader
