Shape Matte Box Swing-Away/Clip on

The SHAPE Matte Box Swing Away is a silicone matte box mounted on a CNC aluminum main frame with an outer diameter of up to 124 mm. It provides a wide field of view for a variety of wide-angle lenses.

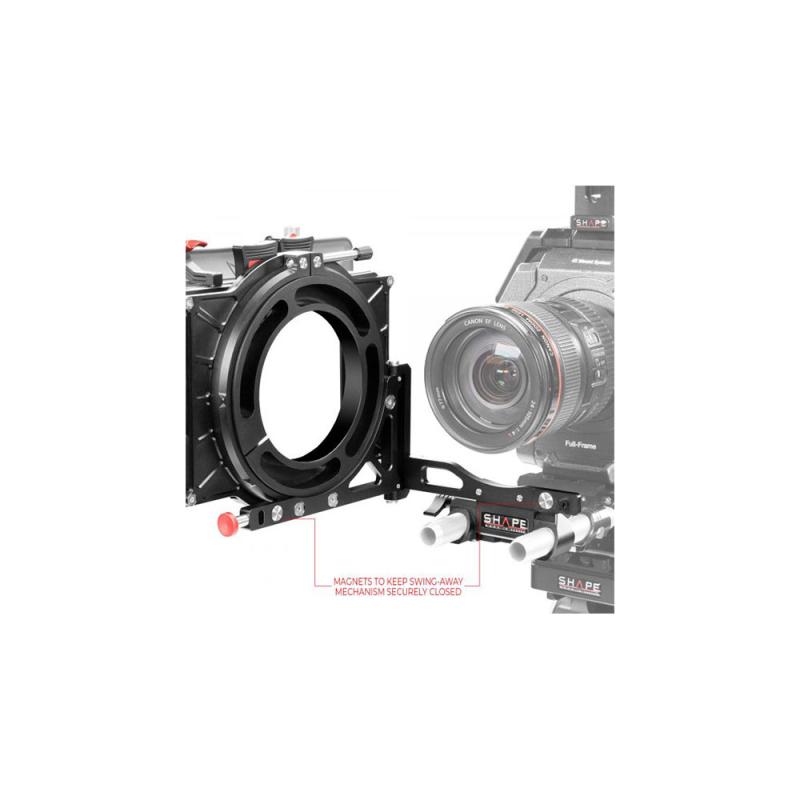

Two 4x5.6 filter trays (one rotary) with easy access handles that allow one-handed filter changes. 4x4 filters can also be installed in the trays. The frame includes two stops at the bottom of the filter trays section to prevent the filters from falling through. The removable swing-away module makes lens changes a snap. A spring pin helps to lock the mechanism closed without manually setting the pin. 2 magnets hold it in place when closed.
Removable height adjustable rod block with one tightening knob allows micro-adjustment of height, ensuring compatibility with a wide range of lenses. The rod block can be re-installed directly on the main frame for a straight configuration. The complete kit allows three different configurations, (swing-away, straight and clip-on).

Removable light carbon fiber french flag can be attached to the top to prevent flares. A series of adapter rings are included in the kit:

Key Features

Lightweight and compact design

Removable silicone shade box

Swing-away system

15mm LWS removable rod bracket

Two 4×5.6 filter trays (one rotary)

Three different configurations in one kit (Swing-away, straight, clip on)

6 removable adapter rings and carbon fiber French flag

Technical specifications

Lens Compatibility: 124 mm Clamp with 67/72/77/82/87 mm Adapter Included
Attachment Method: Rod Ports (15 mm LWS / 60 mm Spacing via Included Slide-On Adapter)
Removable Filter Trays: 1 x 4 x 5.65" (Slide-In)
Removable Filter Trays: 1 x 4 x 5.65" (Slide-In, Holds 2 Filters)
Swing-Away: Yes
Flags: 1 x Top Flag
Material: Frame: Aluminum
Material: Flag: Carbon Fiber
Dimensions: 9.5 x 7 x 4" / 24.1 x 17.8 x 10.2 cm
Weight: 1.9 lb / 0.9 kg
Package Weight: 3.155 lb
Box Dimensions (LxWxH): 11.9 x 7.8 x 4.3"

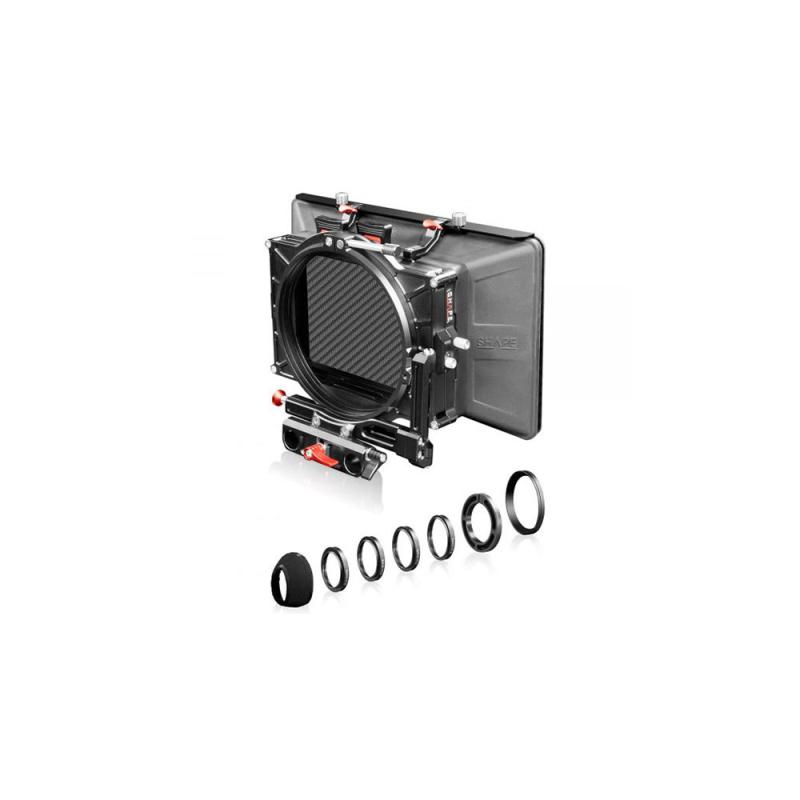

Included items

SHAPE Swing-Away Matte Box
Silicone Shade Box
15mm LWS Rod Bracket
2 x 4 x 5.6" Filter Tray
87-67mm Threaded Adapter Ring
87-72mm Threaded Adapter Ring
87-77mm Threaded Adapter Ring
87-82mm Threaded Adapter Ring
124-87mm Clamp-On Adapter Ring
124mm Fabric Knicker
Carbon Fiber Top Flag
Limited Lifetime Warranty
