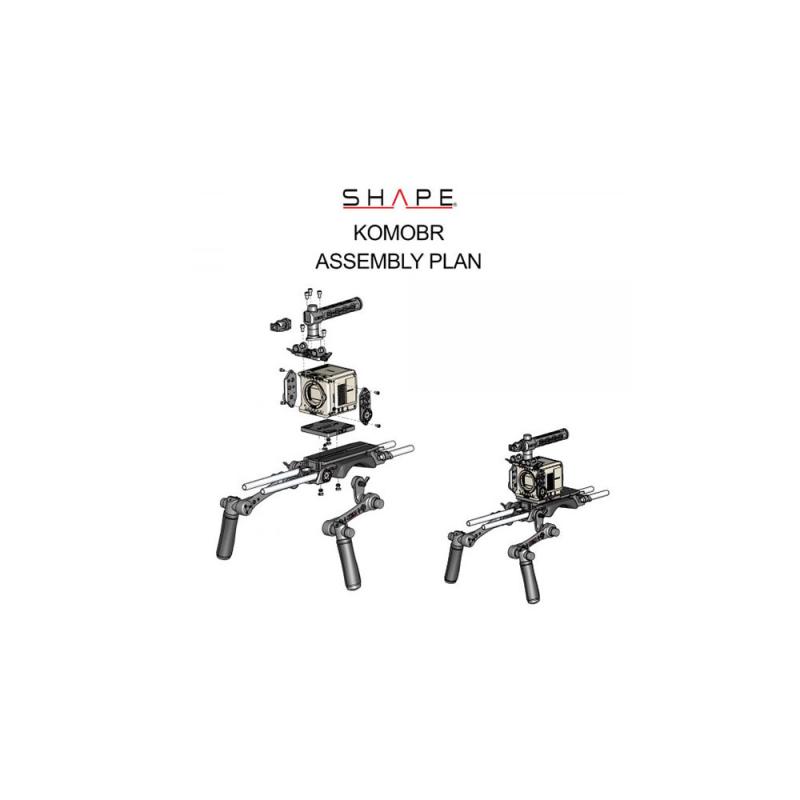

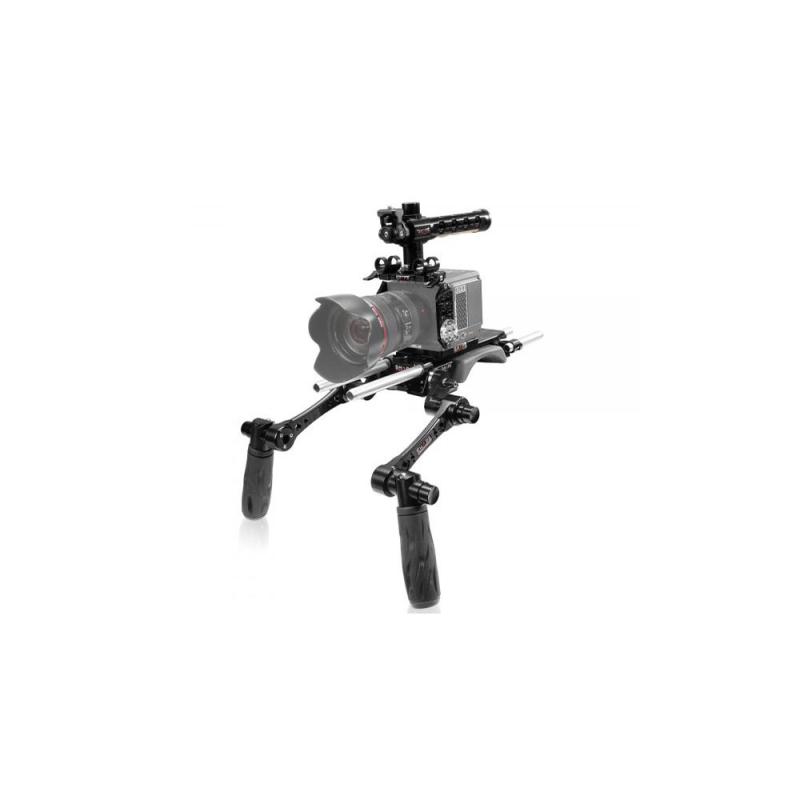

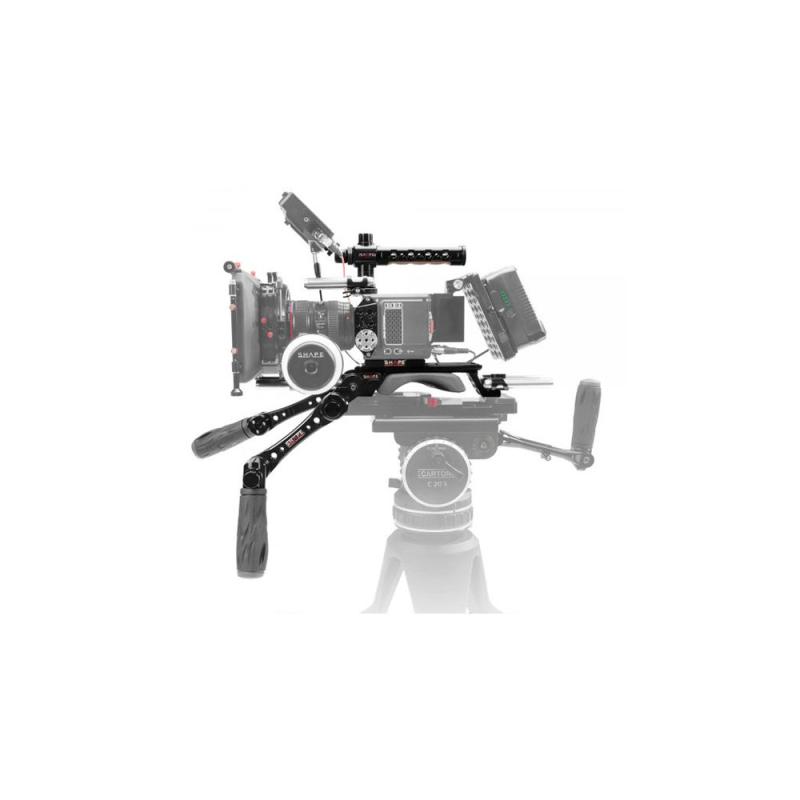

Shape RED KOMODO & KOMODO 6K Production Pack

Designed to match the RED KOMODO & KOMODO 6K Production pack optical center with or without the expander module
Compact REVOLT shoulder baseplate (BP20)
Quick handle Arri rosette with black Push-button system (Hand15)
Patented Push-button technology
Push, adjust, release, and then its lock

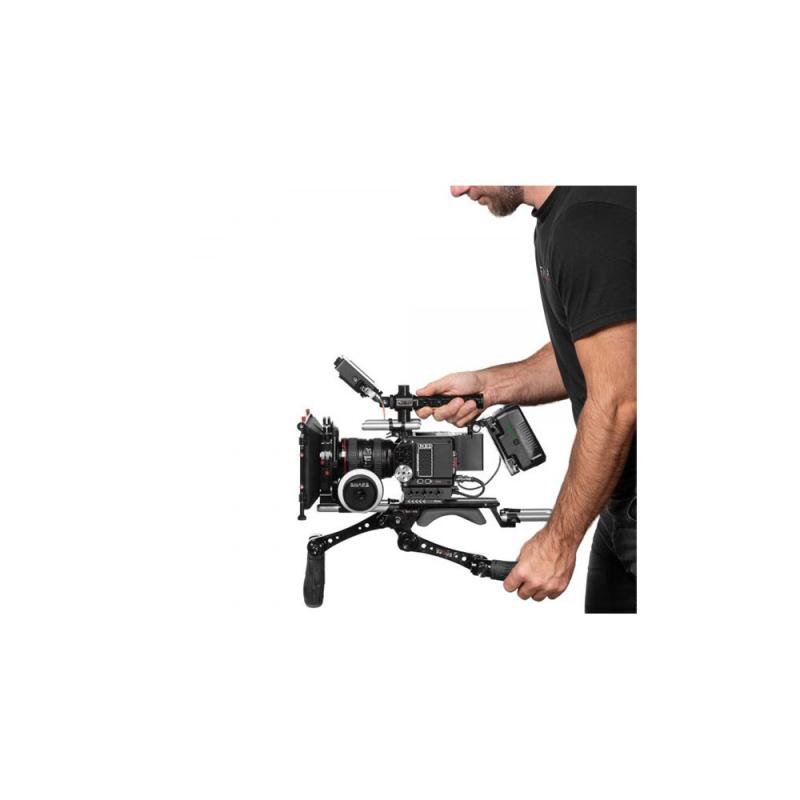

Padded and comfortable Shoulder Pad
L-shaped top handle with Push-Button Technology
Top handle made of CNC aluminum and wooden Canadian maple
Top handle feature a tilting bracket to mount a monitor, a video light, or a microphone (up to 4.4 lb)
Top plate designed with 15 mm LW rod bloc clamp
Side plates designed with ARRI rosette mount
Cage, handle and baseplate feature several anti rotating threaded holes (3/8-16, 1/4-20)
Made of CNC aluminum

Technical specifications

Rod Standard: 15 mm LWS / 60 mm Spacing
Battery Plate Type: No

Accessory Mounting
Cage, Top:
• 9x 1/4"-20 Female Thread
• 4x Anti-Twist 1/4"-20 Female Thread
• 1x Anti-Twist 3/8"-16 Female Thread
Cage, Sides:
• 4x Anti-Twist 1/4"-20 Female Thread
• 4x Anti-Twist 3/8"-16 Female Thread
Top Handle, Top:
• 3x 1/4"-20 Female Thread
• 4x Anti-Twist 3/8"-16 Female Thread
Top Handle, Sides
• 6x 1/4"-20 Female Thread
• 8x ARRI Anti-Twist 3/8"-16 Female Thread

Camera Mounting: 1/4"-20 Male Screw, Hex 4 Male Screw
Tripod Mounting: No
Rod Ports: 2x 15 mm Rod Port
Shoe Mounting: Top Handle, Front: 1x Cold Shoe
Rosettes: Cage, Sides: 2x ARRI Rosette w/ M6 Female Thread
Cable Clamp: No
Support Type: Cage
Grip Type: Topside Handgrip
Camera Compatibility: RED KOMODO
Materials: Aluminum, Wood
Dimensions: 7.6 x 7.2 x 4.4" / 19.3 x 18.3 x 11.2 cm
Weight: 1.38 lb / 0.63 kg
Package Weight: 1.685 lb
Box Dimensions (LxWxH): 9.7 x 4.4 x 3.3"

Included items

SHAPE Camera Cage with Top Handle for RED KOMODO
Top Handle with Tilting Bracket
Top Plate
2 x Side Riser Plate with ARRI Rosette
2 x SHAPE 15mm LW Clamp for Top Handle Grip
2 x 1/4"-20 Socket Head Cap Screw
4 x M4 Screw
3mm Allen Key
3/16" Allen Key
Limited Lifetime Warranty
SHAPE Compact Quick Handle ARRI Rosette (Black)
2 x Quick Handle Rosette
2 x M6 Metric Screw
Limited Lifetime Manufacturer Warranty
SHAPE Compact Revolt Shoulder Baseplate
SHAPE Replacement Pad for REVOLT VCT Universal Baseplate
SHAPE 15mm Aluminum Rods (Pair, 8")
SHAPE 15mm Aluminum Rods (Pair, 4")
2 x 1/4"-20 Screw
2 x 3/8"-16 Screw
3mm Allen Wrench
Limited Lifetime Manufacturer Warranty
SHAPE 15mm Aluminum Rods (Pair, 8")
Limited Lifetime Manufacturer Warranty
SHAPE 15mm Aluminum Rods (Pair, 4")
Limited Lifetime Manufacturer Warranty
