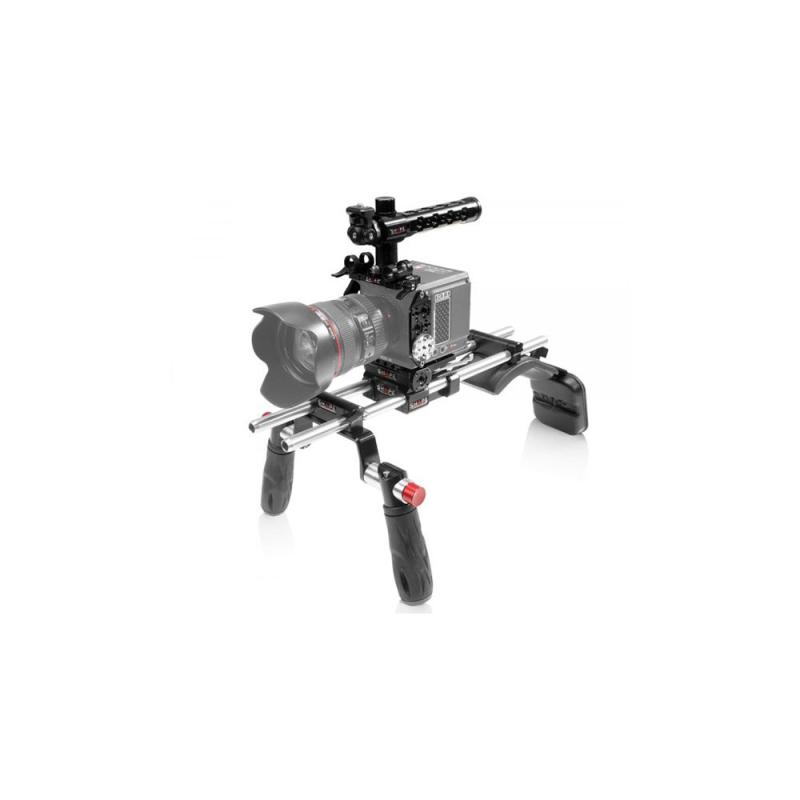

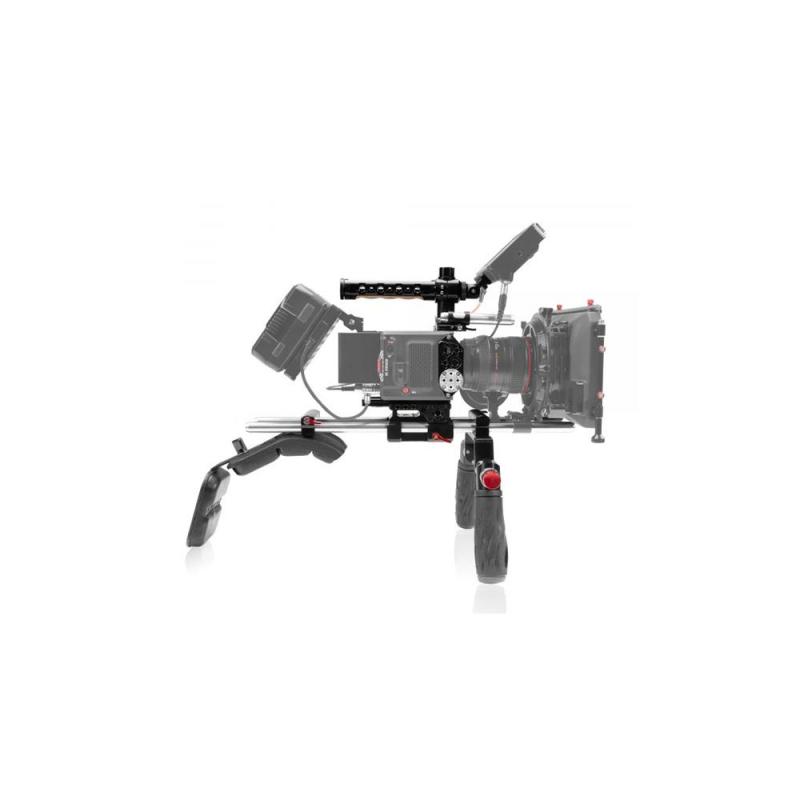

Shape RED KOMODO & KOMODO 6K Production pack shoulder mount

Designed to match the RED KOMODO optical center with or without the expander module
Quick Handle with Rod Bloc and Push-button System
Padded and comfortable Shoulder Pad
15 mm LW Baseplate system with adapter plate and sliding dovetail for RED KOMODO camera
L-shaped top handle with Push-Button Technology
Top handle made of CNC aluminum and wooden Canadian maple
Top handle feature a tilting bracket to mount a monitor, a video light, or a microphone (up to 4.4 lb)
Top plate designed with 15 mm LW rod bloc clamp
Side plates designed with ARRI rosette mount
Cage, handle and baseplate feature several anti rotating threaded holes (3/8-16, 1/4-20)
Made of CNC aluminum

Technical specifications

Support Type: Baseplate, Rod Support System
Grip Type: No
Rod Standard: 15 mm LWS / 60 mm Spacing
Included Rods: 2x 12" / 30.5 cm 15 mm Aluminum Rod
Battery Plate Type: No
Accessory Mounting: Baseplate, Sides: 2x ARRI Anti-Twist 3/8"-16 Female Thread
Camera Mounting: 1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting: Baseplate: 1/4"-20 Female Thread, 3/8"-16 Female Thread
Rod Ports: Baseplate, Front: 2x 15 mm Rod Port
Shoe Mounting: No
Rosettes: Not Specified by Manufacturer
Materials: Aluminum
Dimensions: 12 x 3.75 x 2.5" / 30.5 x 9.53 x 6.3 cm
Weight: 1.56 lb / 0.71 kg
Package Weight: 1.84 lb
Box Dimensions (LxWxH): 13.3 x 4.4 x 2.3"

Included items

SHAPE 15mm Lightweight Baseplate for RED KOMODO
15mm LWS Baseplate
Adapter Plate
Dovetail Plate
SHAPE 15mm Aluminum Rods (Pair, 12")
Limited Lifetime Warranty
SHAPE Camera Cage with Top Handle for RED KOMODO
Top Handle with Tilting Bracket
Top Plate
2 x Side Riser Plate with ARRI Rosette
2 x SHAPE 15mm LW Clamp for Top Handle Grip
2 x 1/4"-20 Socket Head Cap Screw
4 x M4 Screw
3mm Allen Key
3/16" Allen Key
Limited Lifetime Warranty
SHAPE Quick Handle + Rod Block
Limited Lifetime Manufacturer Warranty
SHAPE Mini Composite Shoulder Pad
SHAPE Rod Block
SHAPE Camera Screw Knob (1/4"-20)
Limited Lifetime Manufacturer Warranty
SHAPE Back Pad
Limited Lifetime Manufacturer Warranty
SHAPE 15mm Aluminum Rods (Pair, 18")
Limited Lifetime Manufacturer Warranty
