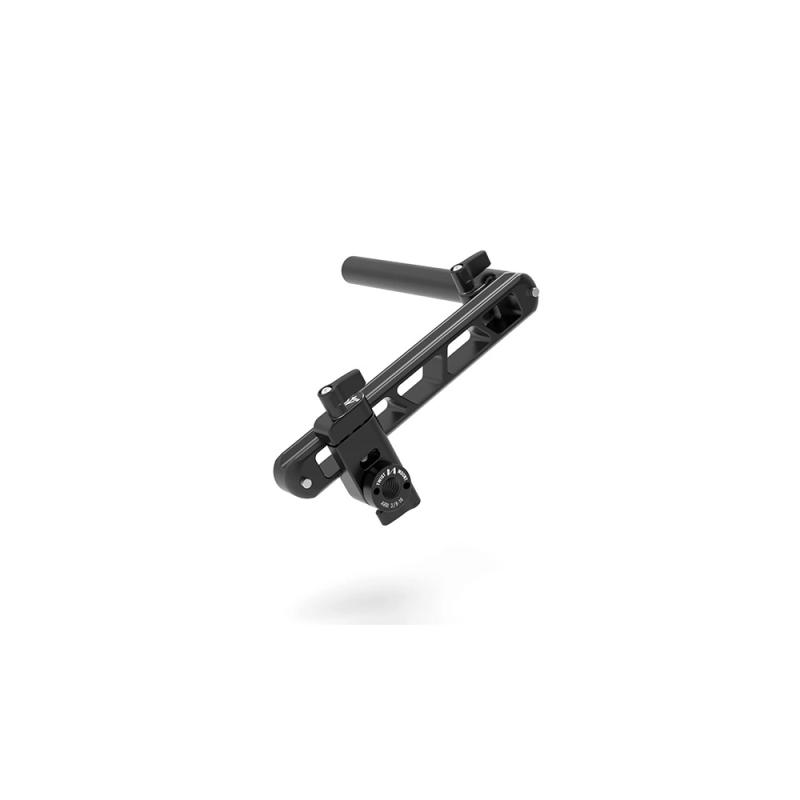

TWIST Mount EVF Kit with Female ARRI 3/8-16

TWIST Mount EVF Kit with Knuckle includes the Double Sided NATO Rail to 15mm Rod which can attach to a sideways 15mm rod clamp like the optional items Multi-Function Rod Bracket (MFRB 15mm LW), Single 15mm Rod Clamp (M4 x 20mm), or Canon 1/4-20 Striped Rosette 15mm Rod Clamp (sold separately).

The NATO rail has built in variable friction via the thumbscrew and safety pins are on each end to prevent accidental accessory removal.

Included TWIST Mount EVF Knuckle has a NATO clamp on one end and a variable friction 15mm mount on the other. With the variable friction design, you can grab and twist the monitor without loosening the thumbscrew.

Includes the NATO rail, Knuckle, and female ARRI 1/4-20 Spud

Works with any 3/8-16 product including those with ARRI spaced locating pins (3mm diameter pin on 15mm spacing center to center)

Technical specifications

Mounting: 2x NATO Rail, 1x 15mm Rod

Color: Black

Dimensions:

5.9 x 5.8 x 1.2" / 15 x 14.8 x 3.1 cm

6" / 15.2 cm (NATO Rail Length)

Weight: 2.9 oz / 82 g

Package Weight: 0,093 kg

Box Dimensions (LxWxH): 16.5 x 14,6 x 3,6 cm

Included items

MID49 TWIST Mount Double-Sided NATO Rail to 15mm Rod (6")

MID49 TWIST Mount EVF Knuckle with ARRI 3/8"-16 Thread

Limited 1-Year Manufacturer Warranty
