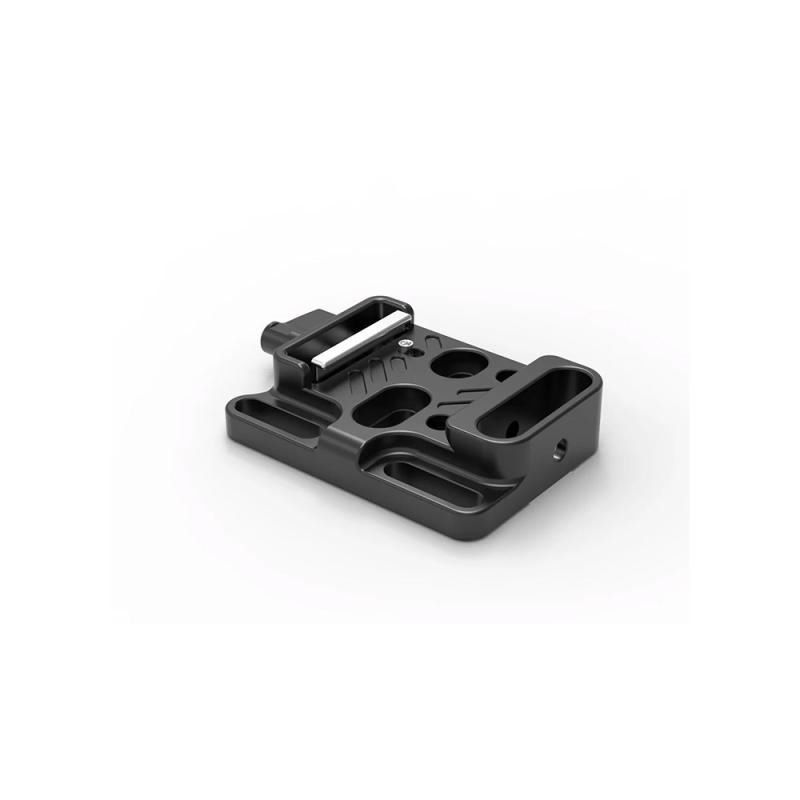

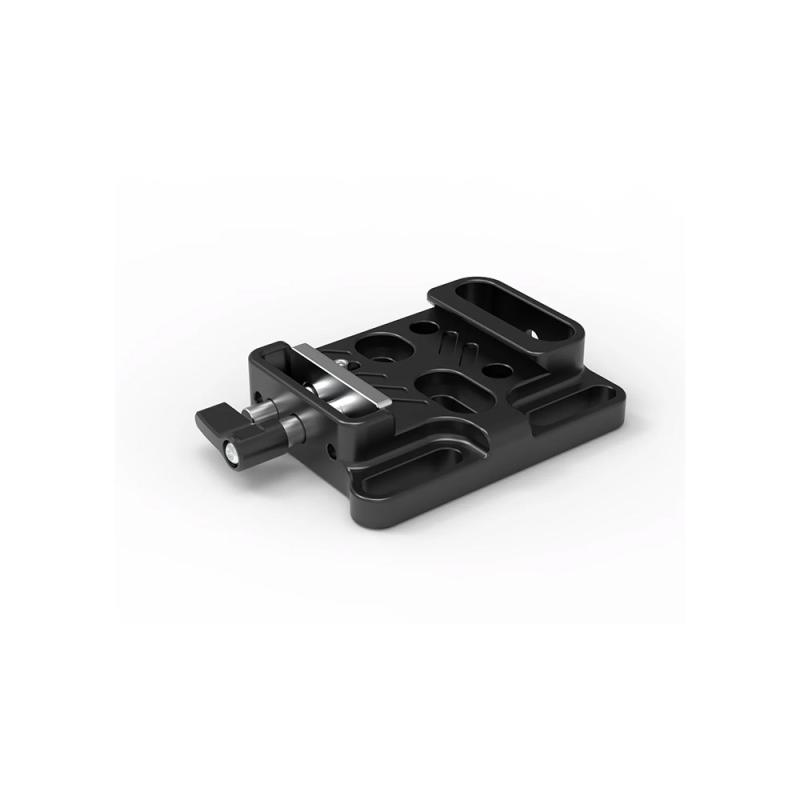

Universal ARCA Clamp

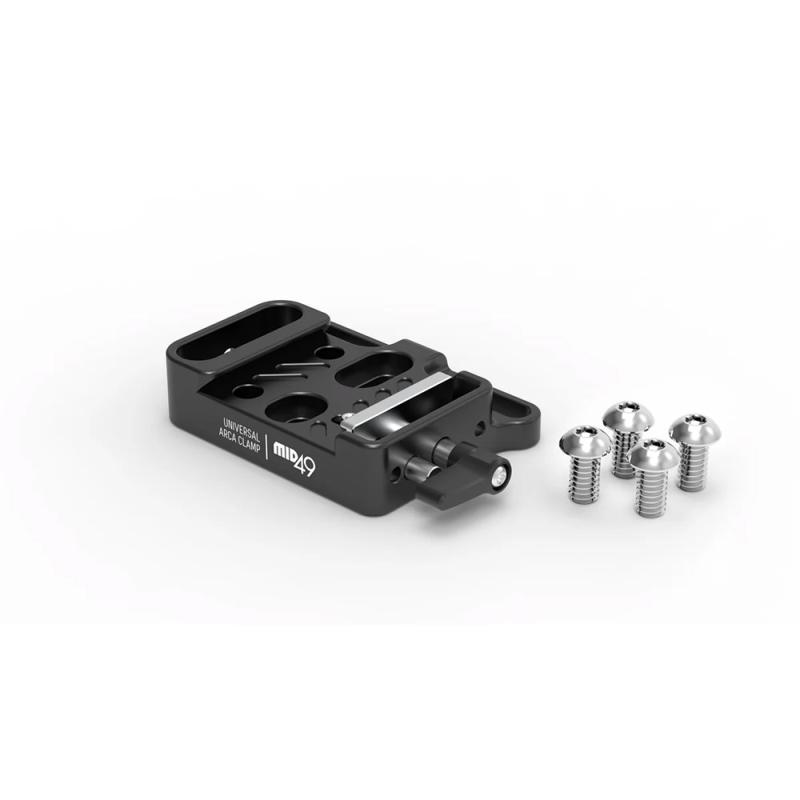

niversal ARCA Clamp attaches to tripod plates using 1/4-20 and 3/8-16 threaded holes on the bottom. It can also be bolted down to cameras, cheeseplates, or other devices using 4 included 1/4-20 x 1/2 socket button head screws.

Front-to-back 1/4-20 screw channels accommodate spacing up to 30mm apart center-to-center.

Side-to-side 1/4-20 screw channels accommodate spacing up to 60mm apart center-to-center.

Technical specifications

Mounting: 1x 1/4"-20 Female, 1x 3/8"-16 Female

Plate Locking Method: Screw Knob

Quick Release Plate Type: Arca-Type

Quick Disconnect System: No

Bubble Level: No

Dimensions: 4.3 x 1.1 x 0.6" / 108 x 28 x 15 mm

Weight: 2.2 oz / 62 g

Package Weight: 0.25 lb

Box Dimensions (LxWxH): 3.8 x 2.75 x 1.25"

Included items

MID49 Universal Arca Clamp

Limited 1-Year Manufacturer Warranty
