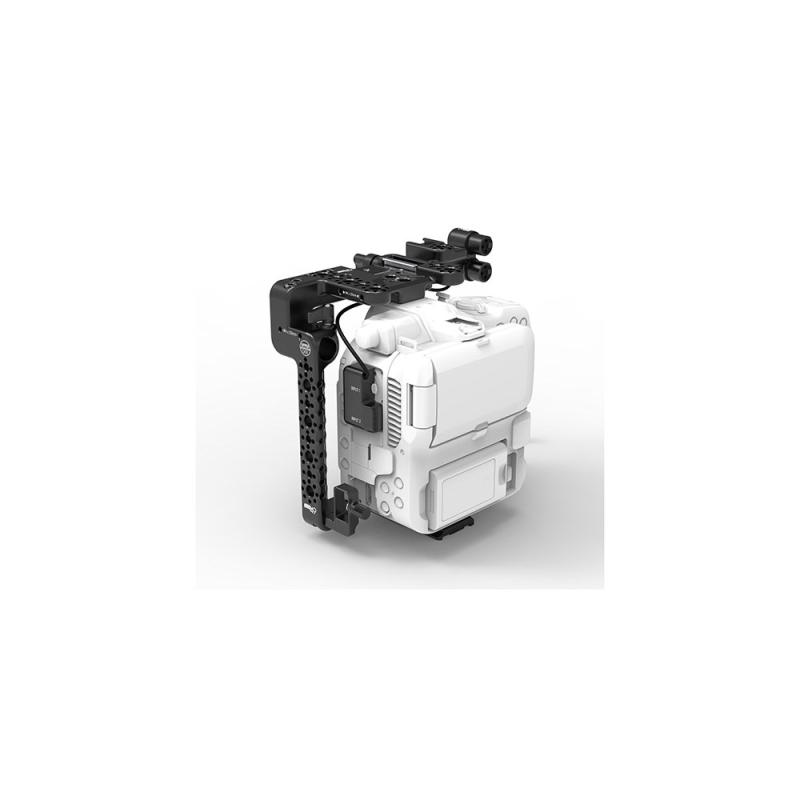

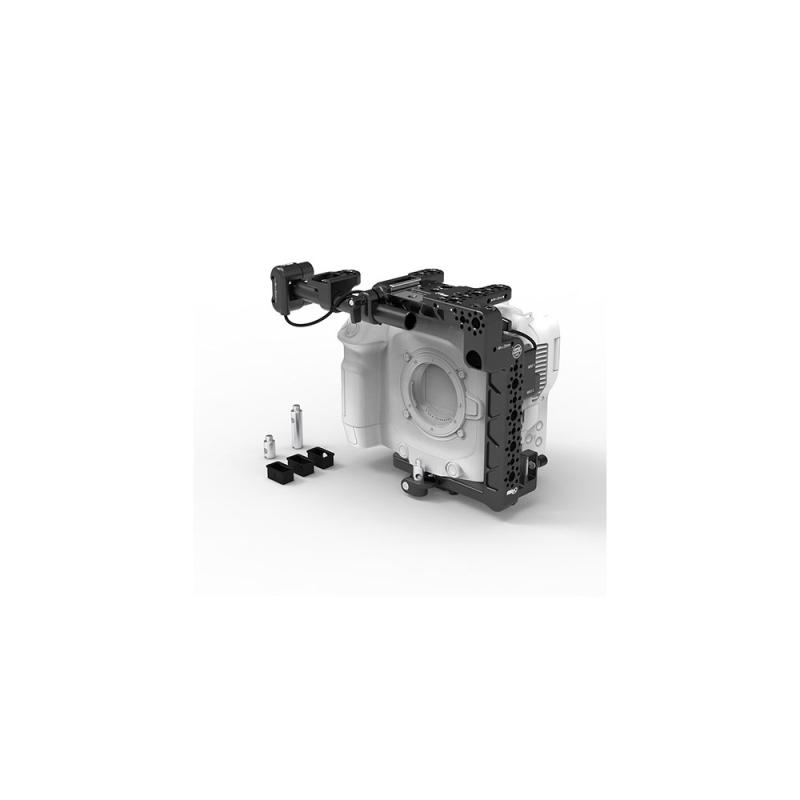

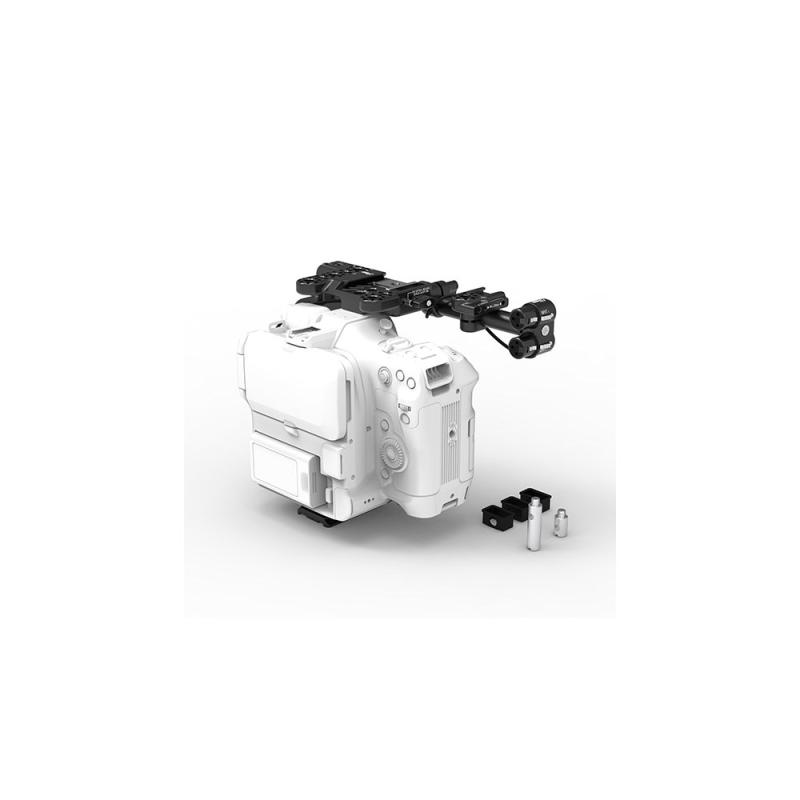

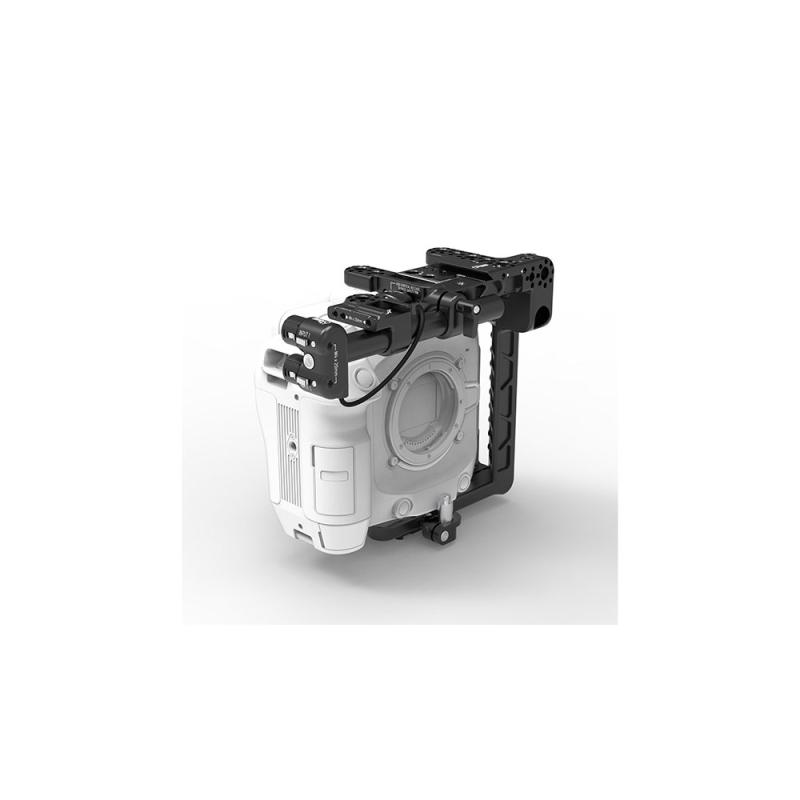

Upper Cage for Canon C80 + Audio Breakout AB-4

Upper Cage for Canon C80 is a form-fitting cage with 1/4-20, 3/8-16 with ARRI accessory pins, and M4x20mm ARRI-spaced threaded holes in several places. In the center channel, a replica of the Canon striped rosette allows the C80's original handle to be attached.

The included top accessory rod holds a combination hot shoe, ARRI 3/8-16, M4x20, and the Canon mic hole pattern for attaching the C80's original microphone shock mount. A special 1/4-20 recess at the end of the rod holds the Audio Breakout AB-4 (Canon C70/C80) and converts the camera's two mini XLRs to standard, full-size XLRs.

HDMI protector clamps cables securely, and front lens support mount attaches to 3rd party lens adapters like Metabones, etc.

Top ARCA Swiss dovetail slot accepts products like our ARCA Top Handle or ARCA Top Plate which are sold separately.

Lower ARCA Swiss dovetail attaches to our Baseline 15mm Baseplate to provide rods at the correct lens height and is also available separately.

Technical specifications

Support Type: Cage

Grip Type: No

Camera Compatibility: Canon EOS C80

Included Rods: Yes

Battery Plate Type: No

Accessory Mounting: Top: 3x Anti-Twist 1/4"-20 Female Thread

                                              5x Anti-Twist 3/8"-16 Female Thread

                                     Side: 4x Anti-Twist 1/4"-20 Female Thread

                                              4x Anti-Twist 3/8"-16 Female Thread

                                              5x M4 Female Thread

                                 Front: 1x Anti-Twist 1/4"-20 Female Thread

                                             1x Anti-Twist 3/8"-16 Female Thread

                                            2x M4 Female Thread

Camera Mounting: 3/8"-16 Male Screw

Tripod Mounting: Built-In Arca-Type Plate

Rod Ports: Front: 3x 15 mm Rod Port

Shoe Mounting: 1x Cold Shoe

Cable Clamp: 1x HDMI Clamp

Package Weight: 1.265 lb

Box Dimensions (LxWxH): 8 x 7.45 x 2.35"

Included items

MID49 Upper Cage for Canon C80

Top Accessory Rod

Hot Shoe/Accessory Thread/Rosette Adapter

2 x Lens Adapter Support

3 x Rubber Cap

Limited 1-Year Manufacturer Warranty

MID49 Audio Breakout AB-4 for Canon C70 & C80
