Astra Bi-Focus Daylight - Litepanels

Astra Bi-Focus Daylight

Maximum flexibility, from spot to flood.

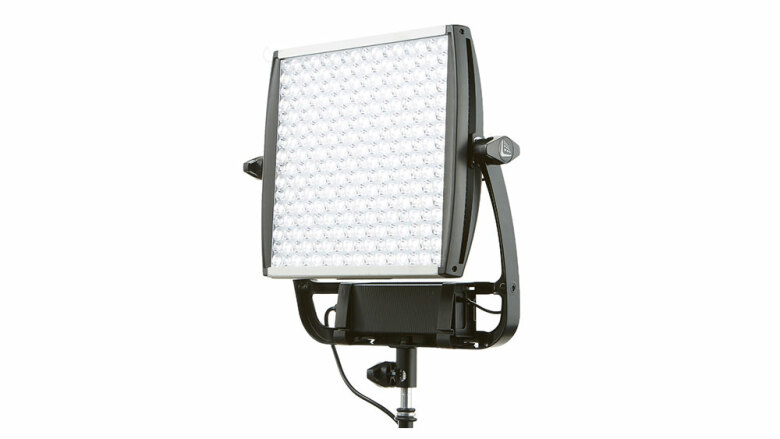

Litepanels’ Astra Bi-Focus Daylight LED Panel creates bright and color-accurate white light that can be instantly adjusted from 15 to 45 degrees to deliver the perfect beam for your needs. Isolate subjects, control light spill or light a wide space with power, performance and beauty all in a lightweight and compact fixture. Astra panels provide industry-leading reliability, with automatic flicker-free performance at any frame rate or shutter angle, and at any intensity level. With a CRI/TLCI rating of 95, the Astra Bi-Focus Daylight LED Panel provides outstanding color rendition. The Astra Bi-Focus Daylight LED Panel adjusts quickly from a tightly focused beam to a wide-range flood, and anywhere in between, providing the ultimate on-location flexibility.

Brighter lights, perfect whites

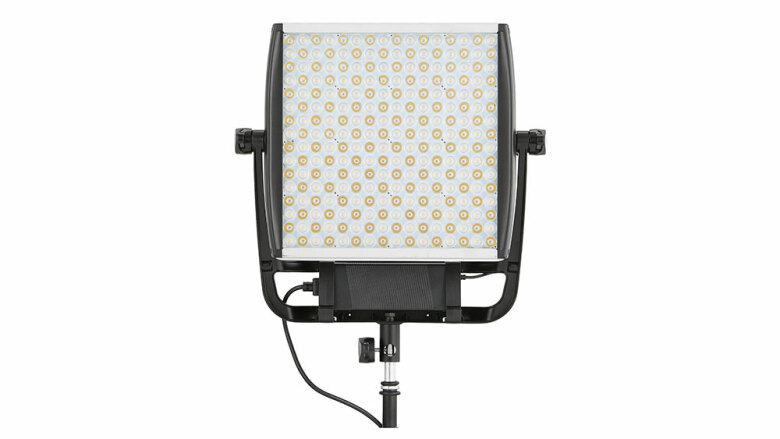

Astra Bi-Focus Daylight LED Panel incorporates custom optics with two lenses to deliver an outstanding 90,364 Lux of brilliant white spotlight or 1,218 Lux of beautiful flood to perfectly illuminate your scene. High-performance LEDs create a longer throw over a wider field with superior color reproduction and exceptional color rendition. All Litepanels fixtures use advanced LED control to create stable and flicker-free light at any intensity and frame rate, with no special timing adjustments required.

Cool & Quiet
Efficient power and thermal management delivers low power-consumption and enhanced reliability. Astra’s dual cooling options mean no overheating and no noise on set. Choose the ultra-quiet active cooling mode or run silent with no fan in passive cooling mode.

Flexible, Modular, Compatible
Remote control of Astra parameters such as – including brightness, color temperature, and cooling is quick and easy with optional communications modules. DMX512 RJ45, DMX512 XLR5 and wireless DMX modules simply slide into a dedicated slot on the back of the fixture and enable simple plug-and-play integration with DMX control systems. The Bluetooth module enables remote control of multiple lights from iOS devices with the free Litepanels SmartLite Director app.

Light any location
Astra Bi-Focus Daylight comes with both US and EU power cables and a universal (100-240 VAC) yoke-mounted power supply. If AC power is unavailable, or you want maximum setup speed and flexibility, Astra panels run on 13-24V DC batteries with an optional Gold Mount or V-Mount battery plate. Battery power is supplied via a durable XLR3 locking power connector for reliability in any environment.

Perfectly Positioned

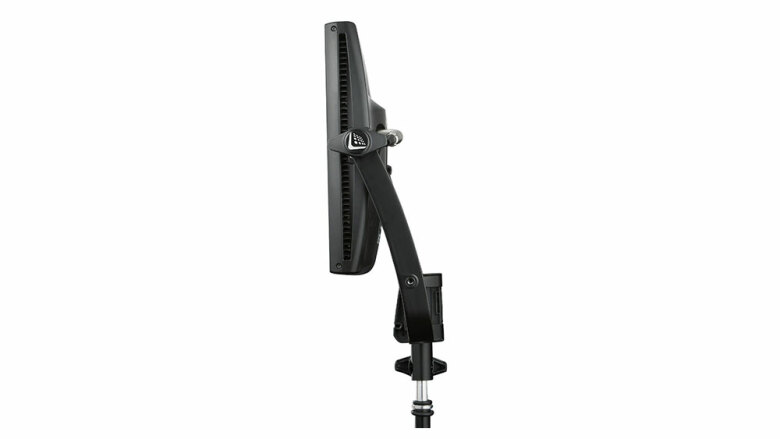

The curved yoke design enables a wide, unobstructed tilt range for plenty of clearance with light shaping accessories. Flexible mounting options include a removable 5/8" TVMP connector for hanging or stand mounting and two 1/4"-20 female taps for alternate mounting points, to position Astra exactly where you need it.

Accessories
Show your subjects in the best light with a wide range of light shaping tools and accessories compatible with the entire Astra family. Aluminum accessory mounting points and lens/filter rails ensure stable and durable attachment of softboxes, barn-doors and diffusers to shape daylight to your will.
