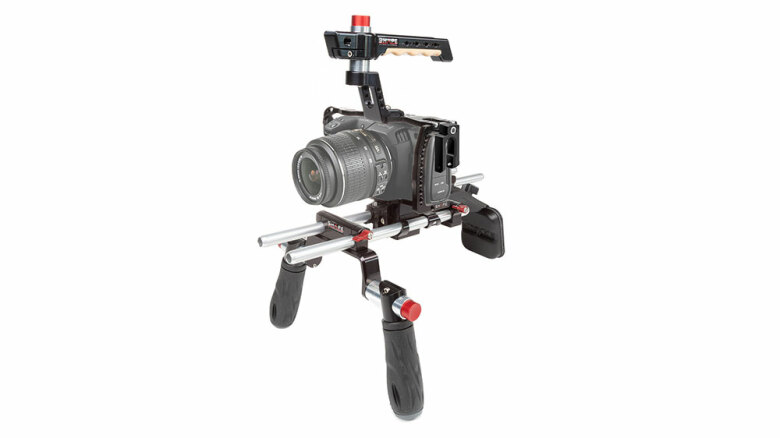

Blackmagic Pocket Cinema 4K/6K Offset Shoulder Mount

Blackmagic Pocket Cinema 4K/6K Offset Shoulder Mount

Cage
Made of CNC Machined Aluminum; Top and bottom of the cage are designed with ¼-20 threaded holes with anti rotating pins to strongly secure the camera position; ¼-20 threaded holes for easy tripod plate attachment; Easy access to the memory card, the battery door, the lens release button and all other controls and outputs;
Cage is designed with a full-sized HDMI cable protector lock on the side to secure the use of your HDMI 4K cable.
Right side of the cage is designed to let you grasp and feel the camera, while the included strap firmly keeps your hand against the camera; Lightweight and robust, easy to assemble and disassemble

Cage’s Mounting option
(1) Cold shoe at the top of the cage to mount accessories like a microphone, Magic Arm (RPB2AHS), or LED; The cage also features several ¼-20 and 3/8-16 threaded holes with anti-rotating pin for additional mounting options.

Removable, ergonomic and robust REVOLT Top Handle with our patented Push-Button technology for fast adjustment
Made of CNC Machined Aluminum and genuine Canadian maple wood for maximum comfort; Quickly and strongly attach the Top Handle to the camera cage with the cold shoe attachment system; Designed to give you a solid and comfortable grip on your camera;

Top Handle’s Mounting option
(1) EVF Mount. Perfect to attach our 15 mm Rod Clamp(15CTH) and our ‘Push Button Arm View Finder Bracket’; (15) Fifteen ¼-20 threaded holes with stoppers. Perfect to strongly attach more camera accessories; (2) Two Cold Shoe Brackets (Front and Back of Handle).

Quick release BasePlate
The Quick Release Plate can be used as a table stand or can be attached to a tripod.

Adjustable Rod Bloc System for a better adjustment of your camera optical center
The rod bloc travel height is adjustable with the help of an Allan Key for an optimal adjustment of your camera optical center, your Matt Box and your Follow Focus; Bottom of the base block designed with a removable Metabones® Support Bracket perfect to support heavier lens; If no Metabones® adapter, simply remove slide the bracket from under the cage with the ¼-20 screw;

Offset Rail Rod Bloc BMOFBRAC
Made of aluminum, the SHAPE Offset Rail Rod Bloc features two rod blocs, enabling you to slide the rods from left to right on a lateral sliding adjustment of 1- 3/4".

SHAPE 15mm Rods (10" and 12") 15TUBE10, 15TUBE12
This pair of 15mm 10"-long rods enables you to use available rod mounted accessories. This pair of 15mm 12"-long rods connects into your camera rig, it extends its length, and lets you add various SHAPE and third-party accessories compatible with 15mm rods.The rods are hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

Quick Handle ROD BLOC SYSTEM WITH PUSH BUTTON
CNC machined parts and hard anodized aluminum for resistance; Compatible with 15mm rods; Single red knob for fast & easy adjustment; Support quick release handgrips, 3 points of adjustment; Ergonomic handles with rubber handgrips for stability and precision; Patented push-button technology for fast adjustment; Individual rotation on a 360° axis; Stainless steel locking mechanism for durability.

Padded Shoulder Mount for Superior Comfort
CNC machined parts; Stainless steel screw; Black Powder Coat Paint Mini composite shoulder pad and a padded back pad for a comfortable and stable position while shooting Helps your body support the weight of the camera and its accessories Sliding Rod block on the top is used to hold 15mm rods; Single red knob for fast & easy adjustment; Threaded hole at the back (1/4-20 to attach a BASE COUNTER WEIGHT to the rear of the same rods).
