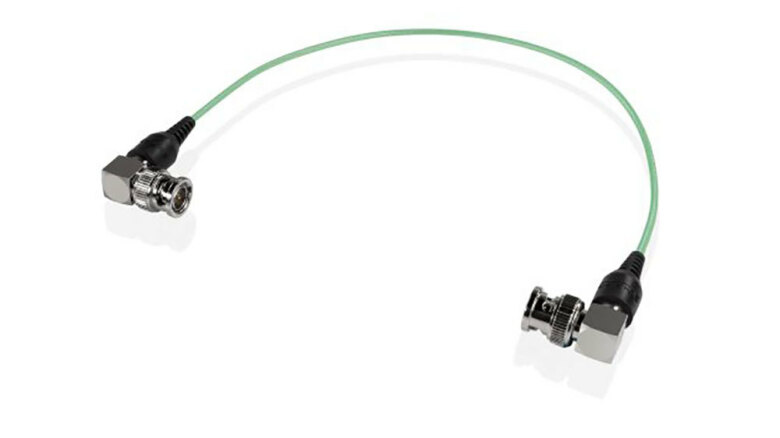

Cable BNC Skinny 90-Degree 12 in. (30 cm) Green

Cable BNC Skinny 90-Degree 12 in. (30 cm)

At only 2,5mm in diameter this thin 90-degree male to male BNC Cable from SHAPE can be use with nearly any component you have in your rig and will increase the accuracy of the signals sent from the video adapter.

• Thin and high-quality 90-degree male to male BNC cable designed to support the transfer of both serial data and video signals
• Compatible with HD cameras, gimbals, monitors, EVF, antennas, SDI Wireless TX/RX set or other equipment’s with Serial Digital Interface (SDI)

Features
Color: Available in Red, Green, Blue and Black
Length: 12" (30,48 cm)
Thin Gauge Outer Diameter: 2,5 mm
90-degree Male BNC, 90-degree Male BNC
Impedance: 75 ohms
Frequency: DC to 1 GHz
VSWR (Voltage Standing Wave Ratio): 1,2 MAX
Connect SDI equipment’s
