Description

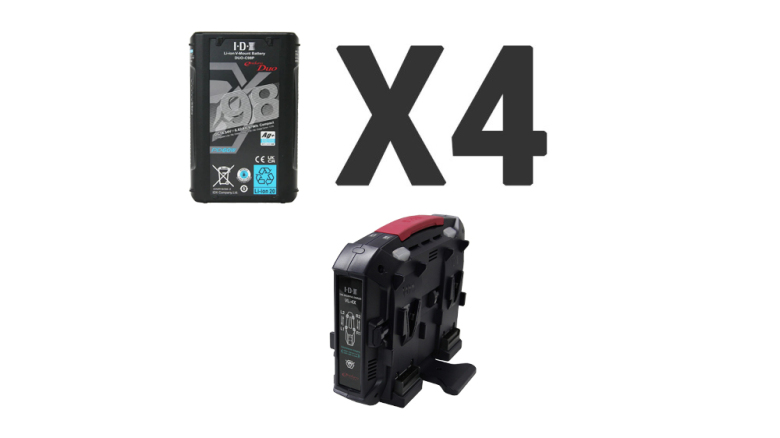

Kit 4 x DUO-C98P + 1 x VL-4X
Kit from IDX with four DUO-C98P Battery and one VL-4X Charger.
The DUO-C98P is the worlds most compact high capacity IATA friendly(<100Wh) Li-ion professional battery with multiple power outputs – perfect for handheld gimbal and aerial setups. The DUO-C98P comes equipped with two built-in D-Taps and a single built-in USB-C input/output to power ancillary accessories and also to charge battery.
The VL-4X is a slim, lightweight, affordable 4-channel charger. Dual Simultaneous/Sequential feature charges up to 4 batteries total with any 2 simultaneously. The included AC adapter doubles as a 90W DC power supply.
Included items
- Included items:
x4 - DUO-C98P Battery
x1 - VL-4X Charger
Specification
- Specification:
DUO-C98P Specification
Battery Capacity: 97Wh (14.54V,6.62Ah)
Max.Output Voltage: 16,8V DC
Nominal Voltage: 14,54V DC
Maximum Discharge Current: 10,5A ‡
D-Tap: 80W each
USB-C PD: max. 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A)
End Voltage: 11V
Battery Protection: Reverse charge, Over charge, Over discharge, Over current, Temperature protection
Ambient Temperature
To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (one month)
Dimensions: 95×146×39 mm
Weight: 640 grams approx.
VL-4X Specification
Input Voltage: AC 100~240V 50/60Hz.
Power Consumption: MAX 220VA.
Quick Charge Current: 2.7A max.
DC Output:
Maximum output in DC operation: DC 15V / 6A (Max 90W)
Battery Output: Battery voltage through output/Battery max. discharge current
Operating Temperature: 0°C ~ 40°C.
Dimensions: 90.5(W) x 177(H) x 250(D) mm.
Weight: charger body 1100g approx. / ac adapter 450g approx.
