mini Matte Box

mini Matte Box

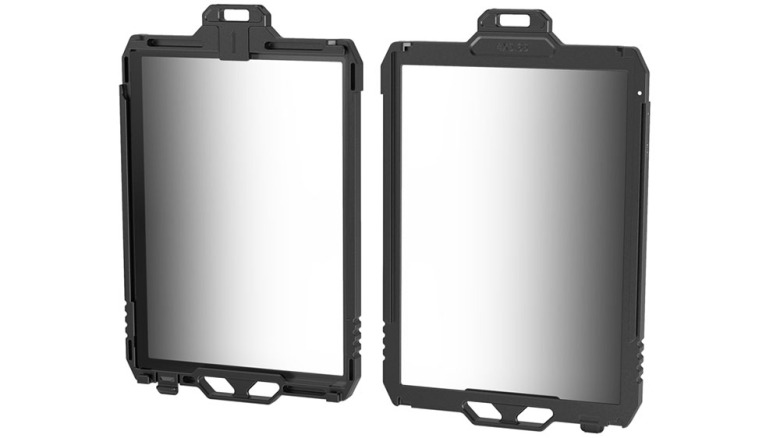

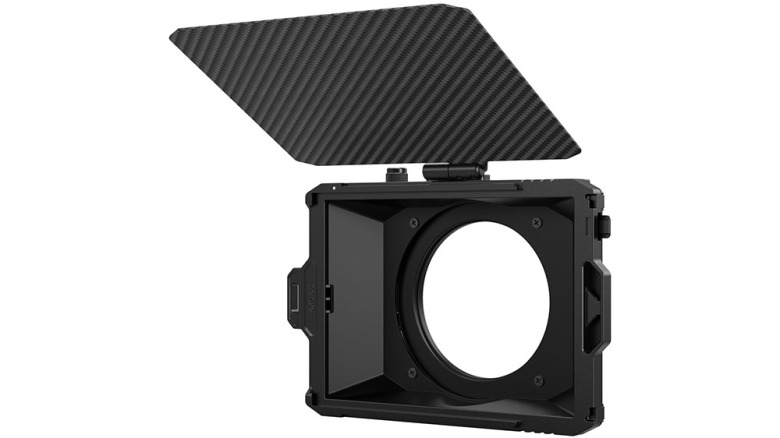

SmallRig mini Matte Box 3196 is designed for DSLRs and mirrorless cameras to prevent sunlight or other light from causing glare and flare for controlling images on the screen. Its clamp connector works with adapter rings in various sizes (52-95mm; 55-95mm; 58-95mm; 62-95mm; 67-95mm; 72-95mm; 77-95mm; 82-95mm; 86-95mm) or can be attached directly to 95mm lens; its adapter ring fits circular CPL, ND filter and other circular filters of up to 92.5mm. The filter tray 3319 can be quickly mounted onto the matte box via a NATO clamp and supports multiple 4 x 5.65" plug-in filters of up to 4mm in thickness. The filter tray 3320 (purchase separately) can be quickly mounted onto the matte box via a NATO clamp and supports multiple 4 x 4" plug-in filters of up to 4mm in thickness at the same time. It is easy to store and prevent scratches and fingerprints while replacing plug-in filters. The adjustable carbon-fiber top flag blocks sunlight or strong light and also prevents internal reflections with its anti-reflective design. Top 1/4"-20 threaded holes enable easy attachment of other accessories and anti-twist 1/4"-20 threaded holes on the bottom suit 15mm LWX Rod Support 3411.

Designer: Victor Tang, Jerry Zhang

Note:
1. Not 100 x 100mm filters compatible.
2. Adapter rings kit (52/55/58/62/86-95mm) 3383 is separately available.
3. Max load capacity: 1kg.

Compatibility:
1: Standard 52/55/58/62/67/72/77/82/86mm lens
2: Round filters of up to 92.5mm
3: 52/55/58/62/67/72/77/82/86-95mm adapter ring
4: 4 x 5.65" and 4 x 4" plug-in filters of 4mm in thickness.

Key Features

- Portable and compact.
- Holds plug-in filters and round filters at the same time.
- Compatible with CPL, ND filter, etc, easy assembly and disassembly.
- Supports multiple 4 x 5.65" and 4 x 4" filters.
- Fits various lenses (52/55/58/62/67/72/77/82/86mm).

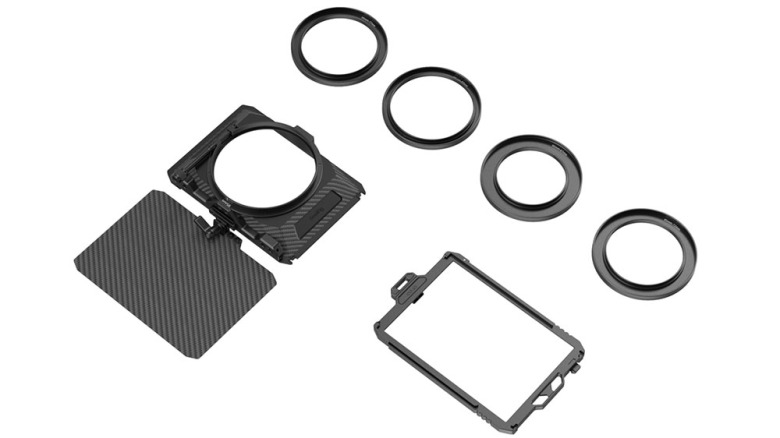

- Comes with 4 adapter rings (67/72/77/82mm), meet users' common shooting needs.
- Features 1/4"-20 threaded holes for additional accessories on the top and anti-twist design on the bottom.
