Description

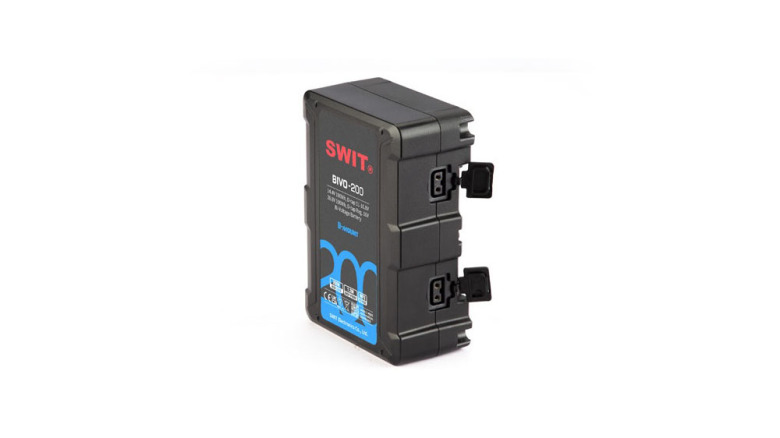

SWIT BIVO-200 160Wh 14V/28V High Load B-Mount Battery
BIVO-200 is a 14.4V(10.8-16.8V) and 28.8V (22-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears. The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.
Key Features
- 14.4V/28.8V Bi-voltage B-mount
- 196Wh high capacity
- 200W constant high load
- 33.6V 100W fast charging
- D-tap 11-16.8V output ×2

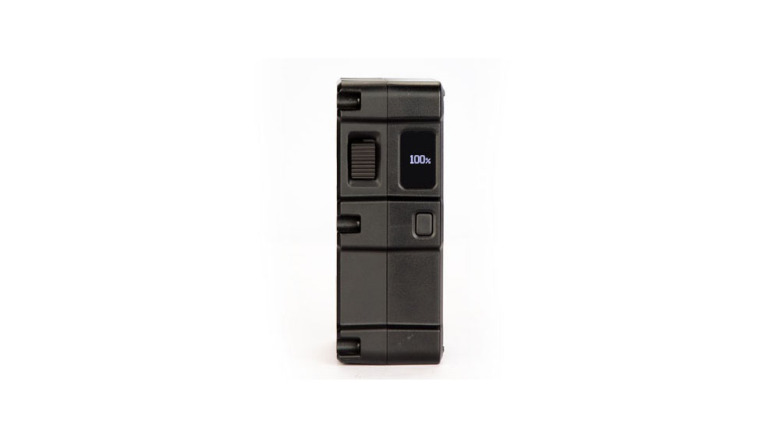

- OLED power info display
- Built-in LED torch
- Strong 1.2m drop off proof
- Multiple circuit protections
Included items
- Included items:
- BIVO-200 196Wh Bi-voltage B-mount Battery Pack
Specification
- Specification:
Voltage: 28.8V (21.6-33.6V) & 14.4V (10.8-16.8V) Capacity: 196Wh Constant load: (28.8V) 200W, 8A/(14.4V) 200W, 16A Charging: 33.6V 100W fast charging Mount Type: B-mount, D-tap ×2 14.4V status: 10.8-16.8V out, 200W load 28.8V status: 16V regulated out, 50W load Charging Temperature: 0-40degr.C Discharging Temperature: -20degr.C-50degr.C (Capacity and Max Load may decrease when operating below 0degr.) Net weight: 1.1kg, With package1.15kg Dimensions: 144×100×54mm
