SWIT BIVO-290 290Wh 14V/28V High Load B-Mount Battery

Description

SWIT BIVO-290 290Wh 14V/28V High Load B-Mount Battery

BIVO-290 is a 14.4V(10.8-16.8V) and 28.8V (21.6-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears.
The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.

Key Features

- 14.4V/28.8V Bi-voltage B-mount
- 290Wh high capacity
- 250W constant high load
- 33.6V 100W fast charging
- D-tap 11-16.8V output ×2

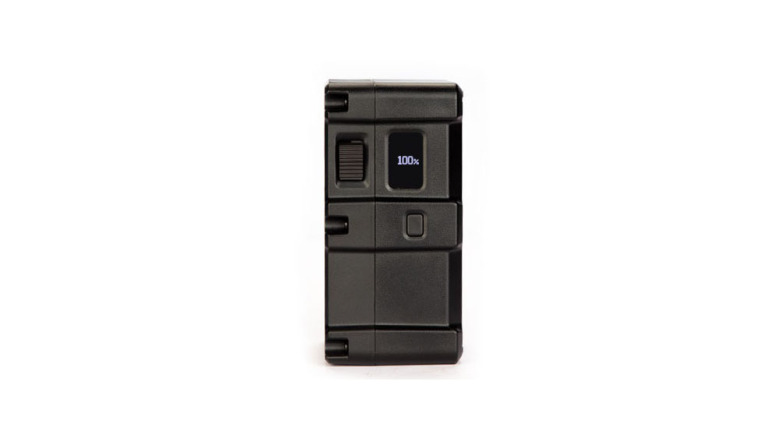

- OLED power info display
- Built-in LED torch
- Strong 1.2m drop off proof
- Multiple circuit protections

Included items

Included items:
- BIVO-290 290Wh Bi-voltage B-mount Battery Pack

Specification

Specification:

Voltage:	28.8V (21.6-33.6V) & 14.4V (10.8-16.8V)
Capacity:	290Wh
Constant load:	(28.8V) 250W, 10A/(14.4V) 250W, 20A
Charging:	33.6V 100W fast charging
Mount Type:	B-mount, D-tap ×2
14.4V status:	10.8-16.8V out, 250W load
28.8V status:	16V regulated out, 50W load
Charging Temperature:	0-40degr.C
Discharging Temperature:	-20degr.C-50degr.C (Capacity and Max Load may decrease when operating below 0degr.)
Net weight:	1.52kg, With package1.6kg
Dimensions:	144×100×70mm
