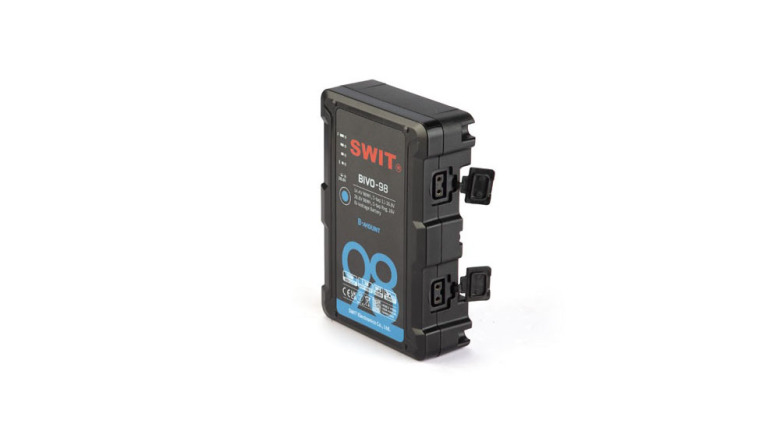

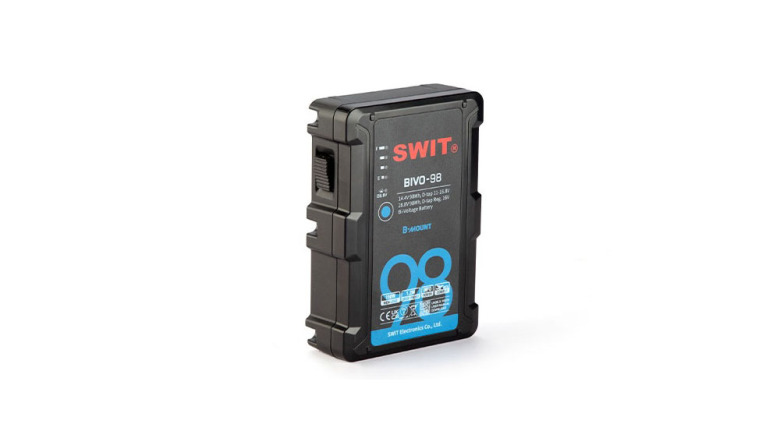

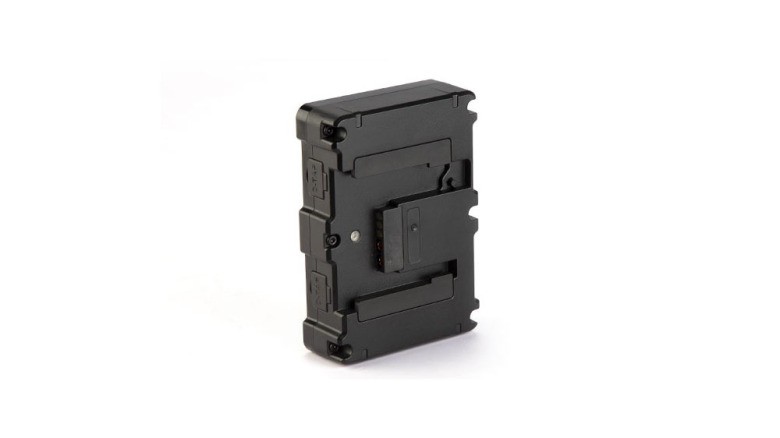

SWIT BIVO-98 98Wh 14V/28V High Load B-Mount Battery

Description

SWIT BIVO-98 98Wh 14V/28V High Load B-Mount Battery

BIVO-98 is a 14.4V(11-16.8V) and 28.8V (22-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears. The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.

Key Features

- 14.4V/28.8V Bi-voltage B-mount
- 98Wh fly-friendly capacity
- 150W constant high load
- D-tap 11-16.8V output ×2
- LED power & voltage indicators
- Built-in LED torch
- Strong 1.2m drop off proof
- Multiple circuit protections

Included items

Included items:
- BIVO-98 98Wh Bi-voltage B-mount Battery Pack

Specification

Specification:

Voltage:	28.8V (21.6-33.6V) & 14.4V (10.8-16.8V)
Capacity:	98Wh
Constant load:	(28.8V) 150W, 6A/(14.4V) 150W, 12A
Charging:	33.6V 44W fast charging
Mount Type:	B-mount, D-tap ×2
14.4V status:	10.8-16.8V out, 150W load
28.8V status:	16V regulated out, 50W load
Charging Temperature:	0-40degr.C
Discharging Temperature:	-20degr.C-50degr.C (Capacity and Max Load may decrease when operating below 0degr.)
Net weight:	Approx 668g
Dimensions:	144×100×38mm
