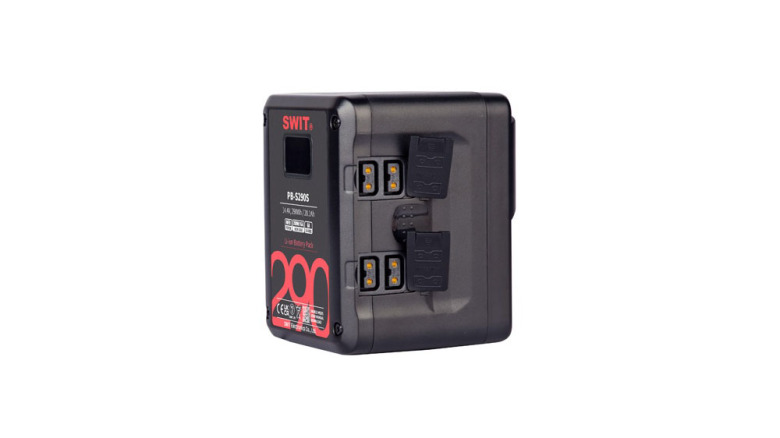

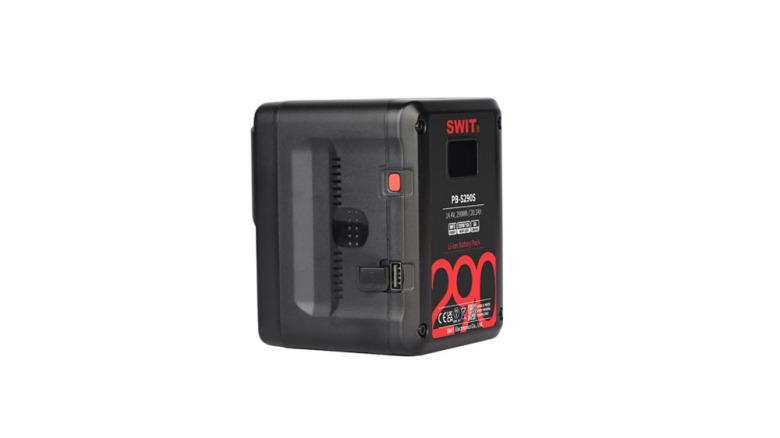

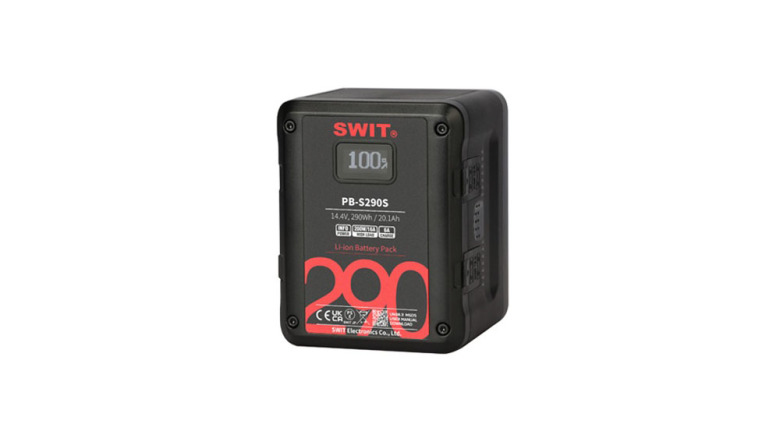

SWIT PB-S290S 290Wh Multi-sockets Digital Battery, V-Mount

Swit
Partno: SWT-PB-S290S
Stock status: Ships in 5-8 days
SEK 5806

Description

SWIT PB-S290S 290Wh Multi-sockets Digital Battery, V-Mount

Square shape design for Cine-cameras
PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.

Key Features

- Square shape design for Cine-cameras
- 290Wh, 20.1Ah large capacity
- At least 200W, 16A constant load
- 4× D-tap output sockets
- 1× USB 5V/2A power output sockets
- 100W 6A super fast charging
- OLED display accurate remaining run time
- Display power info in both SONY & RED
- Multiple circuit protections
-

Included items

  • Included items:
    - PB-S290S 290Wh Multi-sockets Digital Battery Pack

Specification

  • Specification:
    Model:   PB-S290S

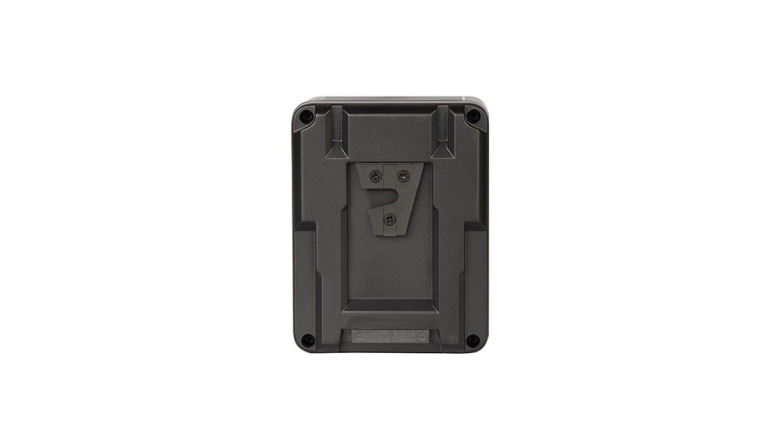

    Battery plate:   V-mount
    Nominal voltage:   14.4V
    Capacity:   290Wh, 20.1Ah
    Max output
    In total:   200W
    Electrodes:   200W,16A
    USB:10W, 5V/2A
    D-tap:   120W / 10A
    Dimension:   121×95×96mm
    Charging Temperature:   0-40degr.C
    Discharging Temperature:   -20degr.C-50degr.C (Capacity and Max Load may decrease when operating below 0degr.)
    Net weight:   1.44kg
    Max charging current:   6A
    D-TAP socket number:   4
    USB socket number:   1
