Compact Camera with CS Mount - 3G-SDI

Compact Camera with CS Mount - 3G/HD-SDI

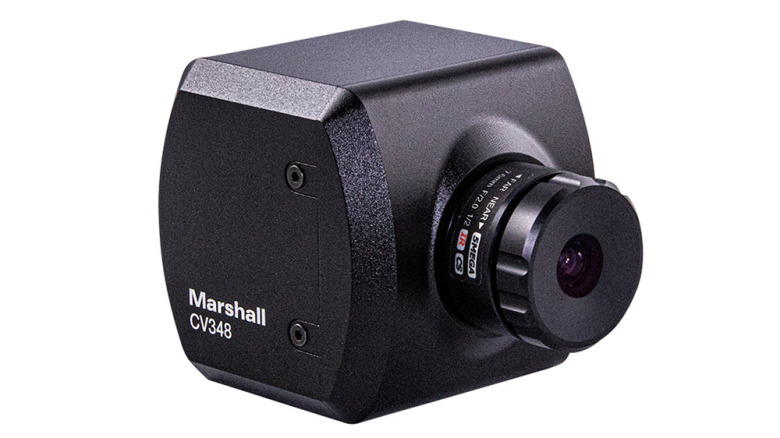

The Marshall CV348 POV Camera is built around a next generation Sony sensor with over 2.2 million pixels, larger pixel size and square pixel array. CV348 delivers exceptional 10 bit 4:2:2 color video performance (BT.709) from a durable aluminum alloy body, flexible CS lens mount and rear connection protection wings. The new Sony sensors offer rich color accurate video with improved low light sensitivity and refined remote adjust and match capability. Choose full HD resolutions up to 1080p (progressive), 720p (progressive) and 1080i (interlaced) with a wide selection of framerates available in 23.98, 24, 25, 29.97, 30, 50, 59.94, 60fps serving a variety of Broadcast and proAV applications worldwide.

Key Features
- 2.2 Megapixel (1/2.8") 16:9 HD color performance

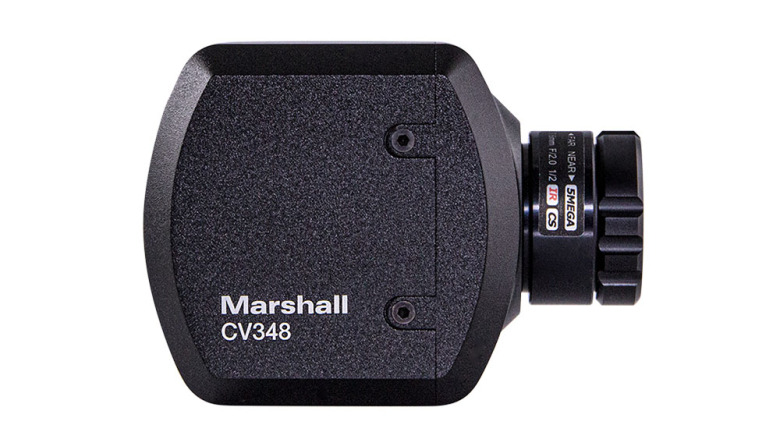

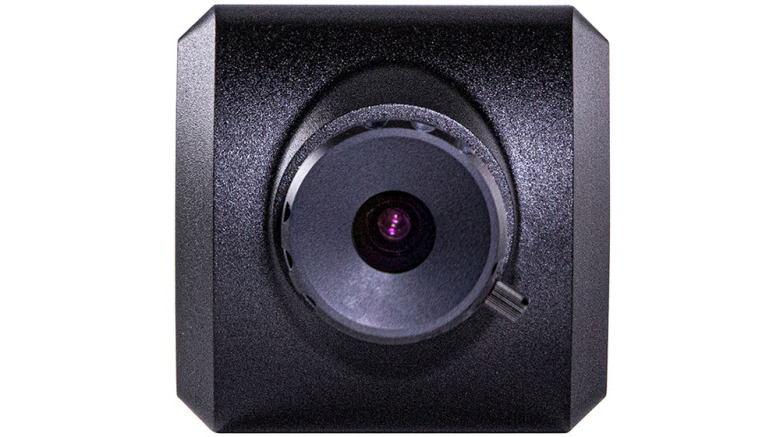

- Durable Body with CS/C lens mount (lens sold separately)
- 3GSDI (BT.709, 4.2.2, 10bit) + HDMI simultaneous outputs
- Interlaced/Progressive Resolutions: 1920x1080p, 1920x1080i and 1280x720p
- Framerates Supported in all formats: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
- Remote adjust & match via Camera Control Software, CV-RCP-V2 (CCU) or 3rd party
- Micro-USB port for firmware upgrades in the field (downloadable from website)

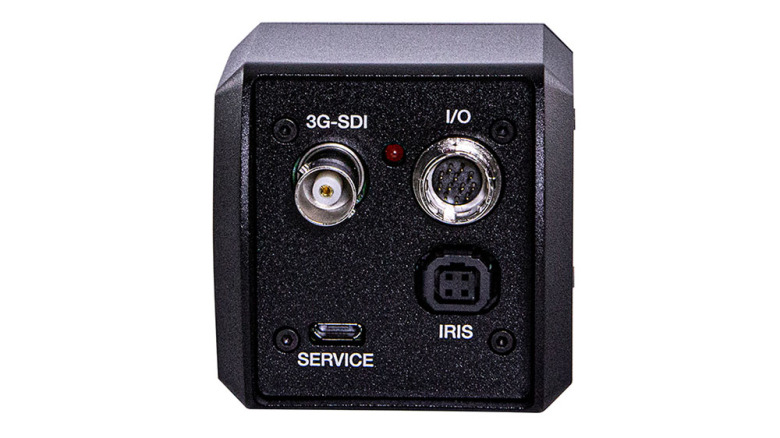

- Locking Hirose Cable: Genlock (I/O), RS485 control, Audio (stereo) and 12V Power
- Power Draw: 3.8W (12V) with wide 7~15V range for alternative power sources
