12in Pioneer Jib Teleprompter

Partno: AC-P7008-0904
Stock status: Ships in 5-8 days
SEK 55974

Description

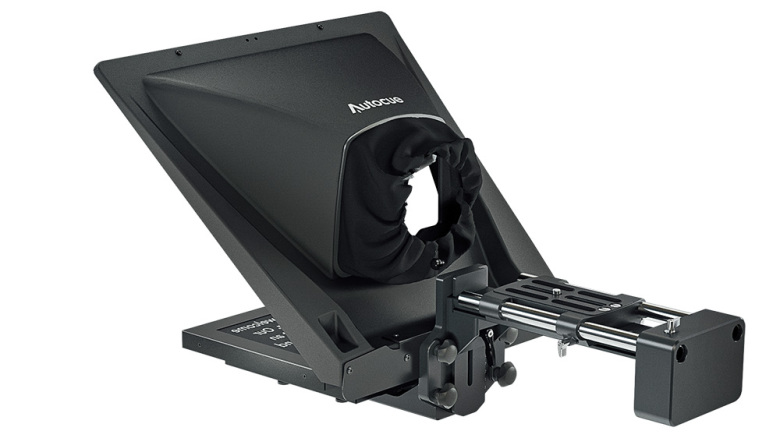

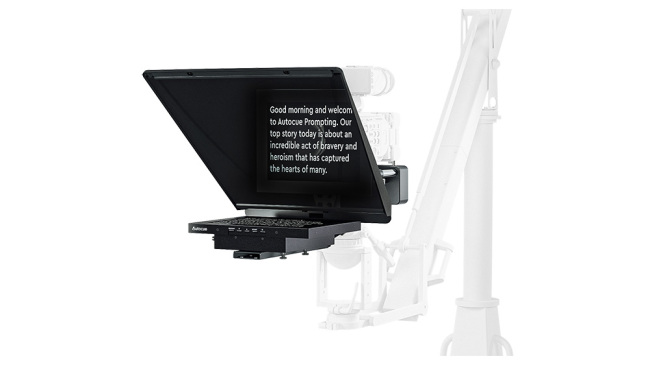

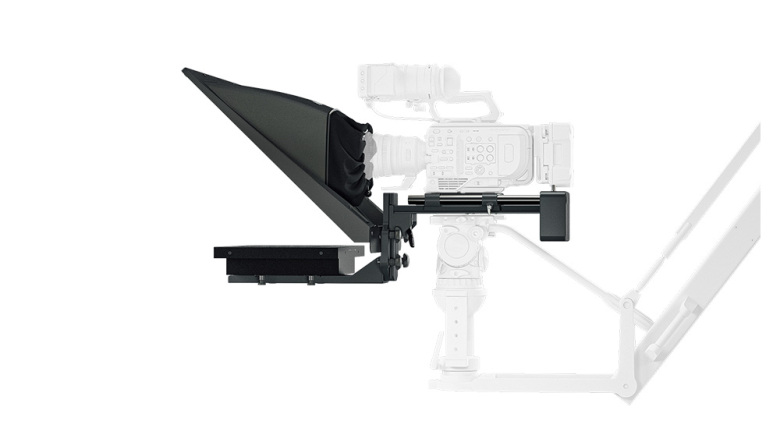

12" Pioneer Jib Teleprompter

When your camera support is demanding, Autocue has options. The 12" Pioneer Jib Teleprompter is the smallest Autocue teleprompter package with a composite hood. This keeps it lightweight for low-capacity support and stable during the higher speed moves you might want from a jib.

Pioneer Series packages include Autocue?s highest spec monitors with a brightness that will out-perform any lighting situation to keep your presenter on-script. Like all Autocue monitors they have a strong but lightweight metal housing ready to take years of hard work. Autocue selected a 12" monitor with aluminium casing for this system to keep the weight down and you can expect around a 4.5m/15? max reading range. HD-SDI, CVBS, VGA, and HDMI inputs make sure the prompter will integrate whether you have a single PC or a full broadcast facility.

The Pioneer Series Jib Teleprompter has Autocue?s medium hood which allows for all but the widest angle lenses and weighs less than its larger sibling. The hood is made of a lightweight composite and holds Autocue 70:30 beamsplitter glass that clearly displays the text to the presenter while keeping it invisible to the camera.

Included items

  • Included items:
    - Monitor
    - PSU
    - Mounting rail with bracket set
    - Camera carriage
    - Monitor spine
    - Medium hood
    - Beamsplitter glass
    - 19mm rod set
    - 5kg counterweight
    - HDMI cable, 10m
    - UK/EU or US IEC power cable

Specification

  • Specification:
    Display Size:12"
    Aspect Ratio:4:3
    Brightness:1500Nits
    Contrast:1000:1
    Resolution:1024x768
    Connectivity:3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA
    Image Flip:Horizontal and vertical
    Input Voltage:12V DC
    Aux. Output:12V DC, 3A max.
    Power Consumption:25W max.
    Power Supply:110-240V AC 50/60Hz input, 12V DC, 5A max. output
    Hood:Medium composite hood with collapsible fabric lens seal
    Rail Fixings:3/8"-16, with optional 1/4"-20 inserts
    Camera Carriage: Camera fixings 2x 3/8"-16, 1/4"-20, Rod fixing 2x 19mm rod fixings (studio standard 104mm pitch)
    Camera base to lens centre height supported:50-140mm (2-5.5")
    Monitor mounting:VESA100 with additional 3-8"-16 camera support fixings
    Counterweight mounting rods:2x 19mm dia.
    Counterweight:1x 5kg (11lbs)
    Monitor Dimensions:307 x 245 x 56mm (12.1 x 9.6 x 2.2")
    Monitor Weight:1.3kg (2.9lbs)
    System Dimensions:503 x 420 x 729mm (19.8 x 16.5 x 28.7")
    System weight: 8.1kg (17.9lbs) [excluding counterweight]
