19in Pioneer Studio Box Lens Teleprompter

Partno: AC-P7008-0900
Stock status: Ships in 5-8 days
SEK 69352

Description

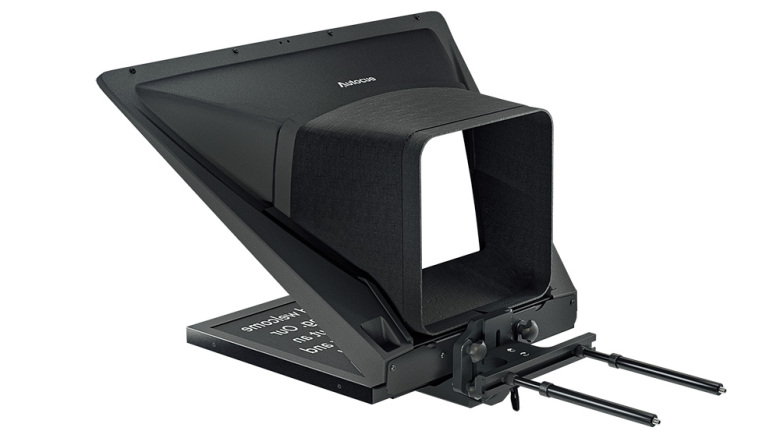

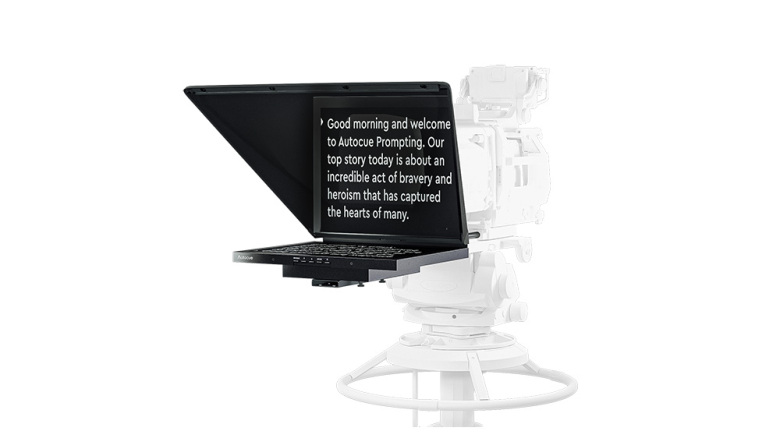

19" Pioneer Studio Box Lens Teleprompter

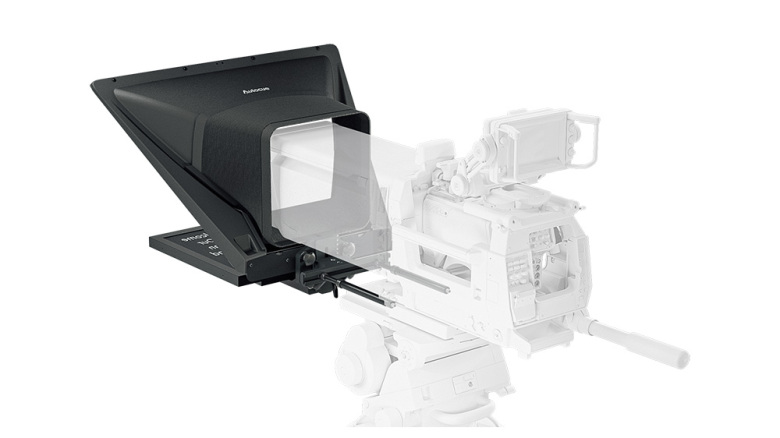

Designed to work with heavyweight camera setups, the Autocue 19" Pioneer Studio Box Lens Teleprompter includes two important differences to standard Autocue Pioneer prompter systems. The first is a bigger opening in the hood. This is large enough to fit any box lens and surrounded by black cloth that wraps the lens to prevent light from getting in around it. The second difference is the use of telescopic rods to mount the prompter system to the front of a heavy-duty pan and tilt head with mounting threads (rather than a mounting kit that sits under the camera). Installing a prompter like this means you don?t have to move a heavy camera/lens during setup and helps you to stay friendly with the camera operators.

Pioneer Series packages include Autocue?s highest spec monitors with a brightness that will out-perform any lighting situation to keep your presenter on-script. Like all Autocue monitors they have a strong metal housing ready to take years of hard work. With 3G-SDI, CVBS, VGA, and HDMI inputs to choose from you can be sure the prompter will integrate whether you have a single PC or a full broadcast facility.

The Pioneer Studio Box Lens Teleprompter comes with Autocue?s largest hood to ensure there?s no chance of unwanted vignetting, at even the widest angle. The hood is made of a lightweight composite and holds Autocue 70:30 beamsplitter glass that clearly displays the text to the presenter while keeping it invisible to the camera. If you need to show even more information to your presenter, Autocue offers accessories for tally, time and talent feedback.

Included items

  • Included items:
    - Monitor
    - PSU
    - Studio lens hood assembly
    - Mounting bracket
    - Monitor spine
    - Telescopic rods
    - Beamsplitter glass
    - HDMI cable, 10m
    - UK/EU or US IEC power cable

Specification

  • Specification:
    Display Size:19"
    Aspect Ratio:4:3
    Brightness:1500Nits
    Contrast:1000:1
    Resolution:1280x1024
    Connectivity:3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA
    Image Flip:Horizontal and vertical
    Input Voltage:12V DC
    Aux. Output:12V DC, 3A max.
    Power Consumption:35W max.
    Power Supply:110-240V AC 50/60Hz input, 12V DC, 5A max. output
    Hood:Studio box lens composite hood with fabric lens surround
    Vertical adjustment range:90mm (3.5")
    Telescopic rod adjustment range:235mm (9.3")
    Monitor mounting:VESA100
    Monitor Dimensions:420 x 356 x 57mm (16.5 x 14 x 2.2")
    Monitor Weight:4.4kg (9.7lbs)
    System Dimensions:675 x 455 x 813mm (26.6 x 17.9 x 32")
    System weight: 11.8kg (26lbs)
