19in Pioneer Studio Teleprompter

Partno: AC-P7008-0901
Stock status: Ships in 5-8 days
SEK 66920

Description

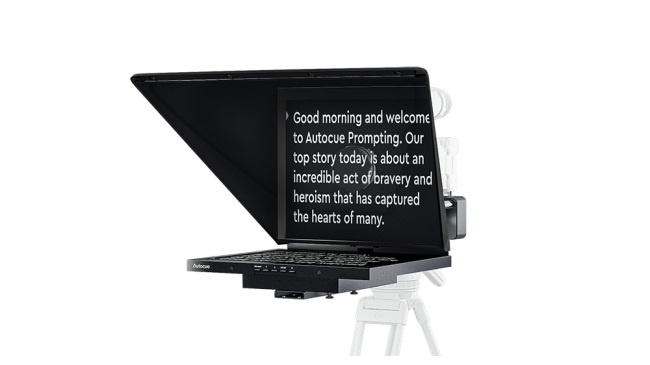

19" Pioneer Studio Teleprompter

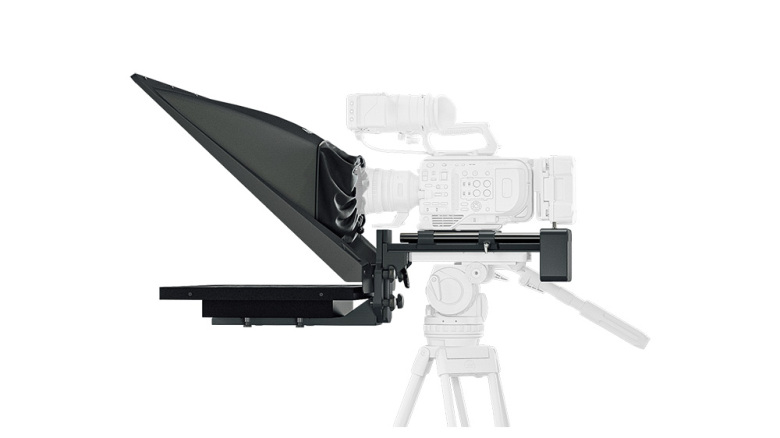

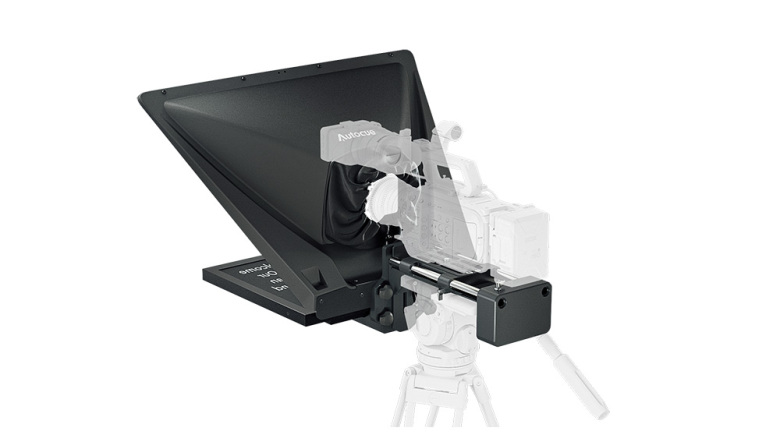

The Autocue 19" Pioneer Studio Teleprompter is a great choice for broadcast style studios that aren?t using box lenses (Autocue has a 19" Studio Box Lens Teleprompter if you are). Its adjustable mounting kit makes sure that setup goes smoothly with simple tuning of the hood height so that the lens is always in the middle of the glass, and a counterweight included to centre the load of the prompter on the tripod or pedestal.

Pioneer Series packages include Autocue?s highest spec monitors with a brightness that will out-perform any lighting situation to keep your presenter on-script. Like all Autocue monitors they have a strong metal housing ready to take years of hard work. With HD-SDI, CVBS, VGA, and HDMI inputs to choose from you can be sure the prompter will integrate whether you have a single PC or a full broadcast facility.

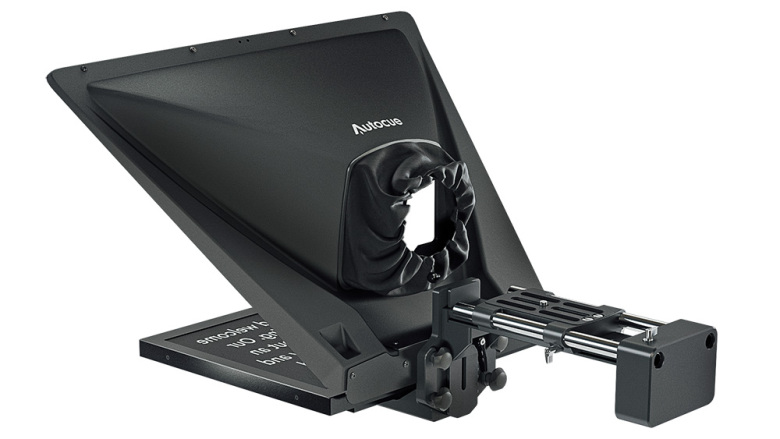

The Pioneer Studio Teleprompter comes with Autocue?s largest hood to ensure there?s no chance of unwanted vignetting, at even the widest angle. The hood is made of a lightweight composite and holds Autocue 70:30 beamsplitter glass that clearly displays the text to the presenter while keeping it invisible to the camera. If you need to show even more info to your presenter, Autocue offers accessories for tally, time and talent feedback.

Included items

  • Included items:
    - Monitor
    - PSU
    - Mounting rail with bracket set
    - Camera carriage
    - Monitor spine
    - Large hood
    - Beamsplitter glass
    - 19mm rod set
    - 5kg counterweight
    - HDMI cable, 10m
    - UK/EU or US IEC power cable

Specification

  • Specification:
    Display Size:19"
    Aspect Ratio:4:3
    Brightness:1500Nits
    Contrast:1000:1
    Resolution:1280x1024
    Connectivity:3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA
    Image Flip:Horizontal and vertical
    Input Voltage:12V DC
    Aux. Output:12V DC, 3A max.
    Power Consumption:35W max.
    Power Supply:110-240V AC 50/60Hz input, 12V DC, 5A max. output
    Hood:Large (wide angle) composite hood with collapsible fabric lens seal
    Rail Fixings:3/8"-16, with optional 1/4"-20 inserts
    Camera Carriage: Camera fixings 2x 3/8"-16, 1/4"-20, Rod fixing 2x 19mm rod fixings (studio standard 104mm pitch)
    Camera base to lens centre height supported:50-140mm (2-5.5")
    Monitor mounting:VESA100 with additional 3-8"-16 camera support fixings
    Counterweight mounting rods:2x 19mm dia.
    Counterweight:1x 5kg (11lbs)
    Monitor Dimensions:420 x 356 x 57mm (16.5 x 14 x 2.2")
    Monitor Weight:4.4kg (9.7lbs)
    System Dimensions:675 x 455 x 765mm (26.6 x 17.9 x 32")
    System weight: 11.9kg (26.2lbs) [excluding counterweight]
