Sidus Four
Description
Aputure Sidus Four
With support of up to four CRMX universes and four wired DMX universes, Sidus Four can transmit up to eight DMX universes at the same time. Sidus Four’s networking protocol options are vast, featuring support for CRMX, DMX, Art-Net and sACN over EtherCon, and Sidus Bluetooth.
With the ability to link multiple Sidus Fours together via Ethernet, there’s virtually no cap on the number of universes you can control. Whether you’re managing a small-scale production or a massive event venue, Sidus Four grows effortlessly with your needs. Expand from four universes to eight, sixteen, or beyond.
Sidus Four features a large, clear, color-coded TFT display that instantly informs user of the entire lighting network’s status, making system setup and troubleshooting quick and intuitive. With a TFT panel, users will not have to worry about panel burn-in, an issue prevalent in other types of display panels like OLED and LCD.
Sidus Four comes prepared with an IP65 dust and water resistant rating for the ultimate worry-free lighting networking experience. No matter where you are, Sidus Four is at the ready to serve as your lighting network’s anchor.
This makes Sidus Four the most durable and protected multi-universe CRMX transmitter on the market as other transmitters only have IP20 ratings.
As redundancies to its AC power input, Sidus Four is equipped with a V-mount battery plate and an 80-minute internal backup battery to ensure your lighting network does not go down due to power loss.
Sidus Four has the longest running backup battery in the market and is one of the only transmitters that has a built-in V-Mount battery plate.
Key Features
- Support for CRMX, DMX, Art-Net and sACN over EtherCon, and Sidus Bluetooth.
- Transmit up to eight DMX universes at the same time, four CRMX universes and four wired DMX universes.
- Ability to link multiple Sidus Fours together via Ethernet
- Wireless range: CRMX: ≤300m , Bluetooth: ≤300m, Wi-Fi: ≤800m
- V-Mount Battery Plate (12-16.8V)
- Internal Backup Battery with 80 min life
- IP65 dust and water resistant

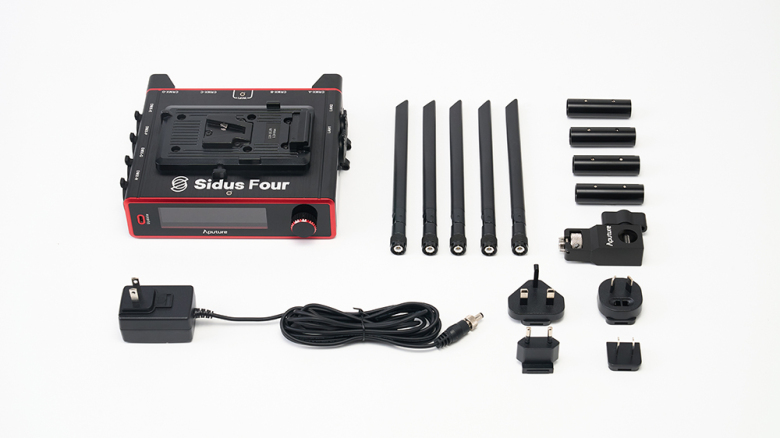

Included items
- Included items:
- Sidus Four
- Dual Band Antenna
- 3/8” to Baby Pin Receiver Adapter
- Sidus Four 18W (9V) Power Adapter
- 5-Pin XLR Male to 5-Pin XLR Male Adapter

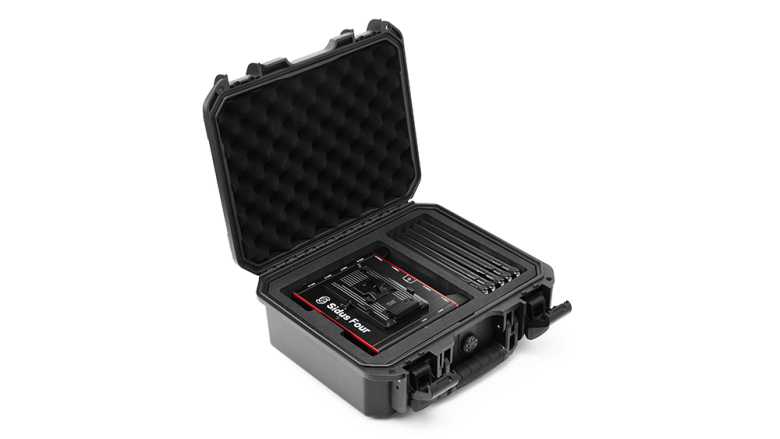

- Sidus Four Hard Case
Specification
- Specification:
Connectivity: CRMX, DMX512, Art-Net & sACN via Ethernet and Wifi Universe Support: 4 Wireless Universes & 4 Wired Universes Ethernet Connectivity: 2x RJ45 Ports at 100Mbps Each DMX Connectivity: 4x XLR 5-Pin DMX Bidirectional Female Ports Wi-Fi Operating Frequency: 5.8GHz at 150Mbps CRMX / Sidus BT Operating Frequency: 2.4GHz Bluetooth Wireless Range: ≤300m / ≤984ft Wi-Fi Wireless Range: ≤800m / ≤2,625ft CRMX Wireless Range: ≤800m / ≤2,625ft Wi-Fi Modes: AP mode/STA mode CRMX Mode: TX mode AC Adapter Operating Voltage: AC In: 100-240V DCOut:9V/18W DC Jack: 5.5/2.5mm DC Barrel Jack (9-24V) (3m) V-Mount V-Mount Battery Plate: (12-16.8V) Lithium Polymer Battery: 3.7V 1500mAH Backup Battery Life: 80 min Power Consumption: 17W Max, 6W Normal (W/O: Charging, Type-C Output) Charge Time: 30 min IP Rating: IP65 Operating Temperature: -20°C to 55°C / -4°F to 131°F Firmware Upgradeable: Sidus BT, USB-C, Sidus Link Pro Wifi Cooling Method: Passive Cooling Dimensions (excluding antenna): 18.7 x 18.6 x 6.9cm / 7.4 x 7.3 x 2.7in Weight: 1.40kg / 8.82lbs
