Audio Breakout AB-9 (Blackmagic PYXIS)

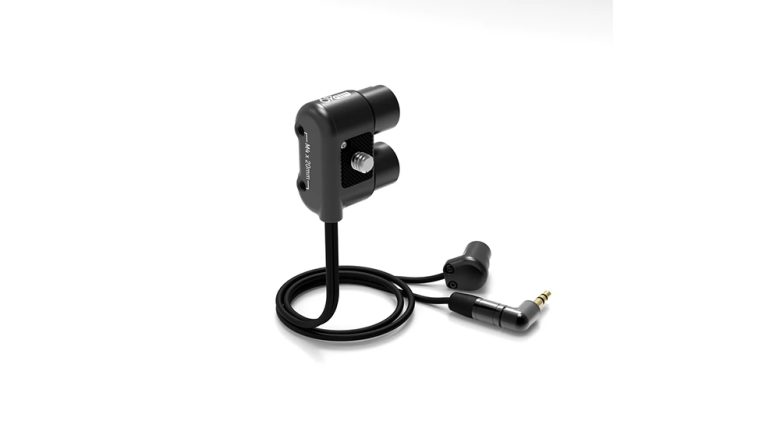

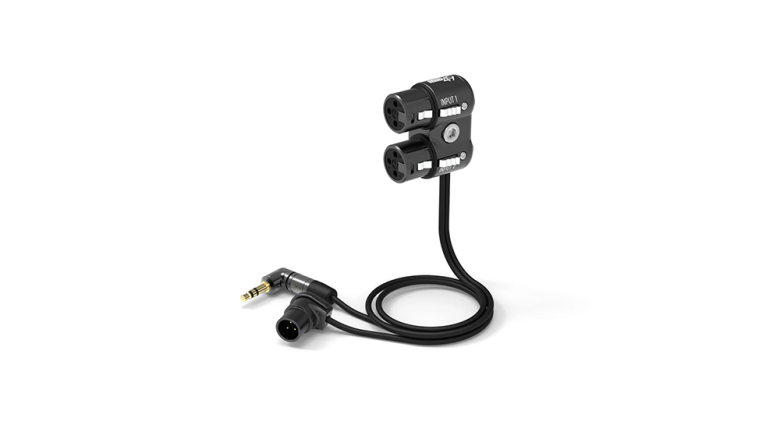

Audio Breakout Audio Breakout AB-9 (Blackmagic PYXIS) is a passive adapter that converts the camera's front mini XLR and rear 3.5mm TRS plug into two standard, full-size XLRs.
Input 1 - balanced audio with phantom power via camera menu
Input 2 - unbalanced audio, no phantom power available
Attaches by a captive 1/4-20 screw and rubber pad to the camera body or Side Plate (Blackmagic PYXIS).
Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-9 to attach using a 3/8-16 screw with ARRI locating pins.
Attaches easily to rods using the Single 15mm Rod Clamp or Single 19mm Rod Clamp (sold separately).
9.5 inch (24 cm) cable length with custom low profile mini XLR connector and Neutrik 3.5mm TRS.
