Battery Slide Pro V-Mount (RED Komodo)

Battery Slide Pro V-Mount (RED Komodo)

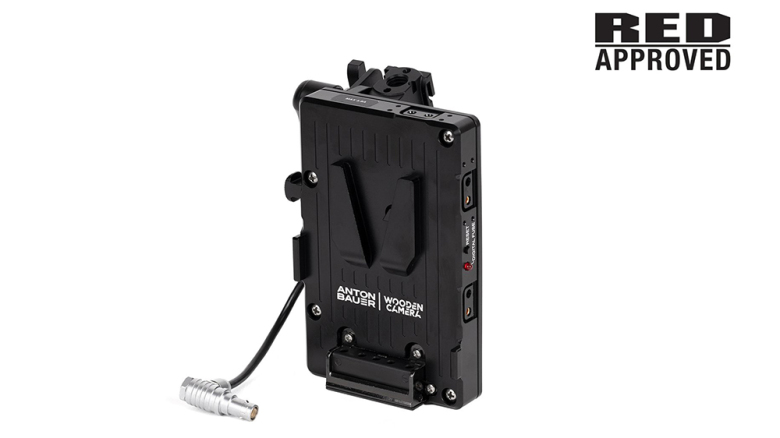

Battery Slide Pro V-Mount (RED® KOMODO™) attaches to the camera-left, BP-9 battery slot and powers the camera using a right angle LEMO compatible connector. Thumbscrew can be loosened to tilt and slide the plate as needed.

Three D-Taps on the plate provide battery voltage for accessories and power is monitored for over-current. If more than 5.8A are used by accessories, a digital fuse will trip and the red LED will illuminate but the camera will remain powered. Reset button can be pressed once to restart accessory power.

DC Input on camera-right side can be used for hot-swapping between block battery and on-board battery. While the AC adapter that comes with the KOMODO can be used, please note that it may not be powerful enough to sustain the camera and accessory draw.

If hot-swapping between Gold Mount battery and BP-955 battery is desired, please consider Battery Slide Extension for Canon BP-955 Hot Swap (RED KOMODO) which moves the battery plate further back from the camera body.
