Blackmagic PYXIS Monitor EVF Kit

Blackmagic PYXIS Monitor EVF Kit

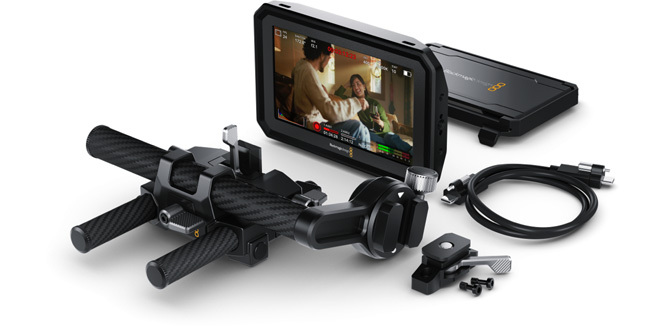

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor EVF Kit contains the monitor, foldable sunshade, locking USB cable, PYXIS Mounts and URSA Cine EVF mounts to attach the monitor to Blackmagic PYXIS and Blackmagic URSA Cine cameras. Blackmagic PYXIS Monitor EVF Kit includes everything needed to use the PYXIS Monitor as en electronic viewfinder.

Mounting Points
1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.
2 x M4 bottom mounting points.
1 x 1/4-20 side mounting point with ARRI locating pin pattern.
2 x M4 side mounting points.

Mounting Brackets
Blackmagic PYXIS Monitor Swivel Mount ‑ included in EVF Kit.
Blackmagic PYXIS Monitor Fixed Mount ‑ included in EVF Kit.
Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in EVF Kit.
Blackmagic URSA Cine EVF Bracket ‑ included in EVF Kit.

Compatible Cameras
Blackmagic PYXIS 6K
Blackmagic PYXIS 6K PL
Blackmagic PYXIS 6K EF
Blackmagic URSA Cine 12K LF
Blackmagic URSA Cine 17K 65
