Camera Compact with CS Mount - Global Shutter, 3G-SDI, HDMI
1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080i @ 50, 59.94 & 60 / 1280x720p @ 50, 59.94 & 60
Key Features
Global shutter 1.1/8″ Sony sensor with 25% larger pixels
Genlock tri-level sync for broadcast integration
CS Mount for interchangeable lenses
Auto-iris function with compatible lenses
3G-SDI & HDMI video output connectors
1920×1080 up-to 60P
I/O breakout cable with control joystick
3.5mm audio input
Product Overview

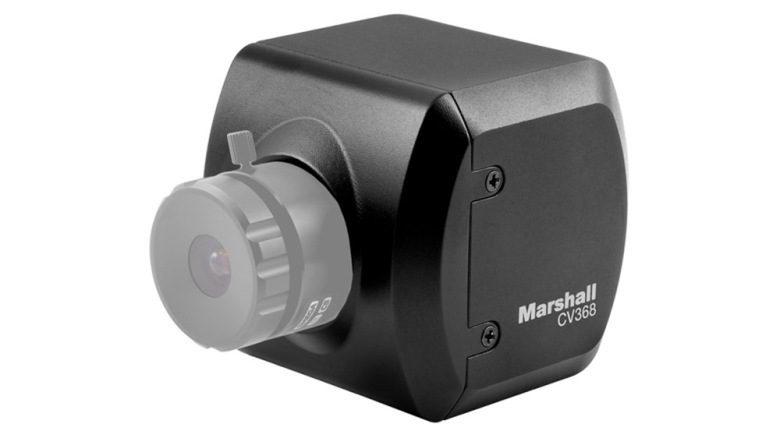

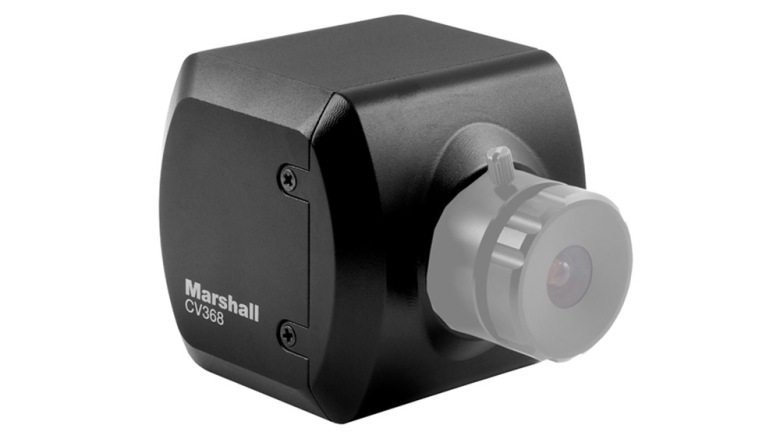

CV368 is Marshall’s premier Compact camera, featuring a Sony global shutter sensor and Genlock tri-level sync. These features allow CV368 to integrate directly with broadcast workflows and provide the highest-quality images from any Marshall Compact camera.
The 1/1.8″ global shutter sensor from Sony delivers perfect, anomaly-free images – with the camera capturing every single frame across the entire sensor simultaneously. In addition, CV368’s sensor features 25% larger pixels – to deliver cleaner images, especially in low-light.
Genlock tri-level sync enables CV368 to integrate with broadcast environments, allowing multiple cameras of any brand to synchronise together seamlessly.

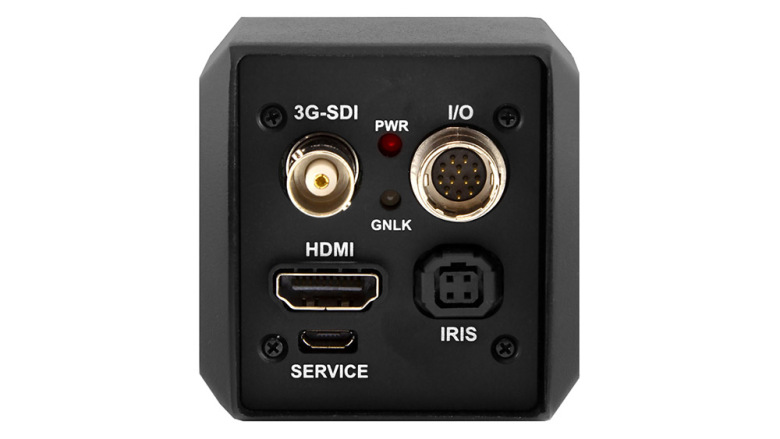

Dual 3G-SDI & HDMI outputs deliver 1920x1080p, 1920x1080i & 1280x720p images at up-to 60 frames per second. Further camera inputs & outputs are available through the included breakout cable, including external 3.5mm microphone input.
A wide selection of CS Mount lenses are available, allowing users to select the perfect lens for any scenario.
CV368 is a durable and professional Compact camera with use-cases including sports broadcast, reality television & live stream events.
