Camera Mini with 4mm lens HD - 3G-SDI/HDMI

Camera Mini with 4mm lens HD - 3G-SDI/HDMI

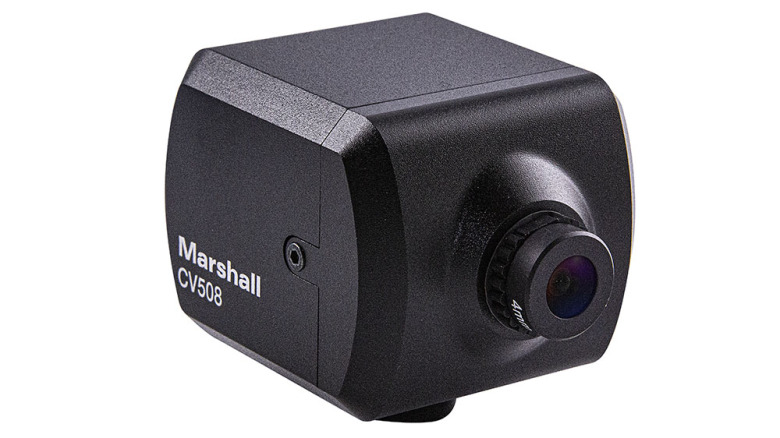

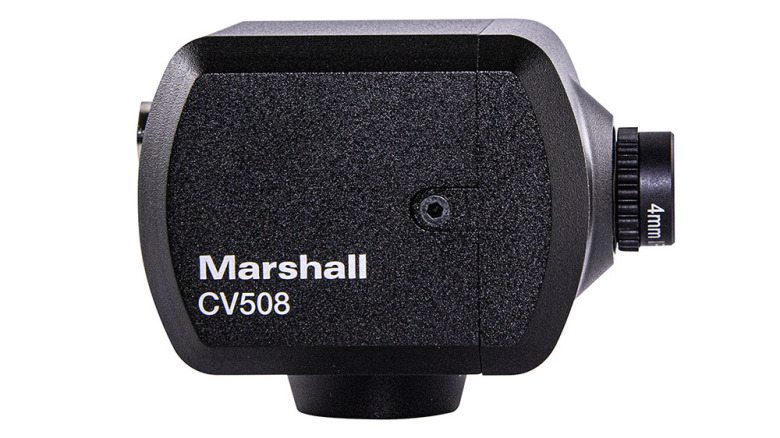

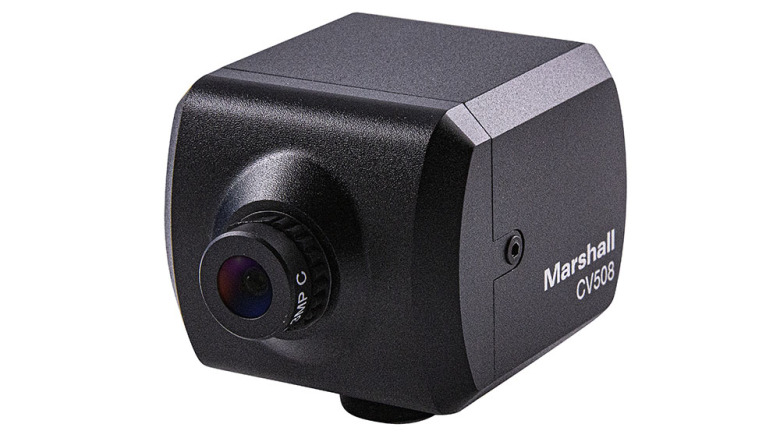

The Marshall CV508 Full-HD Miniature Camera with HDMI offers performance, flexibility, and value in a tiny form factor. Built around a next generation 2.2-Megapixel, 1/2.8-inch sensor, the CV508 delivers ultra-crisp, clear, Full-HD video in both interlaced and progressive modes at up to 60/59/50fps.

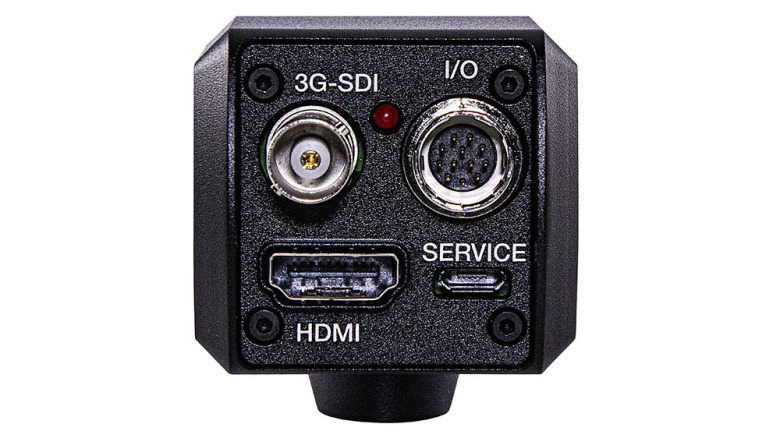

The CV508 utilises full-sized BNC (3G/HDSDI) and HDMI outputs on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV508's threaded M12 lens mount offers a wide range of prime and varifocal lens options.

The CV508 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.

Key Features

- Ultra-compact camera measuring just 40mm x 44mm x 45mm
- M12 interchangeable lens mount
- 4.0mm M12 lens included
- 3G-SDI & HDMI video output connectors
- 1/2.8? 2.2 megapixel sensor
- 1920×1080 up-to 60P
- I/O breakout cable with control joystick
- 3.5mm audio input
