Description
FREEFLY WEDGE COMPATIBLE

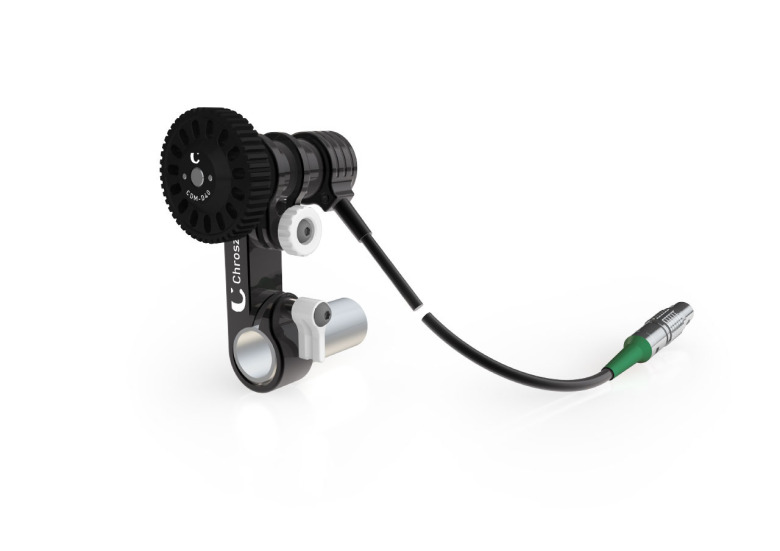

With the new Digital Motor CDM-100, Chrosziel developed an extremely light weight, silent, small and horizontally aligned lens motor. It perfectly suites Gimbal, Drone and SteadiCam applications.
Features Digital Motor CDM-100:
• Perfect for Gimbals, Drones and SteadiCam
• Horizontally aligned
• Extremely light weight
• Extremely silent
• Very small and short housing
• Motor housing with standard 19mm diameter
• Smart gear attachement for secure operation and fast exchange

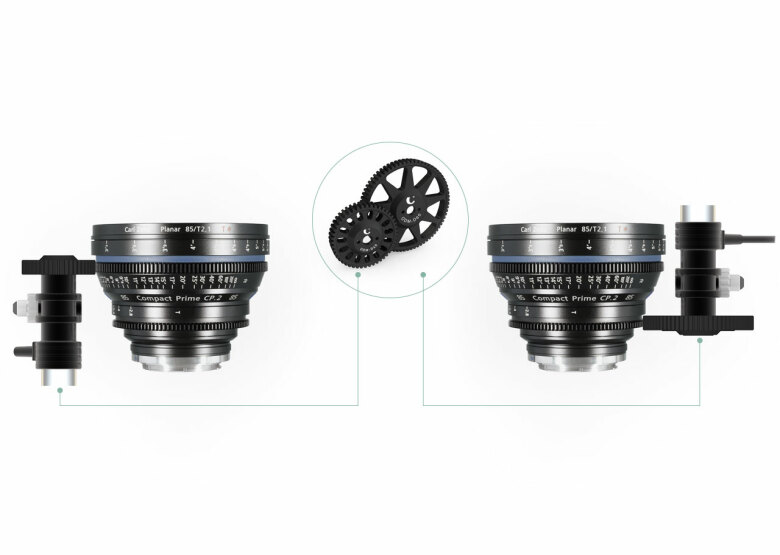

• Two gear diameters, even for large lens pitches
• Fixed motor cable additionally reducing motor size and weight
• New, Universal Rod Clamp with integrated captive slider – quickly and easily adjustable for use with Ø 15mm or Ø 19mm rods
Technical details:
• Dimensions: L 62mm, Ø 19 mm (max. Ø 25mm – without gear)
• Weight without clamp, incl. cable/connector: 83 g without gear, ca. 94 g with small gear
• Weight with clamp, incl. cable/connector: 126 g
• Voltage: max. 12 V
• Torque: max. 0.5 Nm
• Cable length: 700mm
• Connector Lemo (Freefly Wedge - compatible)
• Gear diameter Ø 40mm & Ø 60mm with mod 0.8 (other upon request)
• 15mm / 19mm Universal Rod Clamp
