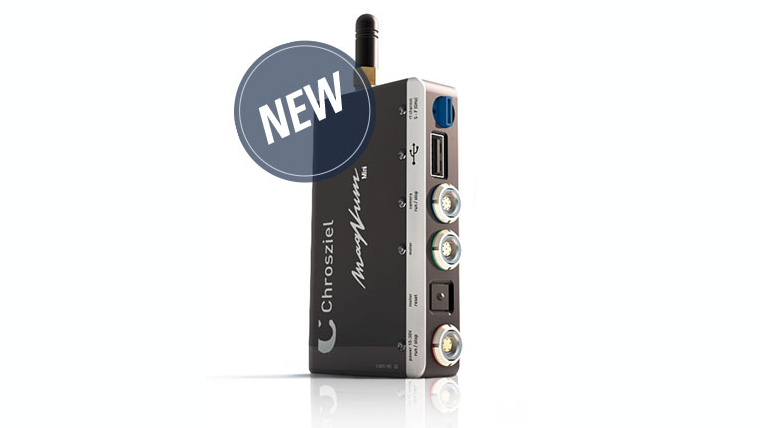

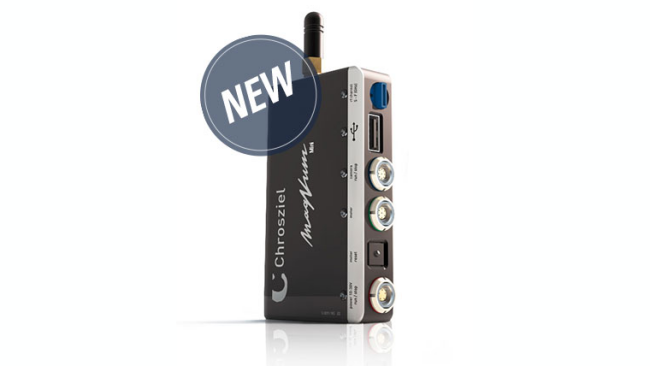

Chrosziel MagNum Mini Receiver/Motor Controller, 2.4 GHz with antenna

Dimension: 91 x 53 x 19 mm (3.58 x 2.09 x 0.75 in.)
Weight: 120 g (4.23 oz)
Power: 10-30 V, max. 2 A
Connectors:
• Motor Lemo 0B 7-Pin
• Power with Cam Run / Stop Lemo 0B 5-Pin
• Cam Run / Stop Lemo 0B 9-Pin
• Standard USB-Interface
Screw Threads: 4 x 1/4“ 20
Status LEDs: Motor, Power, Cam Run / Stop, USB, RF signal
RF Channel Selector: 11 x 2.4 GHz Range Channels 5 - F
RF Transmission Distance: + 100 m (330 ft), depending on environment

The Chrosziel MagNum Mini is compatible with the Chrosziel Digital
Motor CDM-100S as well as all major digital lens motors. It can be
controlled by the Chrosziel MagNum Hand Unit MN-100T, MN-150T
and MN-200T.

Please see the brochure for more information.
